C4-C5XL MK3 O&S
2-8
C4000MK3-OM-EN-11
Red
Red
Green

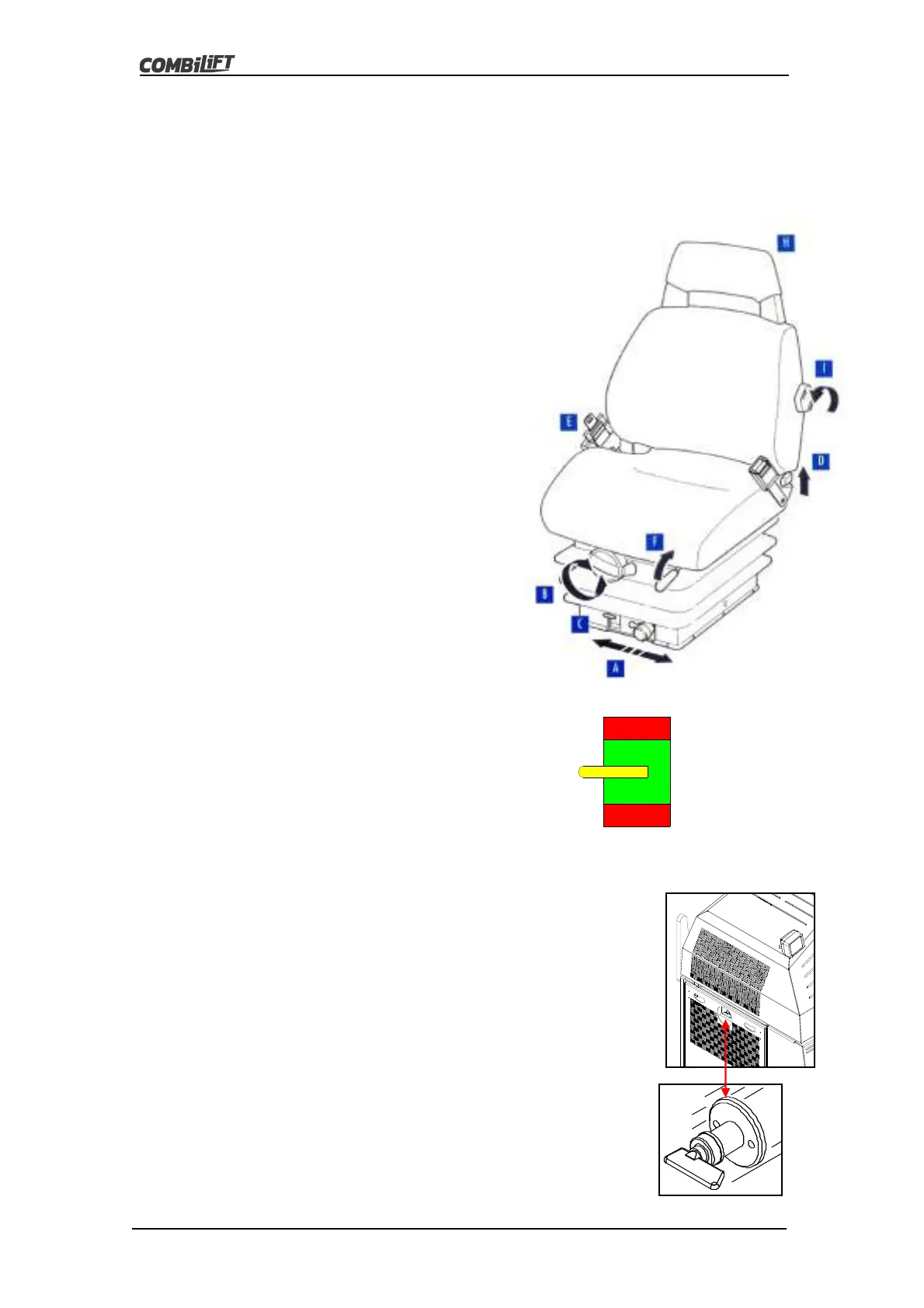

Seat Adjustment
It is the responsibility of the Operator to ensure that
the seat is adjusted according to operator weight,
height etc before operating the truck.
ALWAYS report any malfunctioning of the seat
adjustments immediately.
ALWAYS wear the seat belt provided.
DO NOT adjust the seat when vehicle is in operation.
Keep clear of moving parts.
Authorised & competent personnel should carry out
Installation & Maintenance only
A Upstop Adjustment
B Height Adjustment – Depending on operator
weight, rotate knob clockwise, to increase, and
anti-clockwise to reduce suspension stiffness.
C Using the height adjustment knob ‘B’, adjust
the yellow ride indicator ‘C’ to the middle of the
green area when seated.
D Backrest angle adjustment
E Seat belt
F Horizontal Adjustment (Slide rails)
H Backrest Extension
I Lumbar Support adjustment (5 positions)
Battery Isolator Key Switch
This switch is used to disconnect power from the
battery in the event of an emergency.
The switch is located inside the access panel on the
right hand side of the Combilift. (See diagram below)
It can be accessed without removing the panel
through the access hole provided
When the Combilift is not in use turn switch to ‘OFF’
position, by turning switch ANTI-CLOCKWISE.
The Combilift will not start unless the switch is
returned to the ‘ON’ position, by turning the switch
CLOCKWISE
