C4-C5XL MK3 O&S
2-7
C4000MK3-OM-EN-11

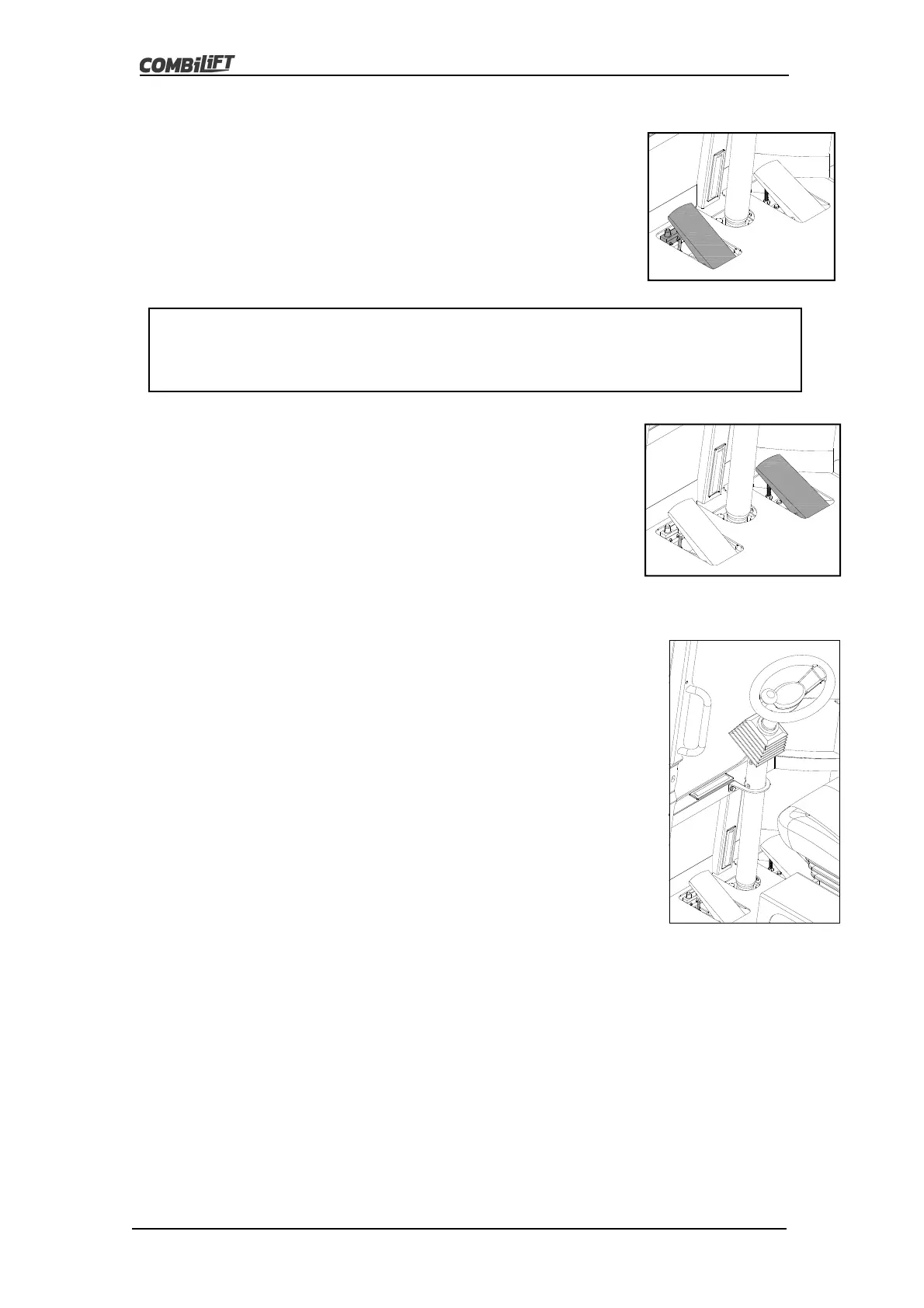

Inch / Brake Pedal
The Inch / Brake pedal is the pedal on the floor on the
left hand side of the steering Column as shown in the
diagram opposite.
The combined Brake/Inching Pedal has two functions:
Stops drive to slow the machine down.
Permit slow speed, for precise manoeuvring of the
truck in confined spaces.
Note:
When the Inch / brake pedal is fully depressed for 3 seconds or more the
parking brake will be engaged and the machine brought to a complete stop.
Accelerator Pedal
The accelerator pedal is located on the floor on the right
hand side of the steering column.
The accelerator pedal provides the operator
control of the truck speed.
To INCREASE truck speed, DEPRESS pedal.
Steering Wheel / Column
All models have both front and rear-end steering.
When in forward mode the front wheels are fixed and
the rear wheel steers the truck.
Rear-end steering allows sharper turns in confined
areas but demands greater driver care when turning.
When in sideward mode, the rear wheel is fixed and the
front wheels steer the truck.
When driving forwards, turn steering wheel clockwise to
turn truck clockwise, turn steering wheel anti clockwise
to turn truck anti clockwise.
When driving in reverse, turn steering wheel clockwise
to turn truck anti clockwise, turn steering anti clockwise
to turn truck clockwise.
When driving in sideward mode, turning the steering wheel
clockwise will turn truck clockwise. Turning the steering wheel anti
clockwise to turn truck anti clockwise.
The same is true for travel in either direction when in sideward mode.
The steering wheel is also equipped with a spinner knob for easier
steering.
The angle of the steering column is adjustable to increase driver comfort.
To adjust the angle of the steering column, loosen the locking handle on
the side of the column by turning the handle clockwise.
Adjust the steering column to the desired angle.
To lock the steering column in position turn the locking handle
anticlockwise until tight.
