C4-C5XL MK3 O&S
2-6
C4000MK3-OM-EN-11

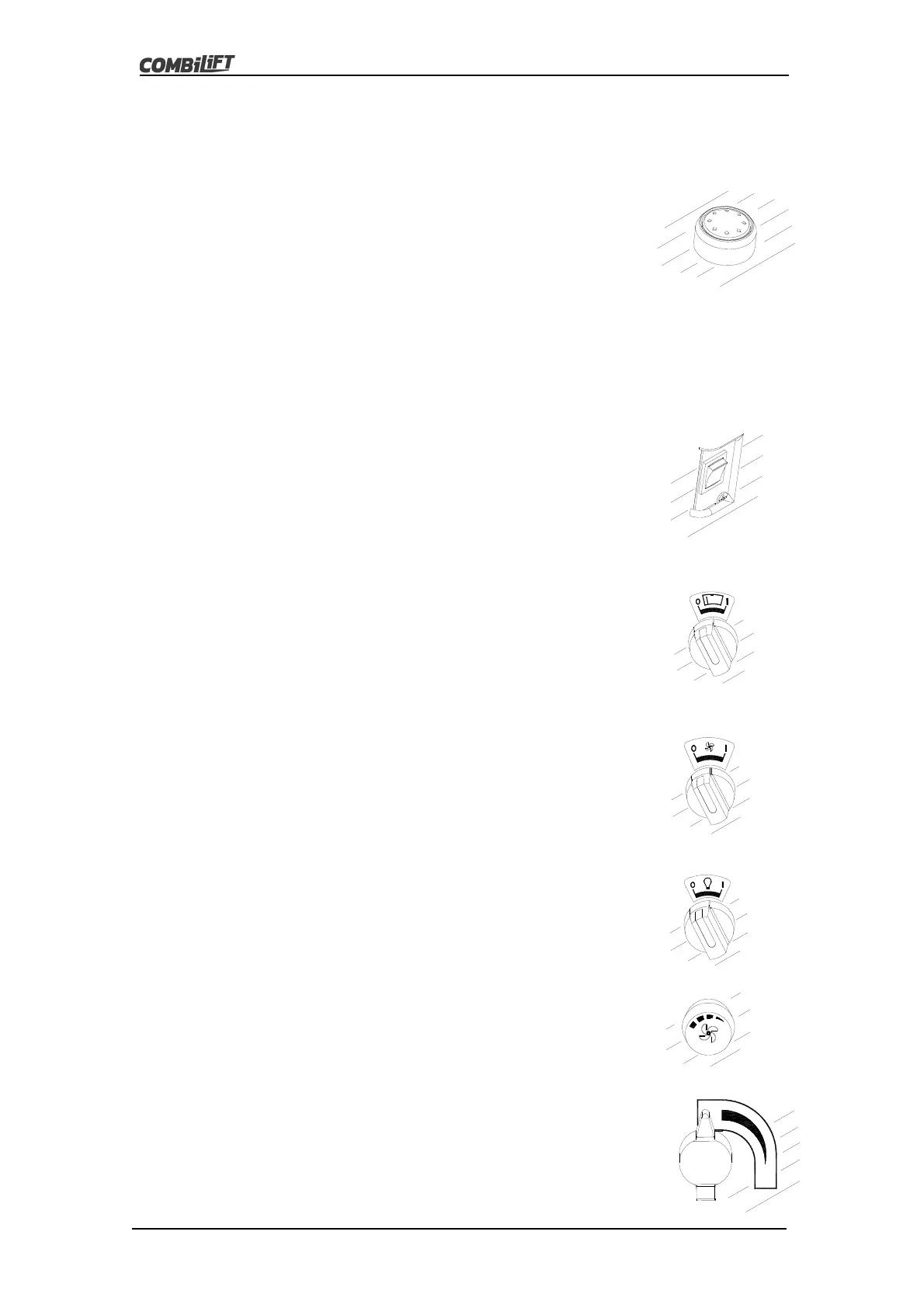

Drive Cutout Override Button (Optional)
This optional feature uses a push button switch, which is
connected to a sensor on high-lift Triplex masts.
When the mast is above 3.5m (138”) high, the machine
will not drive.
To re-commence driving the operator must either:
Lower the forks of the machine using the lift
control lever
OR
Press the drive cutout override button located
on the dash.
Wiper Switches
There are 2 wiper switches on the machine.
The front left hand wiper switch shown opposite is located
in the top left hand corner of the cabin. See Item 8 in figure
2 on page 2-2.
This rocker switch activates the wiper by flipping it to the
on position.
The front right hand wiper switch shown opposite is located
on the dash. See Item 28 in figure 2 on page 2-2.
The 2 position rotary switch activates the wiper by turning it
to the on position.
Cooling Fan Switch
This is a 2 position rotary switch located on the dash.
Turning it to the on position activates the cooling fan
located in the top right hand side of the cabin.
Interior Light Switch
This is a 2 position rotary switch located on the dash.
Turning it to the on position activates the interior light
located in the top right hand side of the cabin.
Heater Switch (Optional)
This four position rotary switch located on the dash
allows the operator to select between off, low,
medium or high fan speeds.
Heater Temperature Control (Optional)
To increase cabin temperature, turn anti-clockwise.
To decrease cabin temperature, turn clockwise.
3
1
2
0
Hot
Cold
