4.13: Air Filter Element
(Clean Every 100hrs, Replace Every 500hrs)

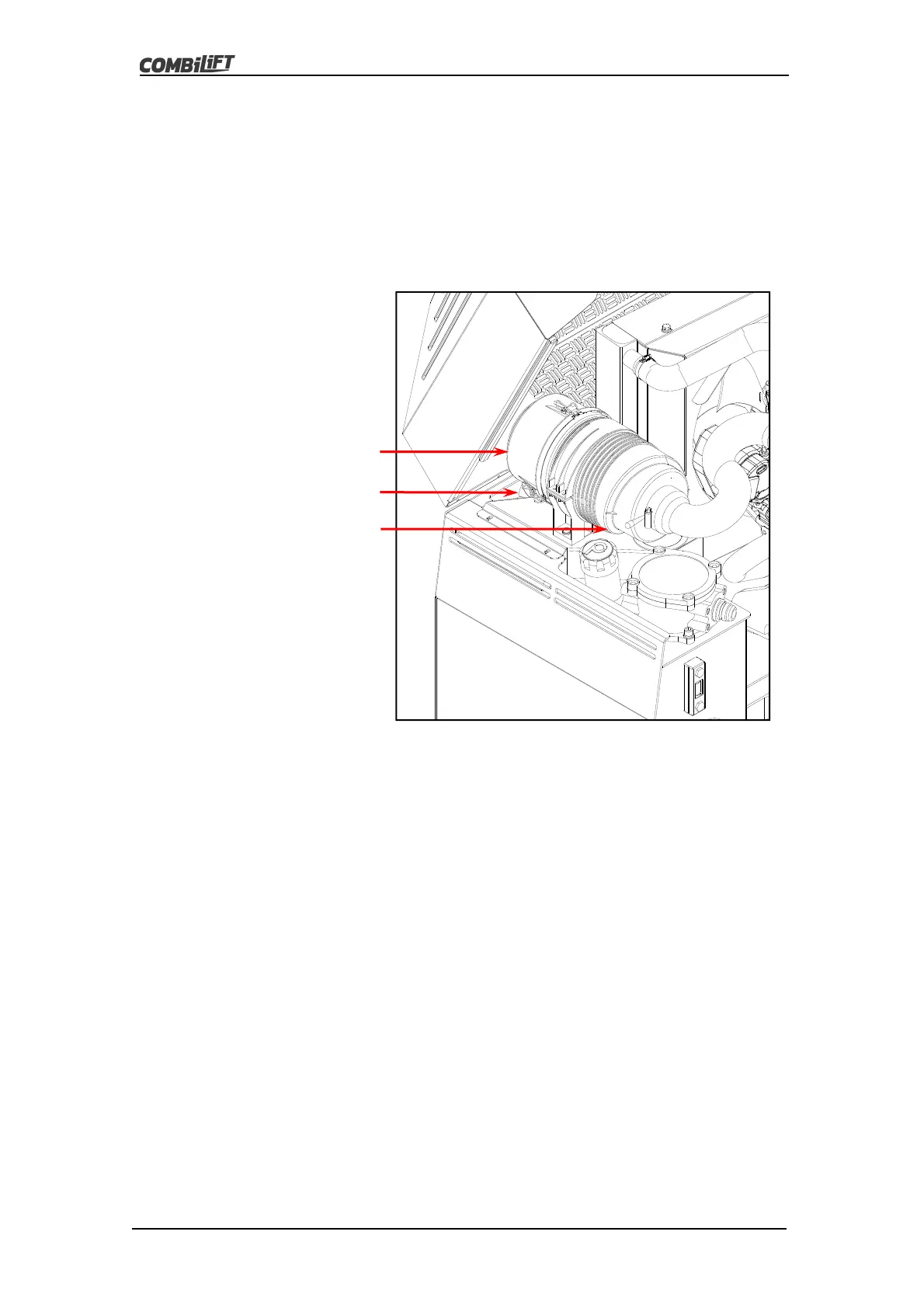

The air filter unit is located under the bonnet on the right hand side of the
machine as shown in the diagram below. The air filter cartridge must be
cleaned every 100 hours and replaced at intervals of every 500 hours (or 8
months depending on which occurs first). Always ensure that the Dust Valve is
pointing down.
In order to change/clean the air filter cartridge, take the following steps:
1. Raise the bonnet using the bonnet handle at the rear of the truck.
2. Remove the end cap from the filter housing by opening the 3 clips
3. Remove the existing air filter cartridge and clean it / or replace it with a
new cartridge. Only use a genuine Combilift component.
4. Replace the end cap ensuring that the dust valve is pointing downwards
as shown and close the 3 clips.
5. Close the bonnet gently.
End Cap
Dust Valve
Filter Housing
