There are 3 separate hydraulic filters in the hydraulic system that must be
replaced at certain intervals. These filters are:
1. The Suction Filter
2. The Return Filter
3. The In-Tank Strainer Filter

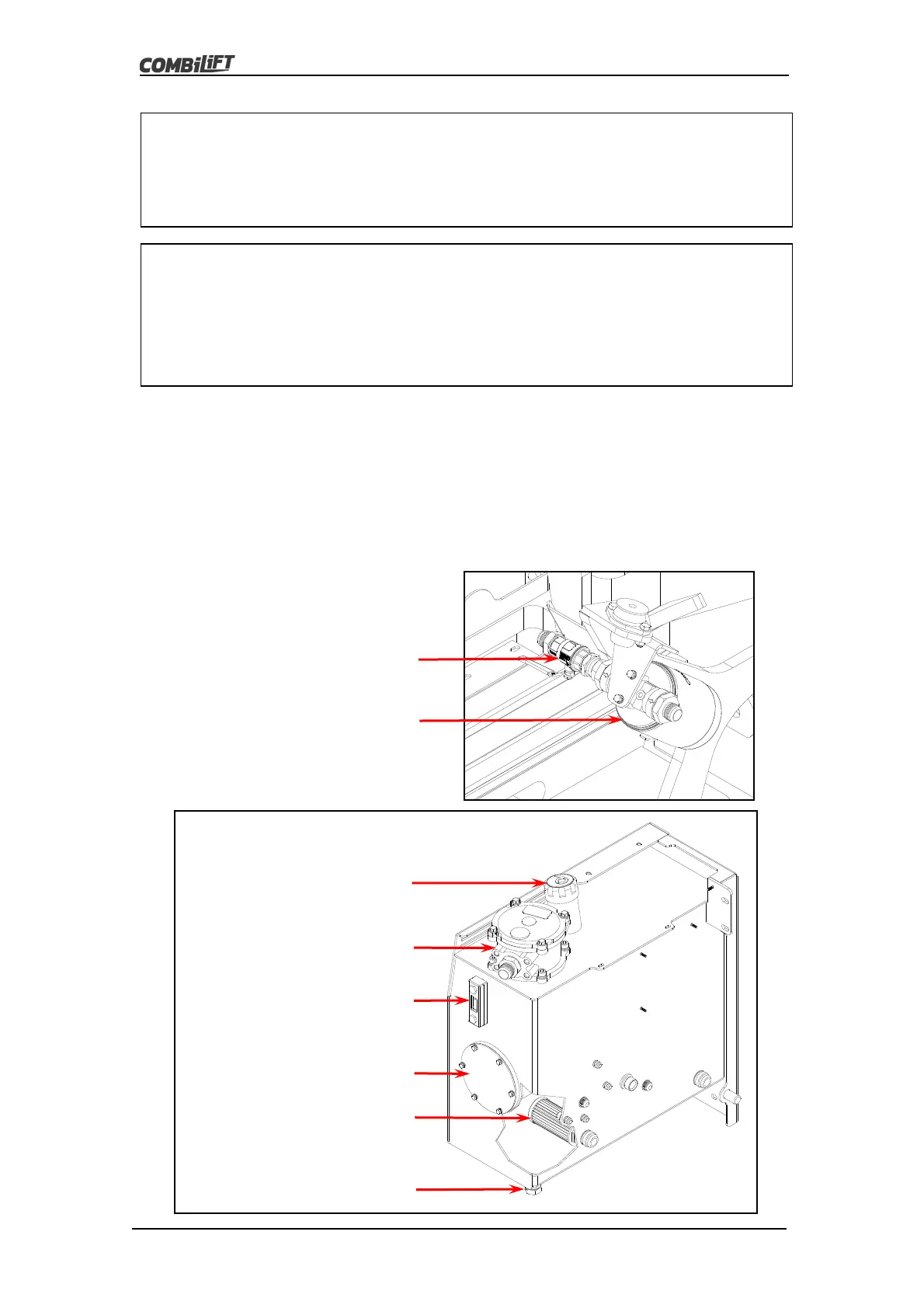

The locations of these filters are shown in the following diagrams.
Note
The machine is supplied with an AWH46 hydraulic fluid when leaving the
factory. Please check if this is suitable for the ambient temperature in which
the machine is to be operated.
Note
Before adding hydraulic oil, ensure that all cylinders are retracted and fill to
upper level on the hydraulic oil level gauge.
The capacity of the hydraulic tank is 60 Litres / 15.8 US Gallons
The capacity of the entire hydraulic system is 80 Litres / 21 US Gallons
Filler Cap
Return Filter
Hydraulic Oil Level Gauge
Access Panel
In Tank Strainer Filter
Oil Drain Bung
Shut Off Valve
Suction Filter
