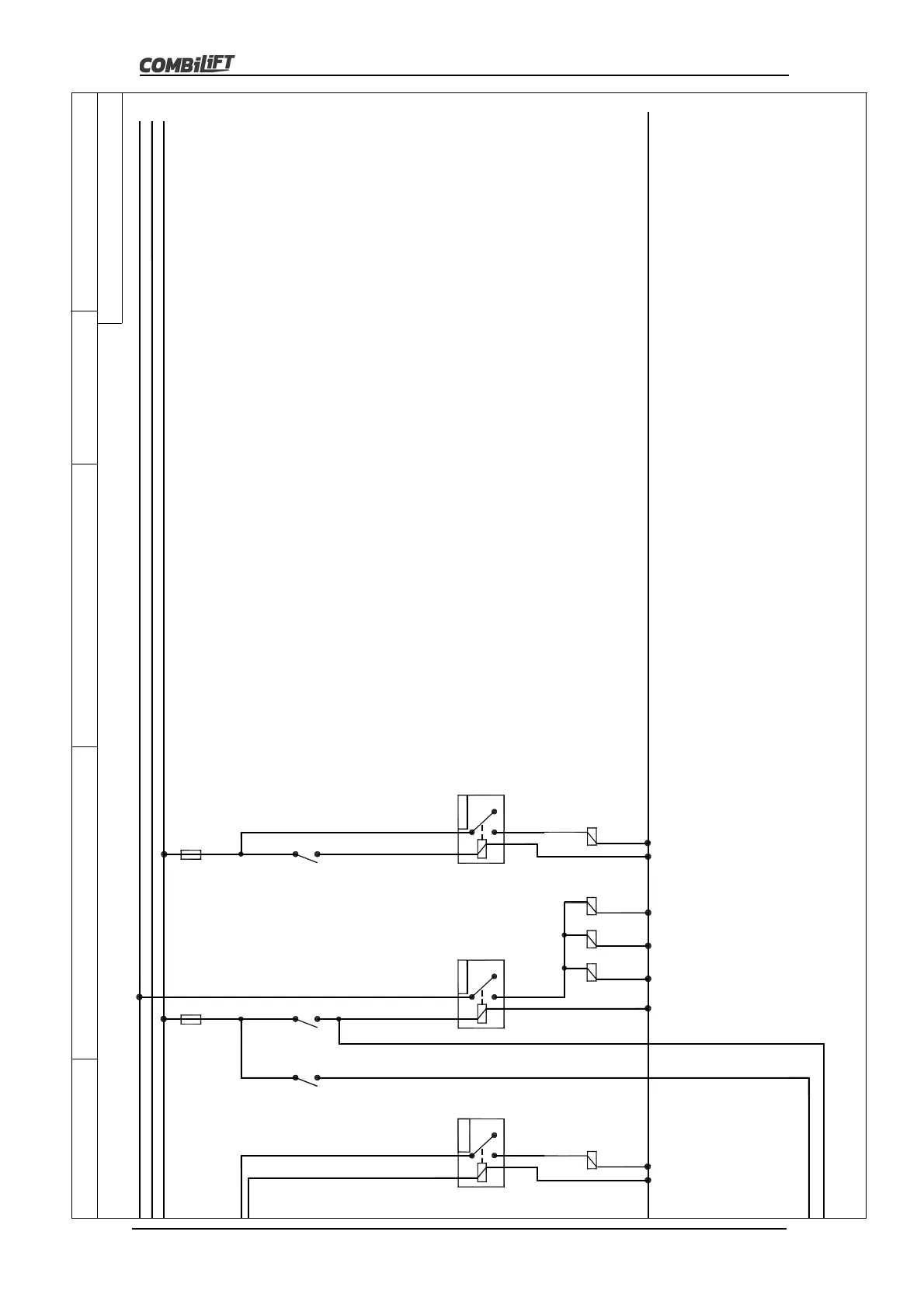

CombiLift C7700 - Page 72

C4-C5XL MK3 O&S
5-17
C4000MK3-OM-EN-11
GY
LOCK VALVE SOLENOID
LOCK VALVE SOLENOID
LOCK VALVE SOLENOID
87A
RELAY 32
30
86
85
87
R
F14
10
AUXILIARY 6-PORT SOLENOID
58
54
GY
YR
BUTTON
On Top Of
LEVER
Section: 3 of 3
Model: C4000 - C5000 & C5000XL
COMBILIFT LTD Title: GM LPG Tier IV (PLC)
Drawn By : David Murray
58
54
30
Revision Date:22/05/15
6 PORT STEERING SOLENOID
87A
RELAY 9
30
86
85
87
BN
BN
87A
RELAY LV
30
86
85
87
SEAT
SWITCH
R
GY
F12
7.5
SEATBELT
SWITCH
