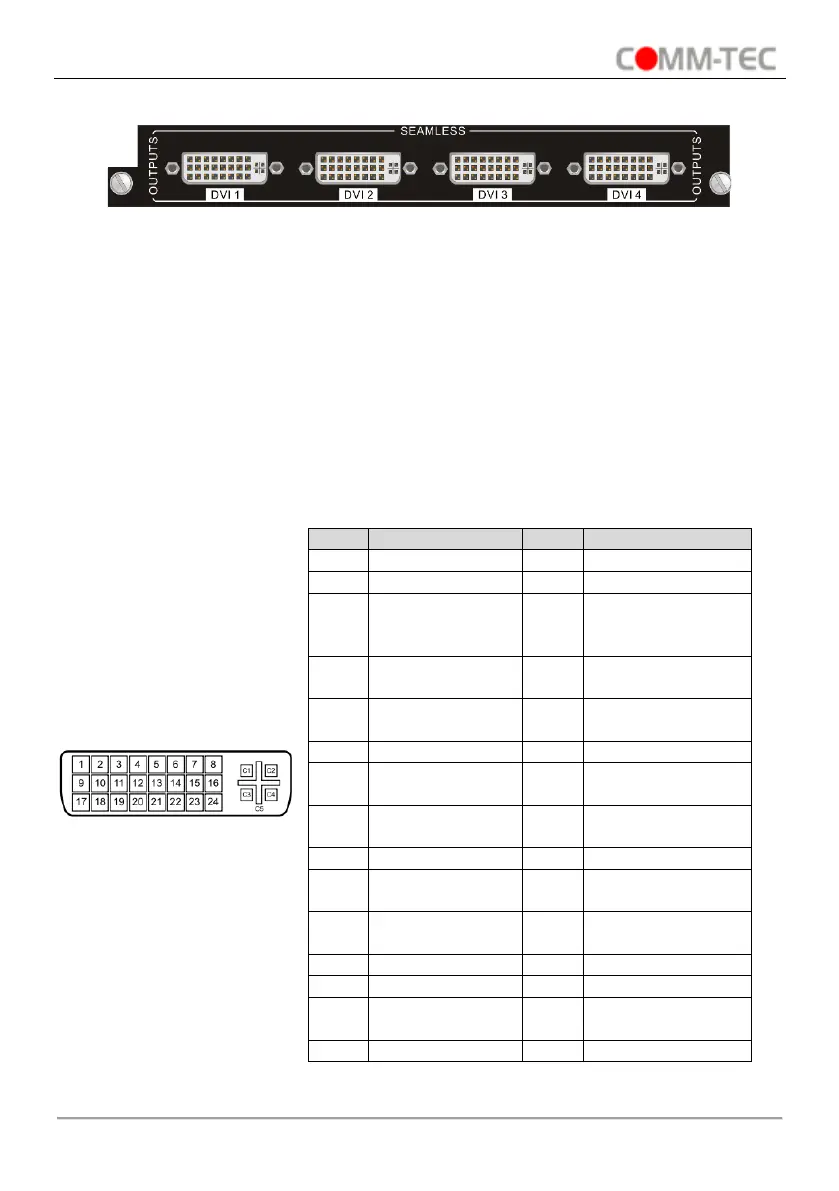

1080P seamless DVI output card with 4 DVI ports.
4O-DS
● Supports seamless switching, it can be used in combination with other seamless input
signal card.
● Supports HDMI 1.3 and HDCP 1.4.
● Manually select VGA (RGBHV), YPbPr, or C-VIDEO signal format.
● Supports output resolution selection, and it is up to 1920x1080P@60Hz.
● Supports embedded EDID management and DDC channel.
● Supports NTSC or PAL
Pin Layout of the DVI-I connector (Dual-Link). (Female)
Pin
Function
Pin
Function
1
T.M.D.S.Data2-
13
T.M.D.S.Data3+
2
T.M.D.S.Data2+
14
+5V Power
3
T.M.D.S. Data
2/4 Shield
15
Ground (return for
+5V,
Hsync and Vsync)
4
T.M.D.S. Data
4-
16
Hot Plug Detect
5
T.M.D.S. Data
4+
17
T.M.D.S. Data 0-
6
DDC Clock
18
T.M.D.S. Data 0+
7
DDC Data
19
T.M.D.S. Data 0/5
Shield
8
Analog Vertical
Sync
20
T.M.D.S.Data5-
9
T.M.D.S.Data1-
21
T.M.D.S.Data5+
10
T.M.D.S.Data1+
22
T.M.D.S. Clock
Shield
11
T.M.D.S.Data1/
3 Shield
23
T.M.D. S. Clock +
12
T.M.D.S.Data3-
13
T.M.D.S.Data3+
C1
RED
C2
Analog Green
C3
Analog Blue
C4
Horizontal Sync
Analog
C5
GND
