Comm-Tec MTX88M-N - Page 22

Modular Matrix Switcher
Comm-tec Srl 22 www.comm-tec.it

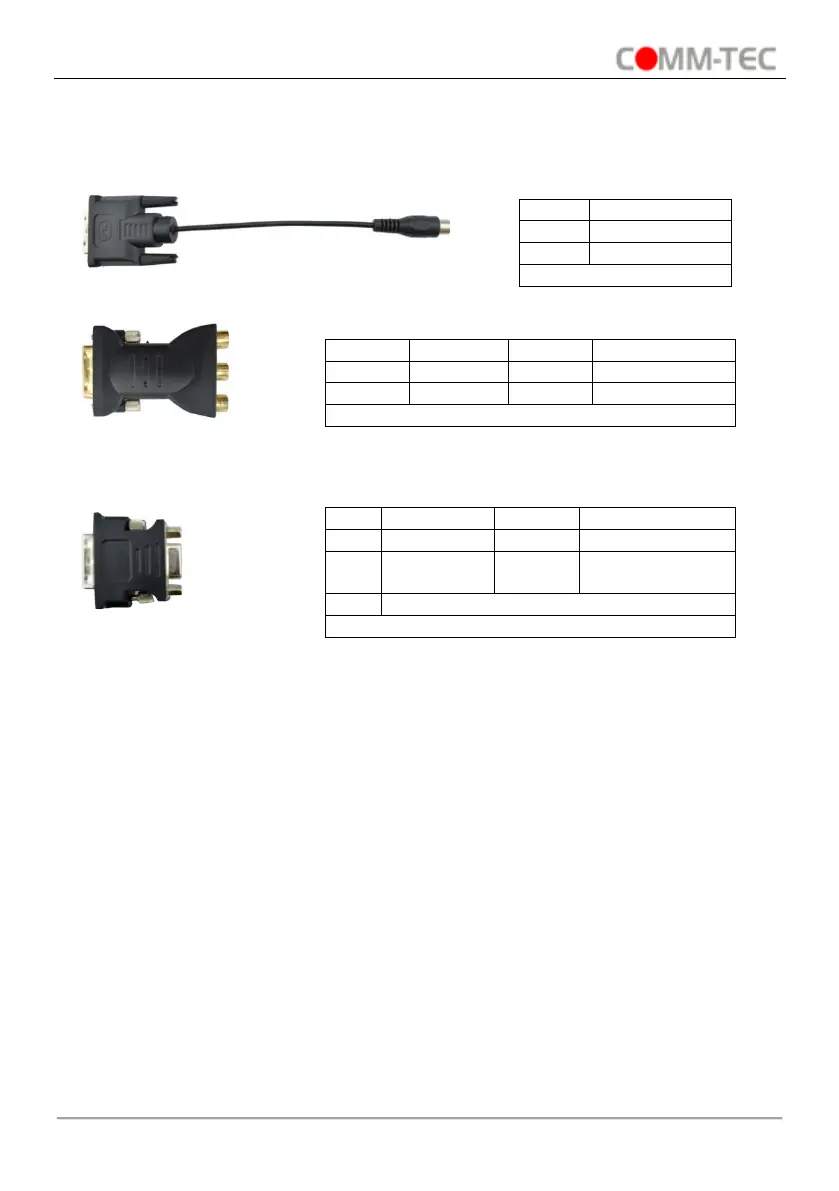

Note: When connecting to VGA, YPbPr or C-VIDEO signal, insert converting cables
according to specific pin definitions (see the figures below):
✓ DVI- C-VIDEO:
Pin
Signal
C1
Yellow
C5
GND
Other pins are unused.
✓ DVI- YPbPr:
Pin
Signal
Pin
Signal
C1
RED
C2
GREEN
C3
BLUE
C5
GND
Other pins are unused.
✓ DVI- VGA (female):
Pin
Signal
Pin
Signal
C1
RED
C2
GND
C3
GREEN
C4
Horizontal Sync
Analog
8
Vertical Sync Analog
Other pins are unused.
