Section 17–Changing the Electrical Downtilt-Group SmartBeam™ ATC200-LITE-USB Teletilt
®
RET System
17-4 October 2014 Bulletin 639536 • Revision L
10. You will be notified when all antennas
have successfully reached the new tilt
angle. Click OK (Figure 17-4).
11. The Set Electrical Tilt for Sector
screen will display the new electrical tilt
setting in the Current Tilt field. At this
point, either additional tilt angles may be
applied or you may return to the main
screen. To return to the main screen,
click Close (Figure 17-5).
12. After all electrical tilt adjustments are
made, a report can be saved to a file for
future reference (see Section 18).

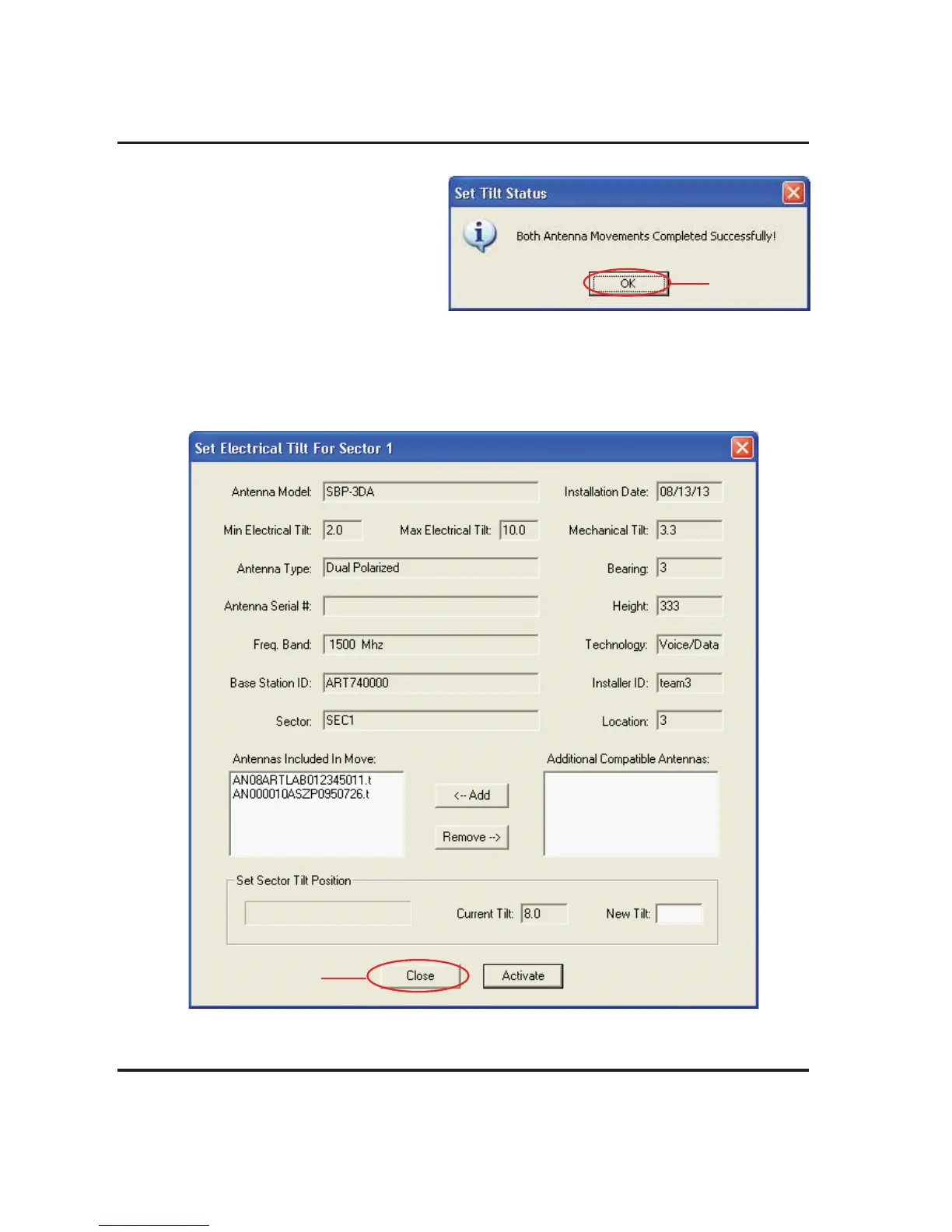

Figure 17-4. Movement Complete.
Figure 17-5. Closing Sector Move Screen.
Click OK.
Click Close.
