Section 3–Uploading Firmware ATC200-LITE-USB Teletilt
®
RET System
3-2 October 2014 Bulletin 639536 • Revision L
Firmware updates were placed in the C\:Program Files\Andrew Corporation\ATC Lite directory of
the computer when the ATC Lite Setup file is run.
3.2 Installing Firmware updates to TMA devices
Firmware updates are occasionally made to TMA devices. TMA firmware is upgraded by selecting
the device from the list following a device scan.
Select the TMA device from list, then right click to view the menu ‘Start firmware update…’ and click
or press ENTER to initiate the update. The TMA device that is selected for update is listed with se-
rial number and time needed for update. Click on Yes in the “TMA device firmware update” dialog to
proceed with the firmware update (Figure 3-4).

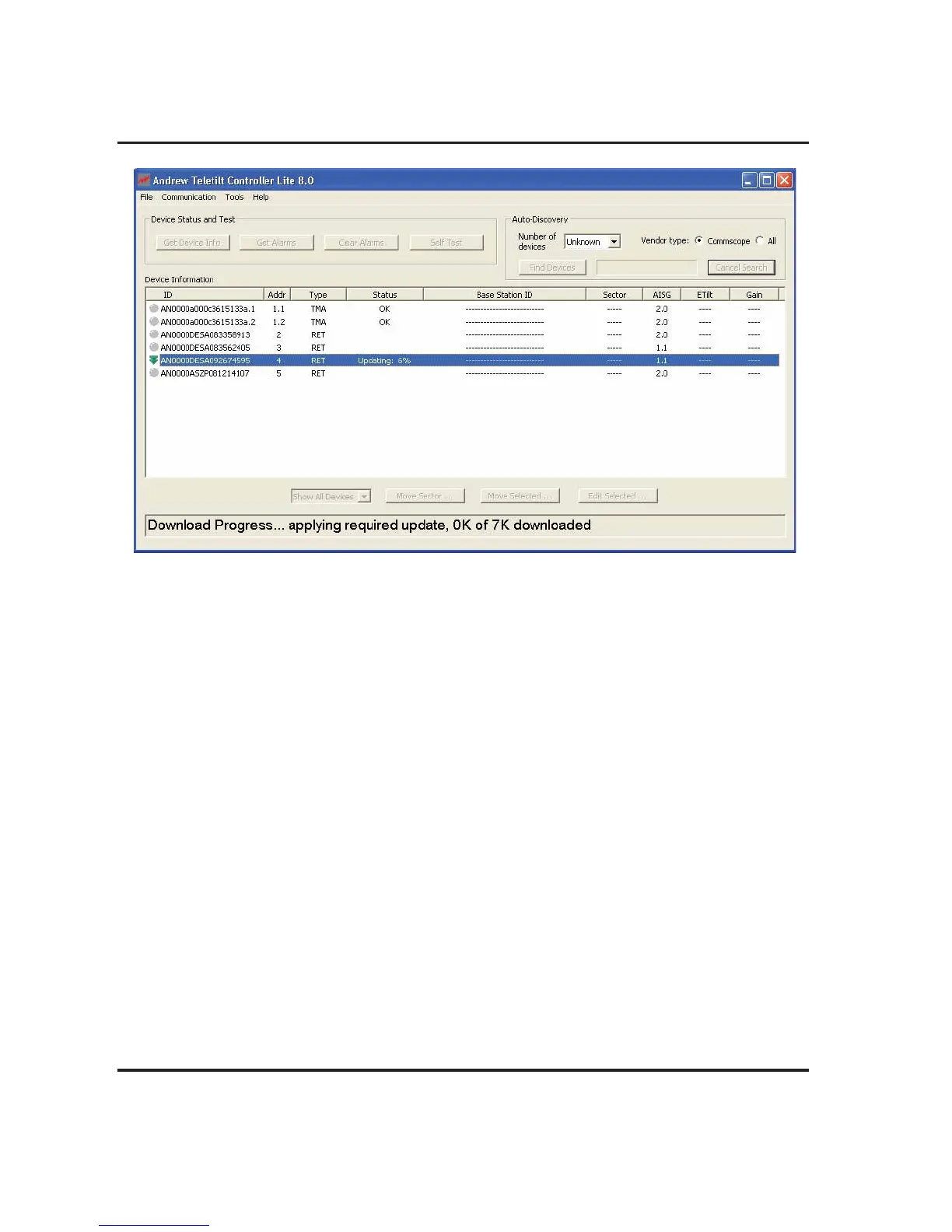

Figure 3-2. Applying Firmware Update .
