Section 10
Device Configuration for Antennas with
Multiple Integrated Actuators
After new devices are found and addressed in the ATC Lite program, each device is ready to be
configured. All Multiple Integrated Actuators are factory configured, so configuration data is readily
available and the relevant information is displayed in the Device Information list.
1. Switch to RET Device view by selecting ‘Show RETs’ from the drop down list below the
Device Information list.
2. To begin device configuration, click on the device to be configured (Figure 10-1).
3. Click on Edit Selected to open the Configuring Device screen (Figures 10-1 and 10-2).

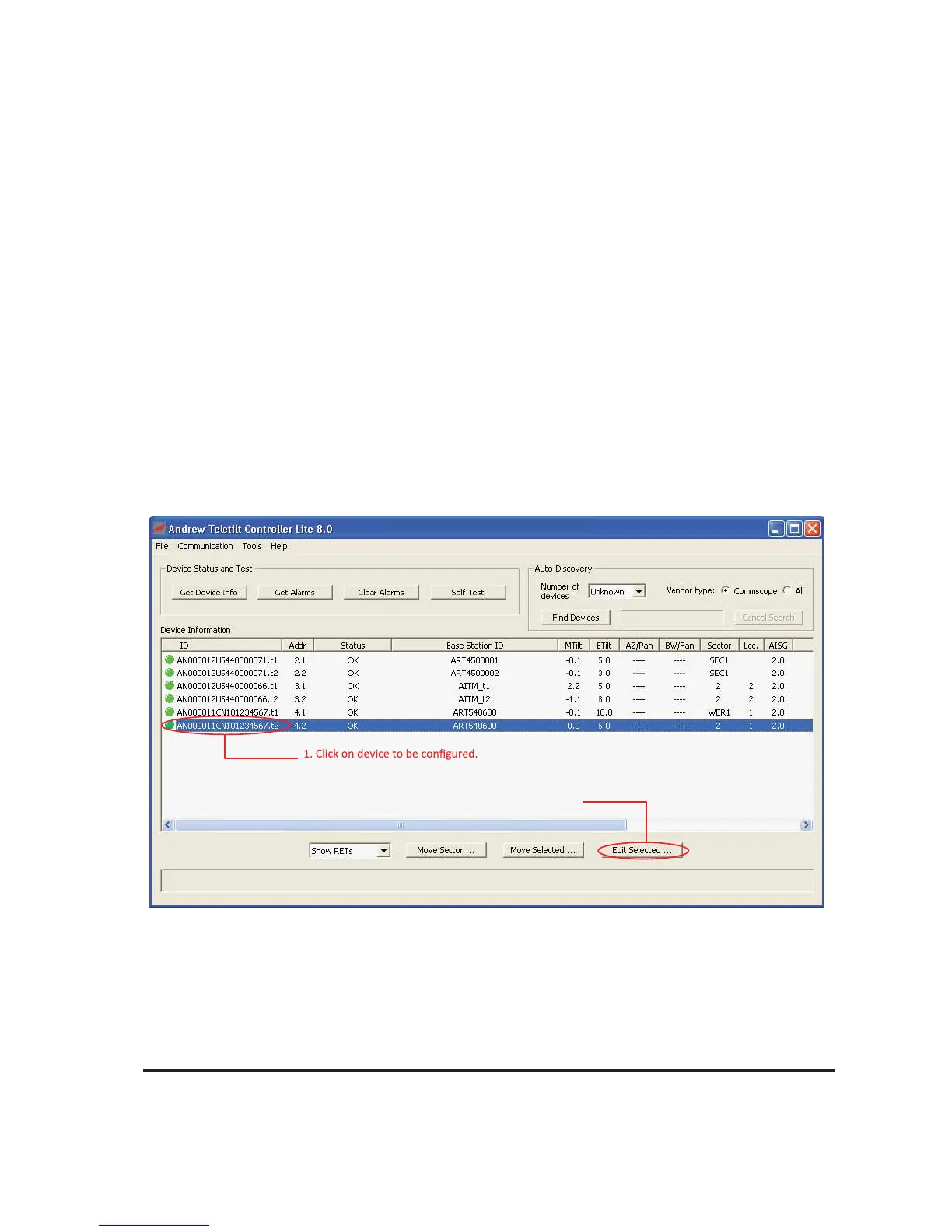

Figure 10-1. Selecting Device to be Configured.
Bulletin 939536 • Revision L October 2014 10-1
2. Click Edit Selected.
To Next Page
