CommScope ATC200-LITE-USB - Protocol Mode Switching for Accuret Devices

Section 5–Actuator Protocol Mode Switching ATC200-LITE-USB Teletilt
®
RET System
5-6 October 2014 Bulletin 639536 • Revision L
5.1 Protocol Mode switching for AccuRET devices
Andrew AccuRET devices can be switched between AISG modes (1.1 and 2.0) and AISG to Erics-
son modes.
1. Run a Device Scan to detect all devices on the RET system including AccuRET devices.
2. To switch AccuRET mode, select the AccuREt device from the displayed list.
3. Select Tools
→Switch Protocol Mode →ACCURET1...
4. Select the protocol mode to switch to from the list and Click on “OK” button. Message indicating
the switching of protocol mode will be displayed in the Command Status/Response window.
5. AccuRET device switched between AISG modes (1.1 and 2.0) will reset and will be displayed in
the switched protocol mode. Device switched to Ericsson mode will display “Not Reporting”.

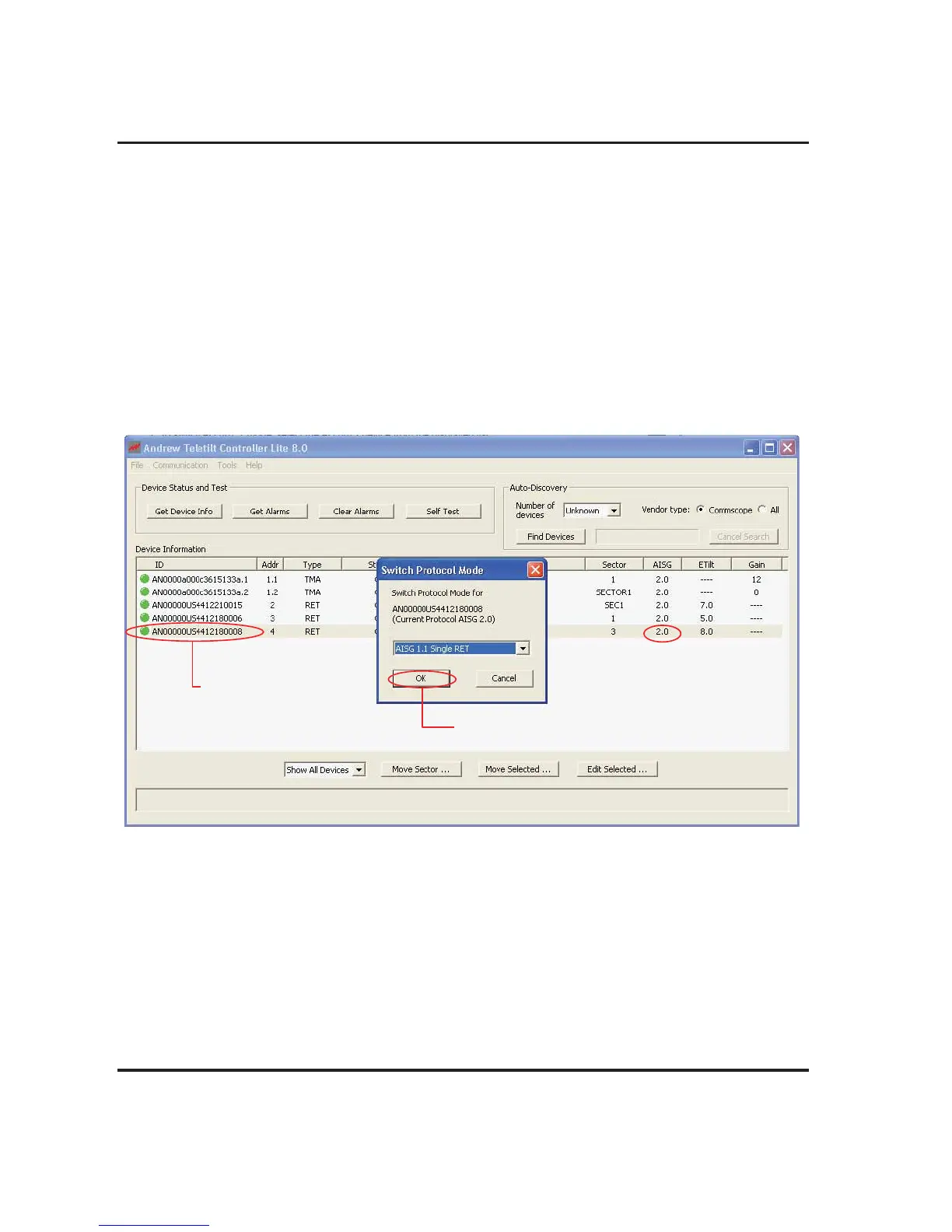

Figure 5-9. Switching protocol mode for AccuRET device.
1. Select AccuRET device and
Click on ToolsSwitch Protocol
ModeACCURET1…
2. Select Protocol to switch
to and click on OK.
