4.2 Device Information Views
4.2.1 All Devices View
The ‘Show All Devices’ device information view displays the main information about the device
found. This view also displays device specific information like Current tilt for RET device and Gain
value for TMA devices (Figure 4-5). Views of the device information list is switched between ‘Show
All Devices’, ‘Show RETs’ and ‘Show TMAs’ by using drop down list (Figure 4-6).
Relevant actions for devices like Tilt Move, Tilt Move for Sector, Edit configuration, Set TMA Gain
and Set TMA Mode can be performed by selecting the device from the list and clicking on the ap-
propriate button(Move Selected, Move Sector, Edit Selected, Set Gain, Set Bypass Mode)

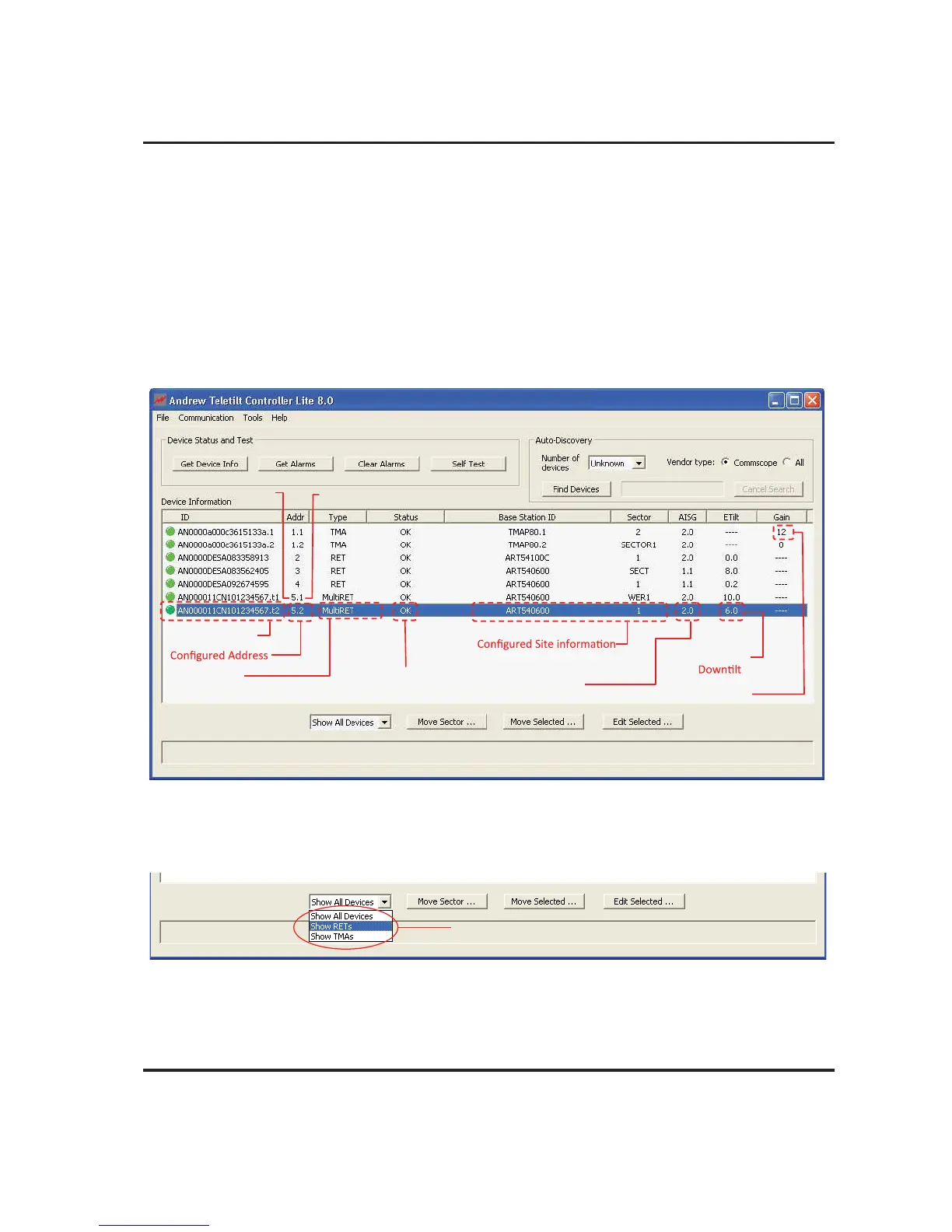

Figure 4-5. All Devices List View
Device Serial No.
Device Type
Device Status
Current AISG Mode
Electronic
TMA Gain
Address No.
Sub-device No.
Select to view RET or TMA devices list display
Figure 4-6. Selection for switch to different views
