Bulletin 639536 • Revision L October 2014 23-1
Section 23
Changing the Operating Mode on a TMA

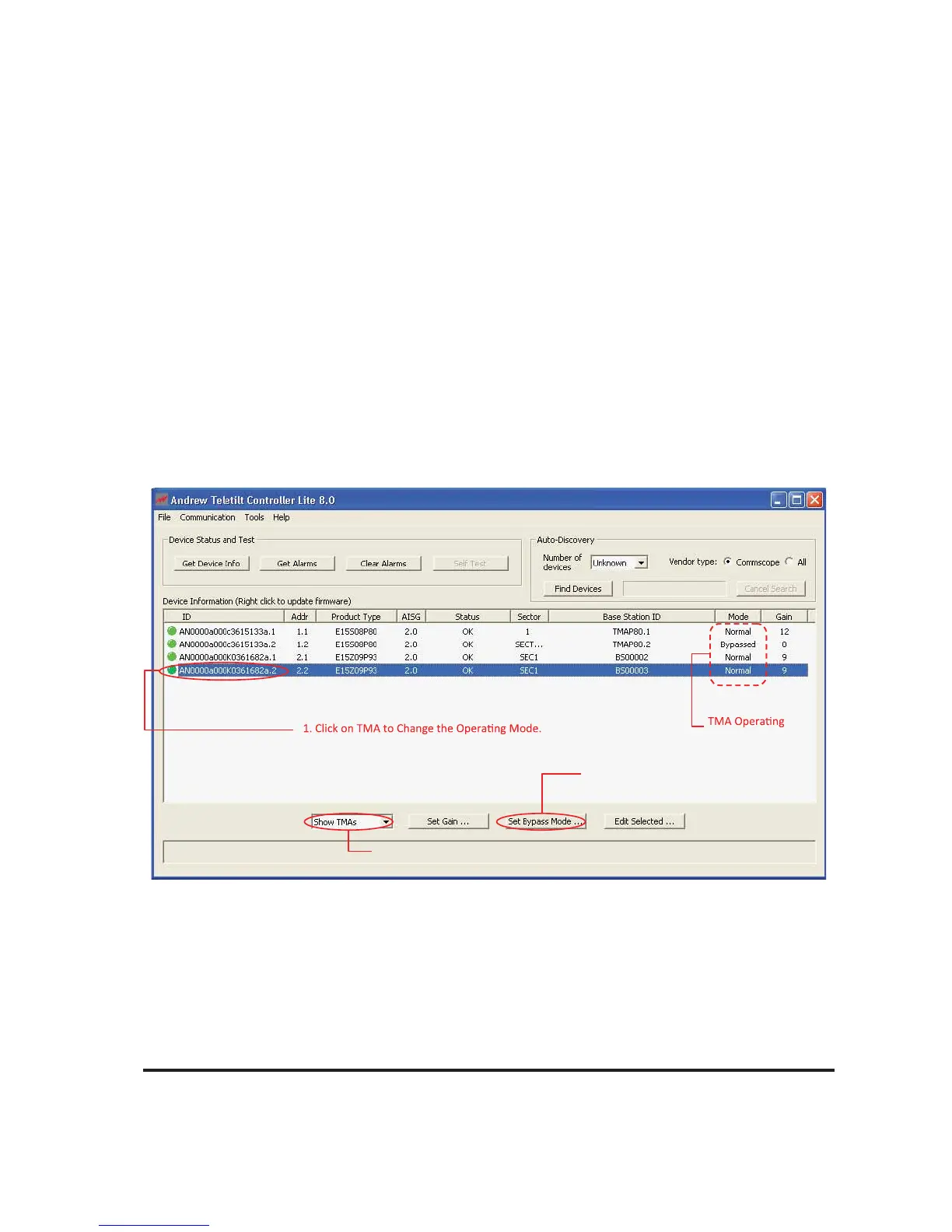

Figure 23-1. Selecting TMA to change Operating Mode
Each TMA device can operate either with its amplifier on or with it bypassed. The ATC-Lite allows
changing the TMA operating mode. In the Device Information List, when Show TMAs is selected,
the current operating mode of each TMA is displayed in the Mode column. ‘Normal’ indicates that
the TMA is operating with its amplifier on, while ‘Bypassed’ indicates that the TMA amplifier is by-
passed. (Figure 23-1).
1. Switch to TMA Devices view by selecting ‘Show TMAs’ from the drop down list below the
Device Information list
2. From the Device Information list, click on the TMA to change the operating mode
(Figure 23-1).
3. Click Set Bypass Mode at the bottom of the screen (Figure 23-1).
2. Click Set Bypass Mode.
Select for TMA Devices view display.
Mode.
