2-1 October 2014 Bulletin 639536 • Revision L
Section 2
Controller Setup
2.1 System Description
The ATC200-LITE-USB is an antenna system controller that is used within the Andrew Teletilt
®
RET
system to manage electrical tilt settings of an antenna(s) remotely. Figure 2-1 shows an example of
components used in an ATC200-LITE-USB Teletilt system. Follow the procedures described in the
installation bulletins included with each component for successful installation for each device.

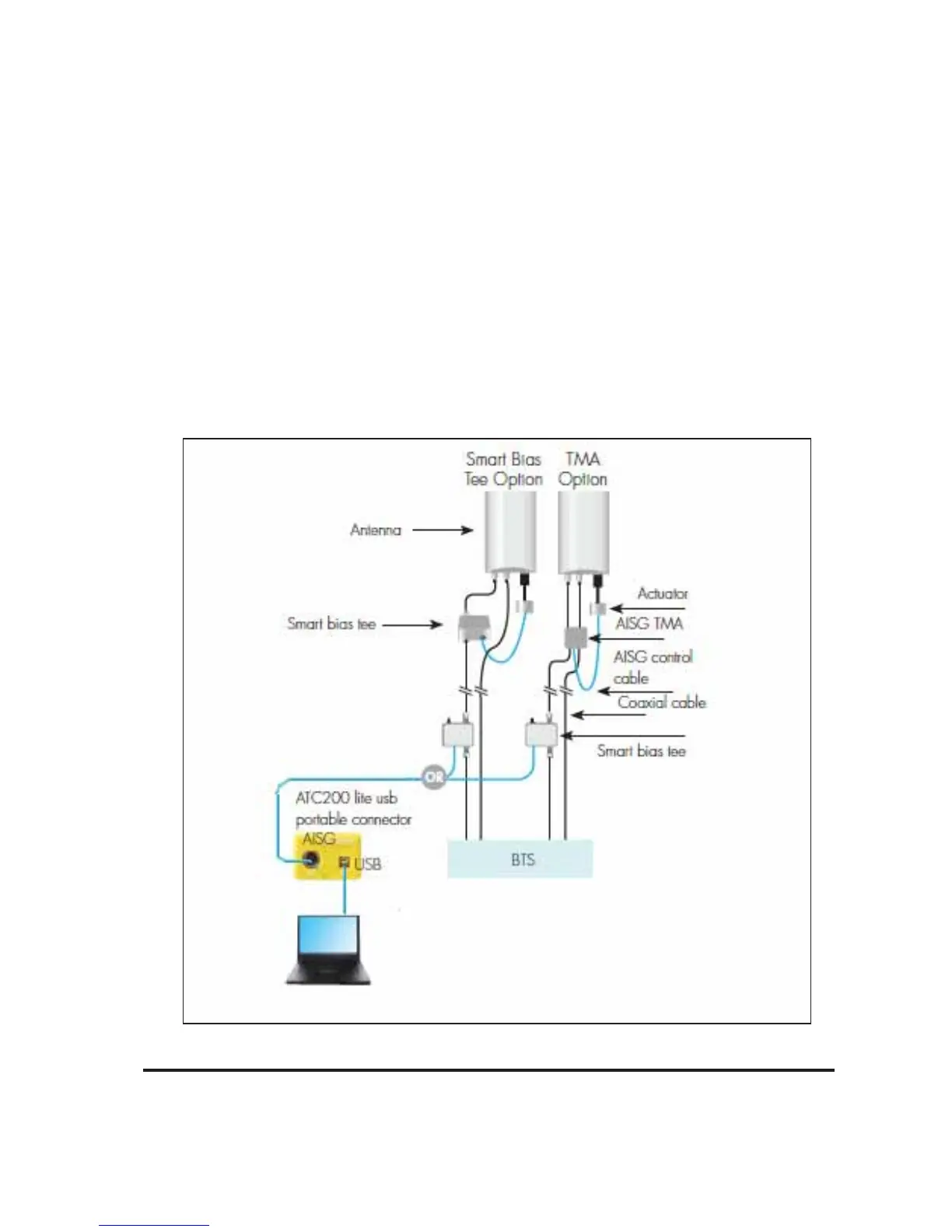

Figure 2-1. Example of Andrew Teletilt
®
Basic RET System with an ATC200-LITE-USB.
