Bulletin 639536 • Revision L October 2014 12-1
Section 12
Adjusting the Electrical Downtilt on a Group
of Antennas Equipped with Multiple Integrated
Actuators
In addition to changing the downtilt of a single antenna, changes may also be applied to a group of
antennas. The list of antennas that make up the group is defined by three configuration parameters
– Sector ID, Minimum Electrical Tilt, and Maximum Electrical Tilt. Only antennas that are identical in
all three parameters are candidates for a given group move.
1. Switch to RET Device view by selecting ‘Show RETs’ from the drop down list below the Device
Information list.
2. Select a device from the Device Information list that contains the Sector ID and tilt range rep-
resenting the group to be moved (Figure 12-1).
3. Click Move Sector (Figure 12-1).
4. From the Set Electrical Tilt for Sector screen, notice that the selected device is highlighted
and displayed in the box labeled Antennas Included In Move. This box displays a list of all
devices that will be included in the sector move. Initially, this box contains only the antenna
that was selected from the main screen. All of the current configuration settings for this device,
including its current tilt, are displayed on this screen (Figure 12-2).

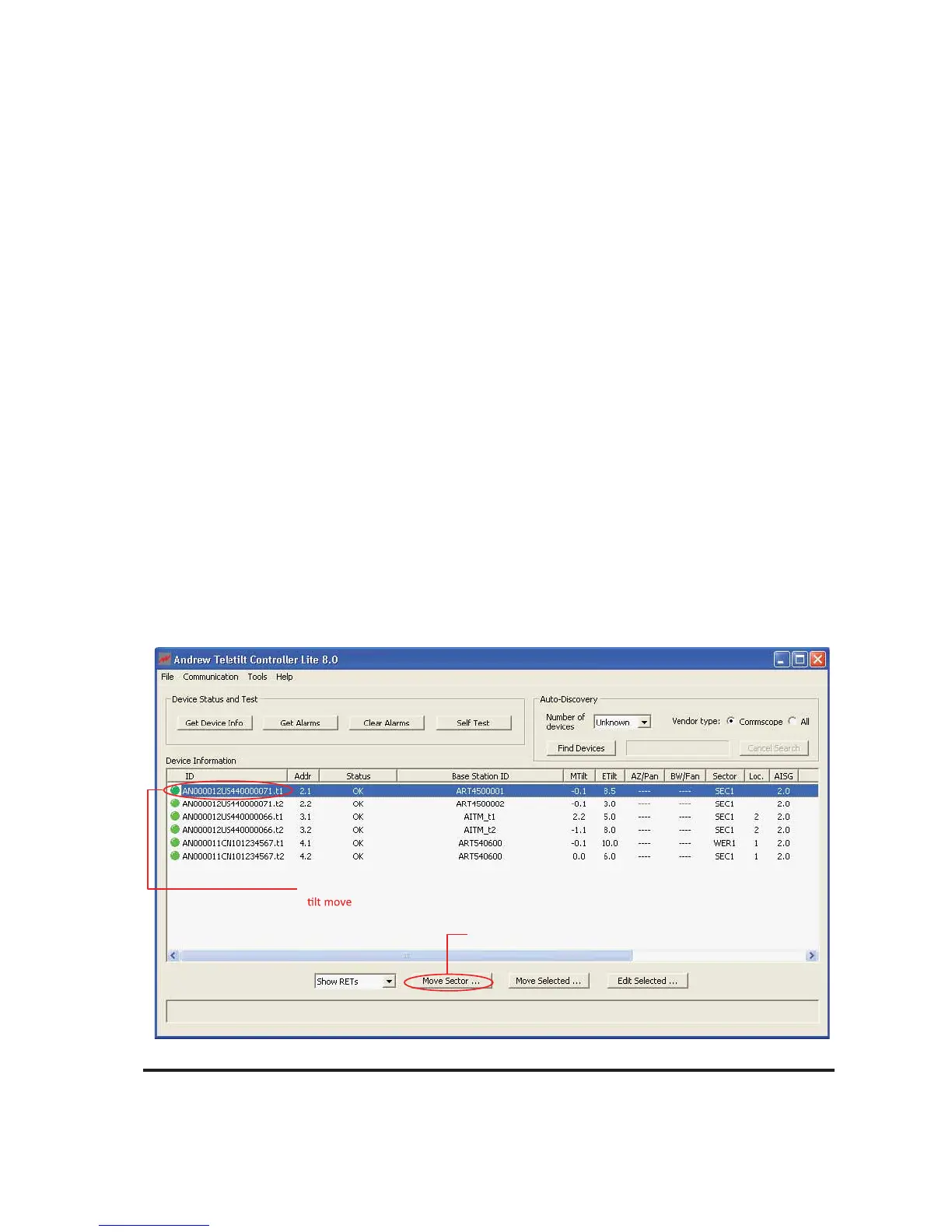

Figure 12-1. Selecting an Antenna Within a Sector.
1. Click on device within sector to select sector for
2. Click Move sector.
