A
TC200-LITE-USB T
eletilt
®
RET System
Section 2–Controller Setup
Bulletin 639536 • Revision L
October
2014
2-6
Figur

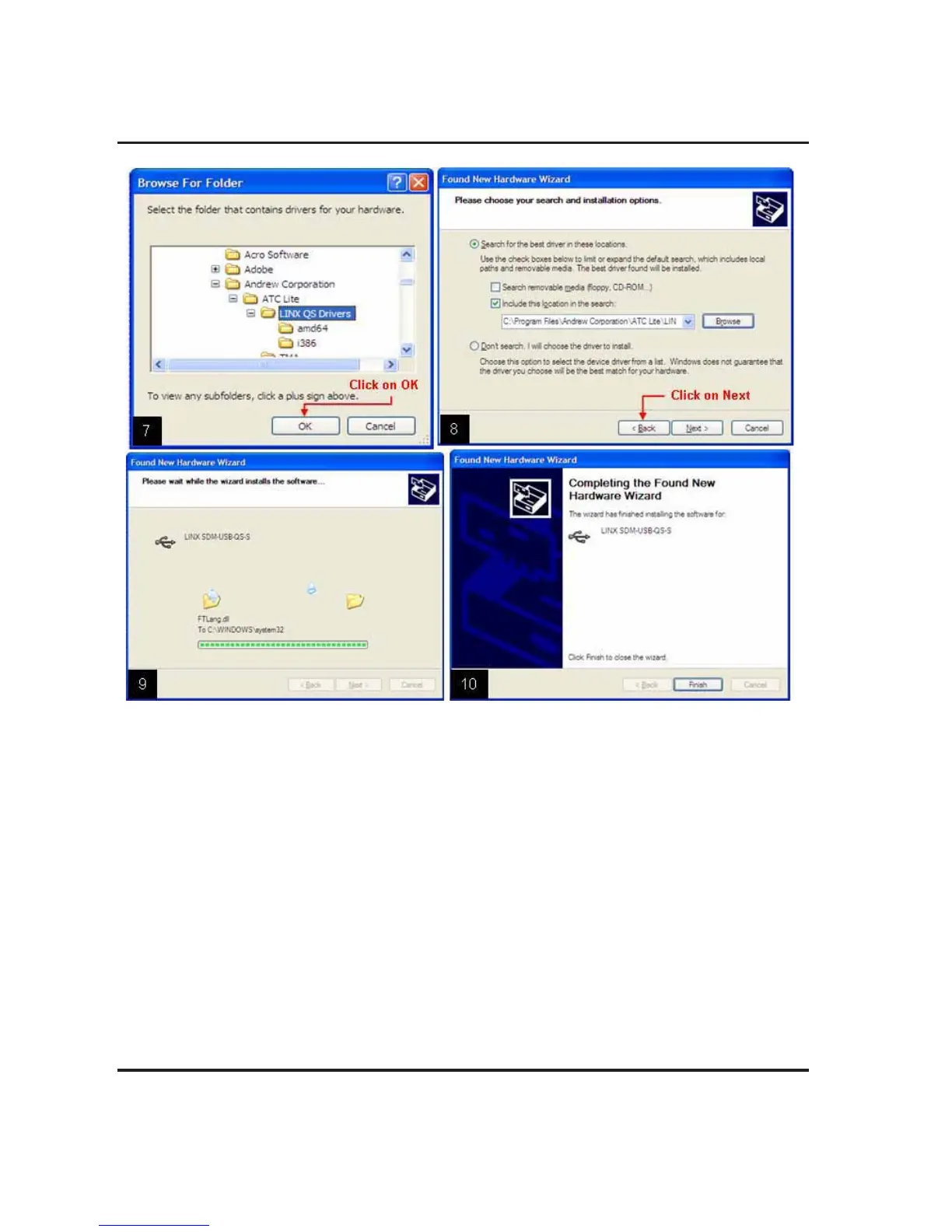

e 2-6. Installing USB Driver
.
22
24
Table of Contents
Default Chapter
3
Revision History
3
Notices and Precautions
4
Table of Contents
7
Part 1 Initial Setup
11
1 System Requirements/Recommendations
13
Program Download and Installation
13
Section 1 Program Installation
13
Controller Setup
18
System Description
18
Program Startup
24
Section 3 Uploading Firmware
27
Installing Firmware Updates to Actuators
29
3 Overview
29
Installing Firmware Updates to TMA Devices
30
Specifying an Antenna Definition File
33
Updating the Antenna Definition File
33
Part 3 - Device Discovery for All Types of Antennas
36
Device Search
38
Section 4 Device Discovery and Addressing
38
All Devices View
42
Device Information Views
42
RET Devices View
43
TMA Devices View
44
Addressing
45
Part 4 - Operating Instructions for Standard Antennas with Attached Actuators
49
5 Protocol Mode Switching for ATM3 Devices
51
Section 5 Actuator Protocol Mode Switching
51
Using AISG Reset Option Tools
51
Switching a Single ATM200-002 to Ericsson Protocol
54
Protocol Mode Switching for Accuret Devices
56
Section 6 Device Configuration
58
Section 7 Changing the Electrical Downtilt on a Single Antenna
64
Section 8 Changing the Electrical Downtilt on a Group of Antennas
68
Integrated Actuators
74
Section 9 Switching Operating Modes for Multiple Integrated Actuators
74
Section 10 Device Configuration for Antennas with Multiple Integrated Actuators
77
Section 11 Adjusting the Electrical Downtilt on a Single Antenna Equipped with Multiple Integrated Actuators
83
Section 12 Adjusting the Electrical Downtilt on a Group of Antennas Equipped with Multiple Integrated Actuators
87
Part 6 - Operating Instructions for Smartbeam
91
Section 13 Device Configuration with Smartbeam™ Antennas
94
Section 14 Changing the Electrical Downtilt on a Single Smartbeam
97
Antenna
97
Section 15 Changing the Boresight (Pan) on a Single Smartbeam
101
Antenna
101
Section 16 Changing the Beamwidth (Fan) on a Single Smartbeam
105
Antenna
105
Section 17 Changing the Electrical Downtilt on a Group of Smartbeam
109
Antennas
109
Part 7 - Saving Reports and Retrieving Alarm Status
113
Saving/Viewing a Site Report Formatted to Open in Word
115
Section 18 Saving a Site Report or Site Configurations
115
Saving/Viewing a Site Report Formatted to Open in Excel
118
Section 19 Device Test, Alarm Status, and Device Information
121
Obtaining Device Information
122
Retrieving Current Alarm Status
122
Clearing All Alarms on a Device
123
Executing a Self Test Movement for a Device
123
Alarm Reported by TMA
124
Section 20 Alarm Status for TMA
124
Retrieving Current Alarm from TMA
126
Clearing All Alarms on TMA
127
Part 8 - Operating Instructions for Tower Mounted Amplifiers (TMA)
129
Section 21 Device Configuration with TMA
131
Section 22 Changing the Gain on a Variable-Gain TMA
135
Section 23 Changing the Operating Mode on a TMA
139
Part 9 Appendix
143
Appendix A Letter of Compliance
145
Appendix B Declaration of Conformity
147
