CommScope ATC200-LITE-USB User Manual

Section 4–Device Discovery and Addressing ATC200-LITE-USB Teletilt
®
RET System
4-9 October 2014 Bulletin 639536 • Revision L

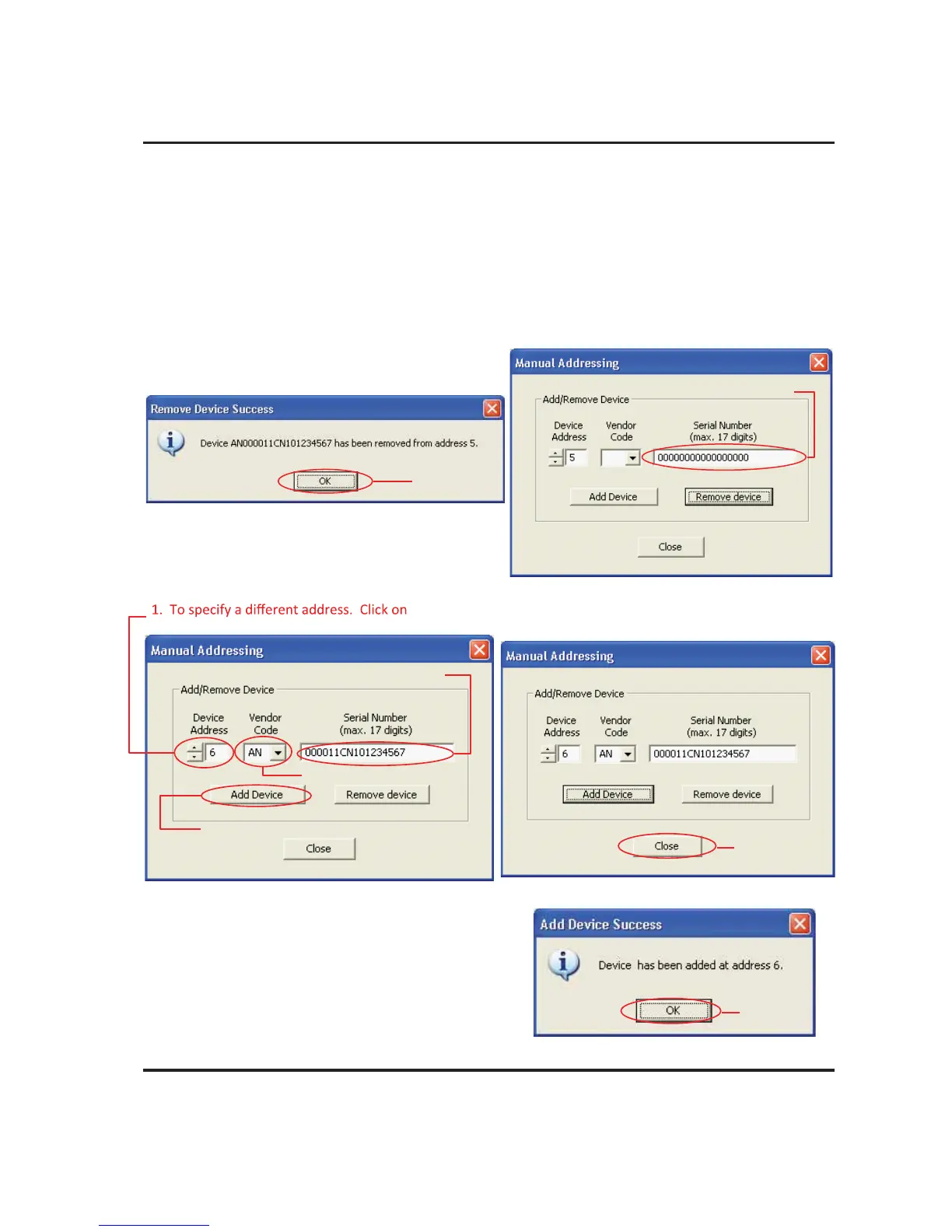

Figure 4-12. Device is Removed.
Figure 4-13. Manual Addressing Screen is used to Add
Device to New Address.
Figure 4-15. Confirmation of New Device Address.
Figure 4-14. Closing Manual Addressing Screen.
Figure 4-11. Confirmation of Device Removal.
4. A message will appear that the device was successfully removed from the address it originally held
(Figure 4-11). Click OK to return to the Manual Addressing screen. After the device is re- moved, the
Serial Number field changes to a string of 0’s (Figure 4-12).
5.
Using the up or down arrow buttons, select an available Device Address. (Available device
addresses will always show a string of 0’s for the Serial Number). Change the Vendor Code, and
enter the serial number for the device that was removed (Figure 4-13).
6.
Click Add Device (Figure 4-13).
7. Click Close (Figure 4-14).
8. Click OK to return to the main screen
(Figure 4-15).
Click OK.
Serial number zeros out
the up/down arrows.
3. Paste or enter the device serial number.
2. Select Vendor.
4. Click Add Device.
Click Close.
Click OK.
