ATC200-LITE-USB Teletilt
®
RET System Section 11–Adjusting Downtilt-Single Antenna with Multiple Actuators
Bulletin 639536 • Revision L October 2014 11-3
7. You will be notified when movement is complete (Figure 11-3).
If for any reason the move failed to reach the new tilt angle specified, you will be notified of the
failure.
8. At the successful completion of an antenna movement, the Current Tilt field will update to
show the new tilt angle and the New Tilt text entry box will be cleared in preparation for the next
move (Figure 11-4). At this point, you may click on the Close button to exit this screen and re-
turn to the main screen. Alternately, this process may be repeated to further adjust the downtilt
or to reapply changes where movement had previously failed, such as a temporary mechanical
jam.
9. After closing the Set Actuator Position screen, the main screen will show the new electrical
downtilt setting in the Device Information list.
After all electrical tilt adjustments are made and you are ready to end the program session, a
report can be saved to a file for future reference using the site reports function (see Section 18).

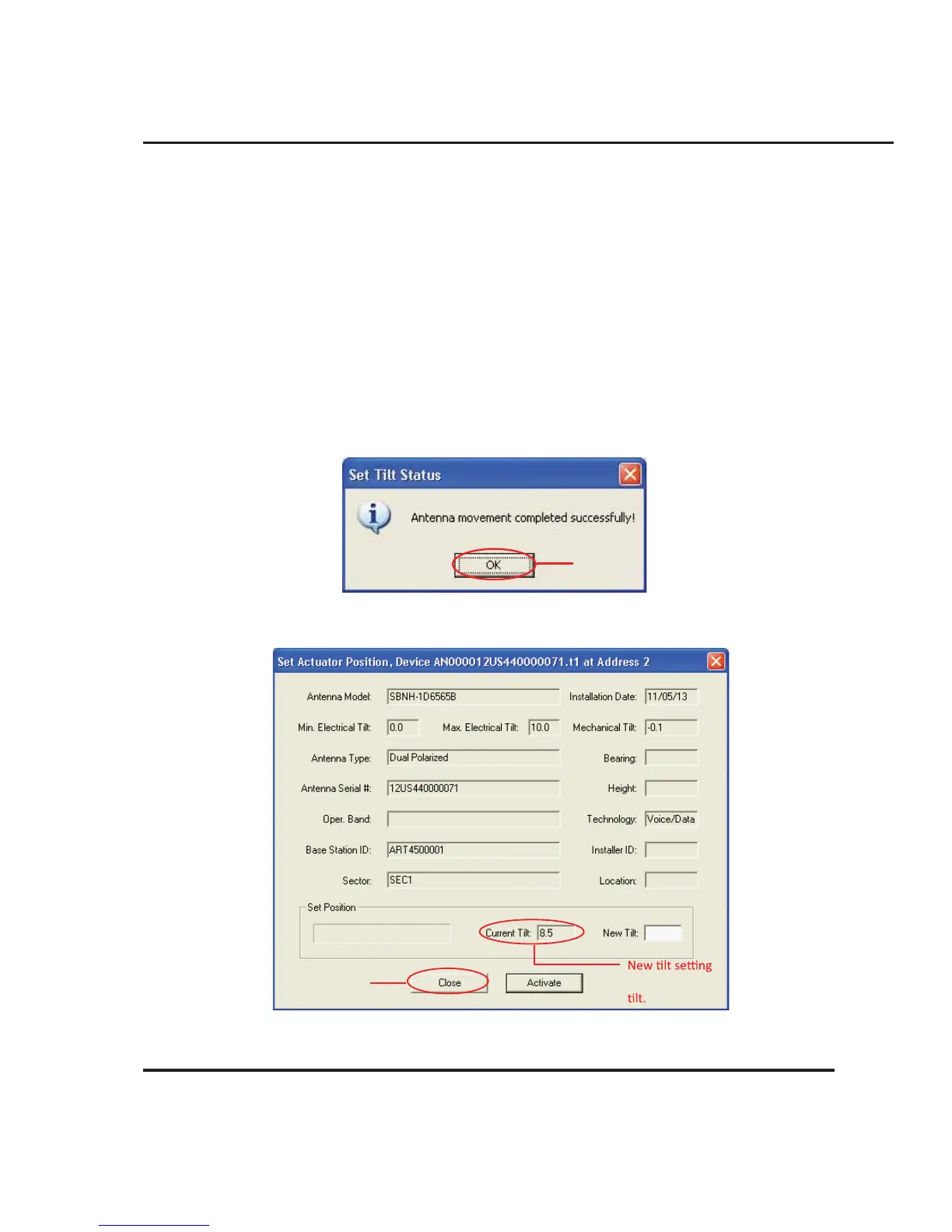

Figure 11-3. Electrical Tilt Adjustment Complete.
Figure 11-4. New Electrical Tilt Displays in Current Tilt Field.
Click OK.
becomes current
Click Close.
