RET System Section 14–Changing the Electrical Downtilt-Single SmartBeam™
Bulletin 639536 • Revision L October 2014 14-3
6. Click the Activate button (Figure 14-2) to apply changes to the electrical downtilt for this an-
tenna. Alternately, to exit the screen without sending any changes, click on the Close button.
Antenna movement will begin after the Activate button is applied.
A progress indicator bar (located to the left of Current Tilt) will continually update for as long as
the move is in progress.
7. You will be notified when movement is complete (Figure 14-3).
If for any reason the move failed to reach the new tilt angle specified, you will be notified of the
failure.

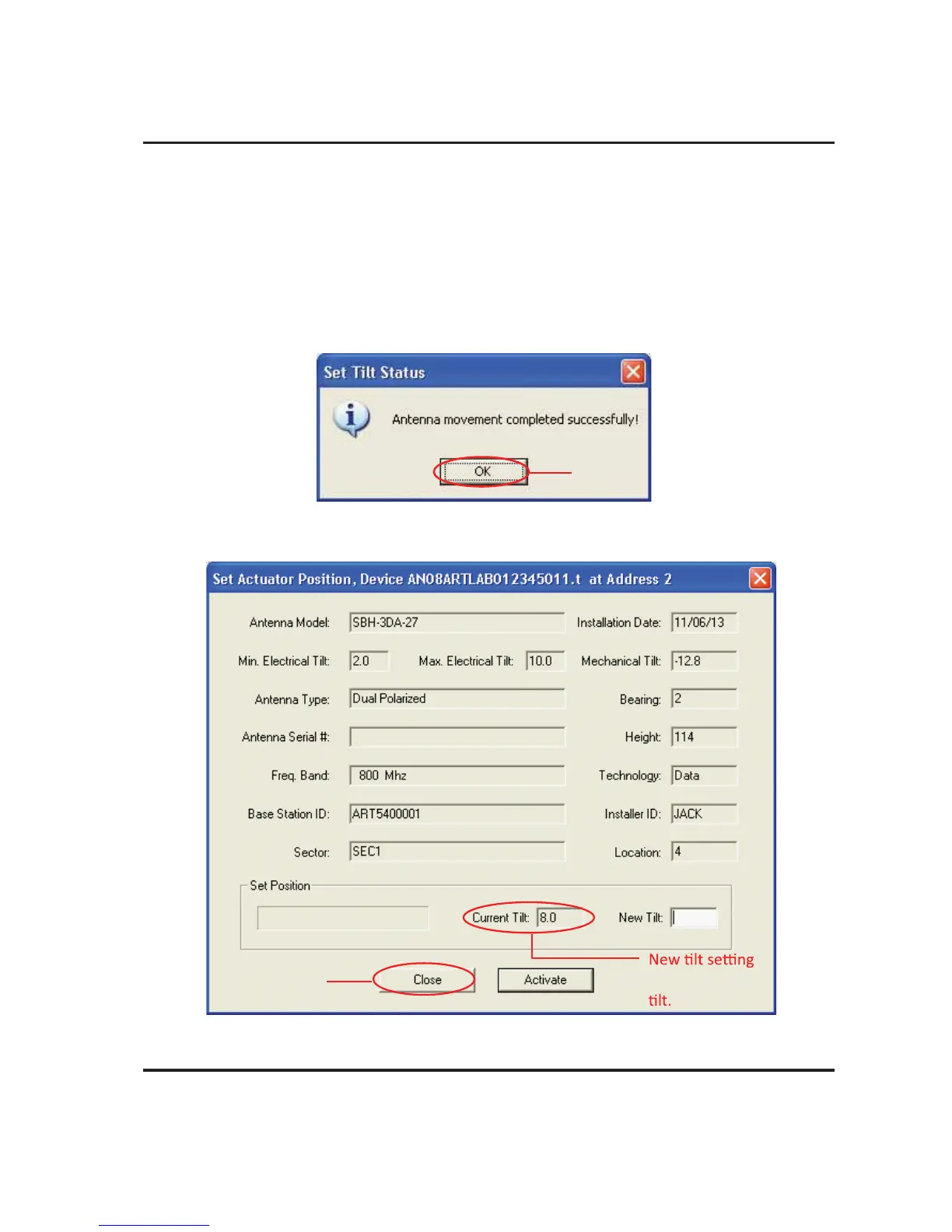

Figure 14-3. Electrical Tilt Adjustment Complete.
Figure 14-4. New Electrical Tilt Displays in Current Tilt Field.
Click OK.
becomes current
Click Close.
