Appendix A: 7-Pin Lemo definition

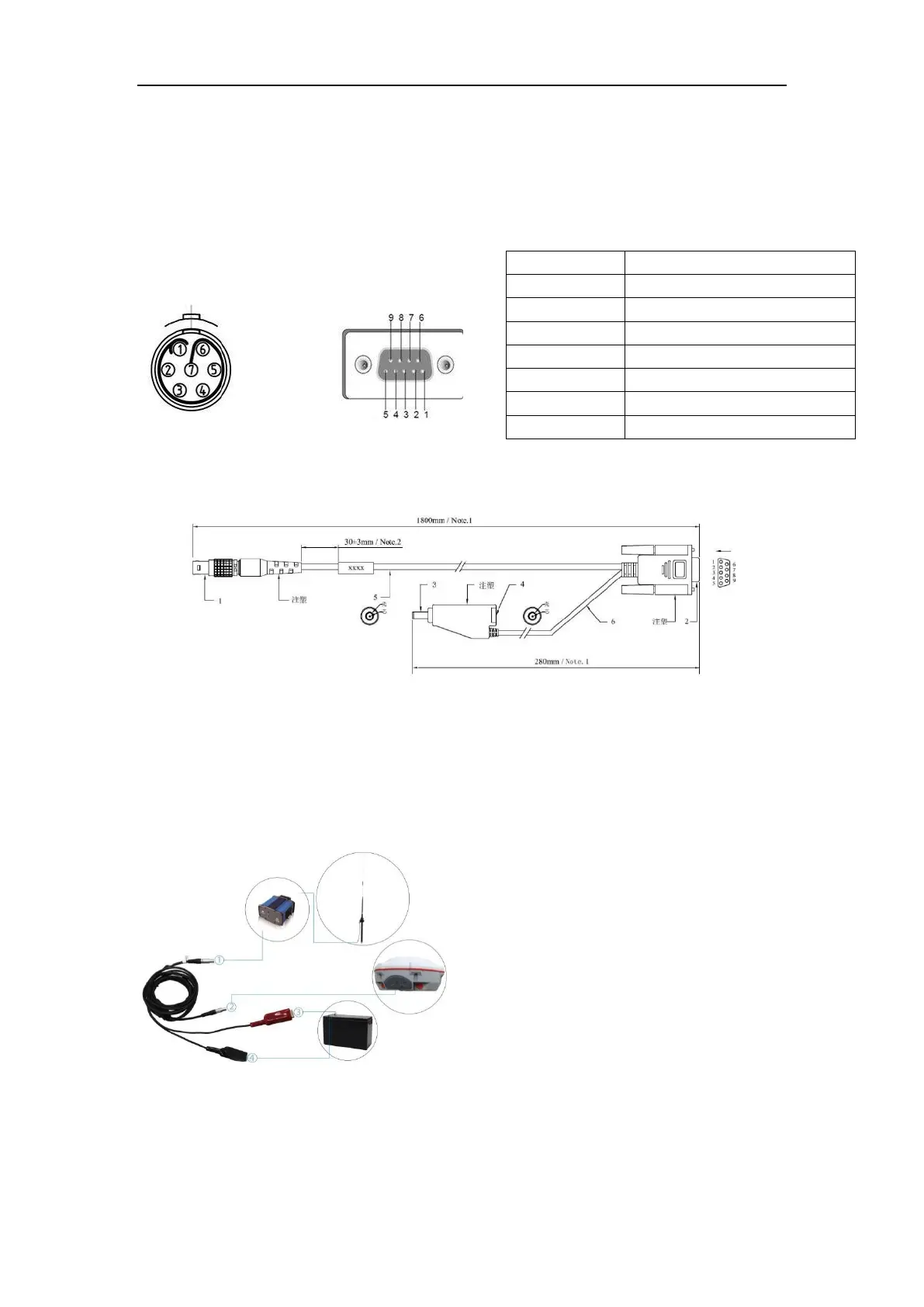

The following figures show the definition of 7-pin lemo, and the structure
of 7-pin Lemo to RS232 Cable:
Appendix B: Setting up of PDL
1. To set up external radio mode, connect all devices through provided cables
according to the figure below:
7 pin Lemo
Description
1
Signal GND
2
GND
3
TX data out (TXD)
4
NONE
5
NONE
6
Power In (+)
7
Serial data in (RXD)
○
1
5-pin LEMO port connected to the PDL
○
2
7-pin LEMO port connected to T300 receiver
○
3
Red alligator clip connected to the positive
of power supply
○
4
Black alligator clip connected to the
negative of power supply
