3-15
Compaq ProLiant 800 Server Reference Guide
Writer: Project: Installing Hardware Options Comments:
File Name: E-ch3.doc Last Saved On: 4/23/97 11:22 AM
2. Lift the heat sink and thermal pad off the processor.

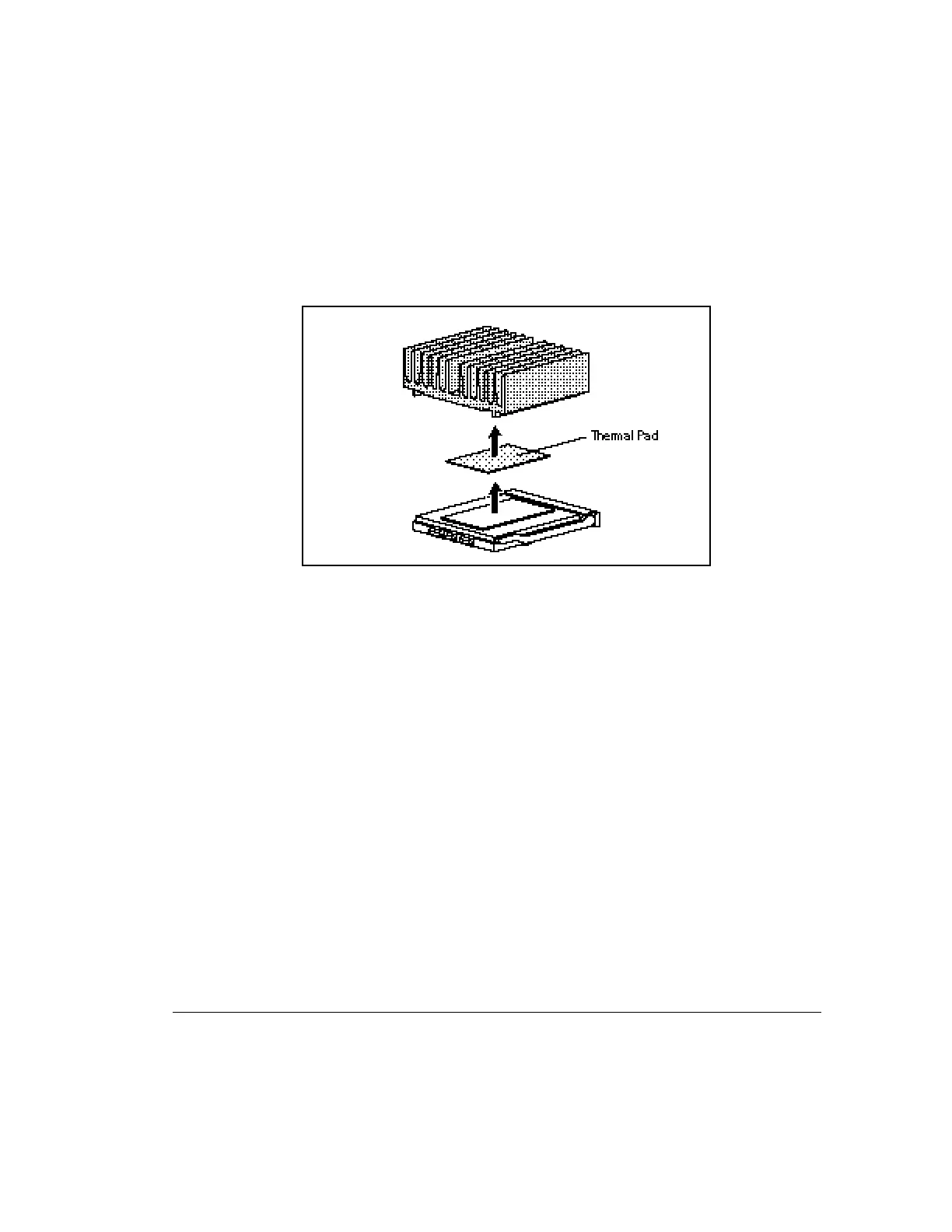

Figure 3-11. Removing the processor heat sink and thermal pad
