Technical Reference Guide
Appendix D
COMPAQ/NVIDIA VANTA LT
AGP GRAPHICS CARD
D. Appendix D Compaq/NVIDIA Vanta LT AGP Graphics Card
D.1 INTRODUCTION
This appendix describes the Compaq/NVIDIA Vanta LT AGP Graphics Card used in the standard
configuration on some models and also available as an option. This card (layout shown in the
following figure) installs in a system’s AGP slot. The Compaq/NVIDIA Vanta LT AGP Graphics
card (P/N 192174-002) provides high 2D performance as well as 3D capabilities.
Analog
Monito
r
Connector
SDRAM
SDRAM
SDRAM
SDRAM
NVIDIA
Vanta LT
Controller

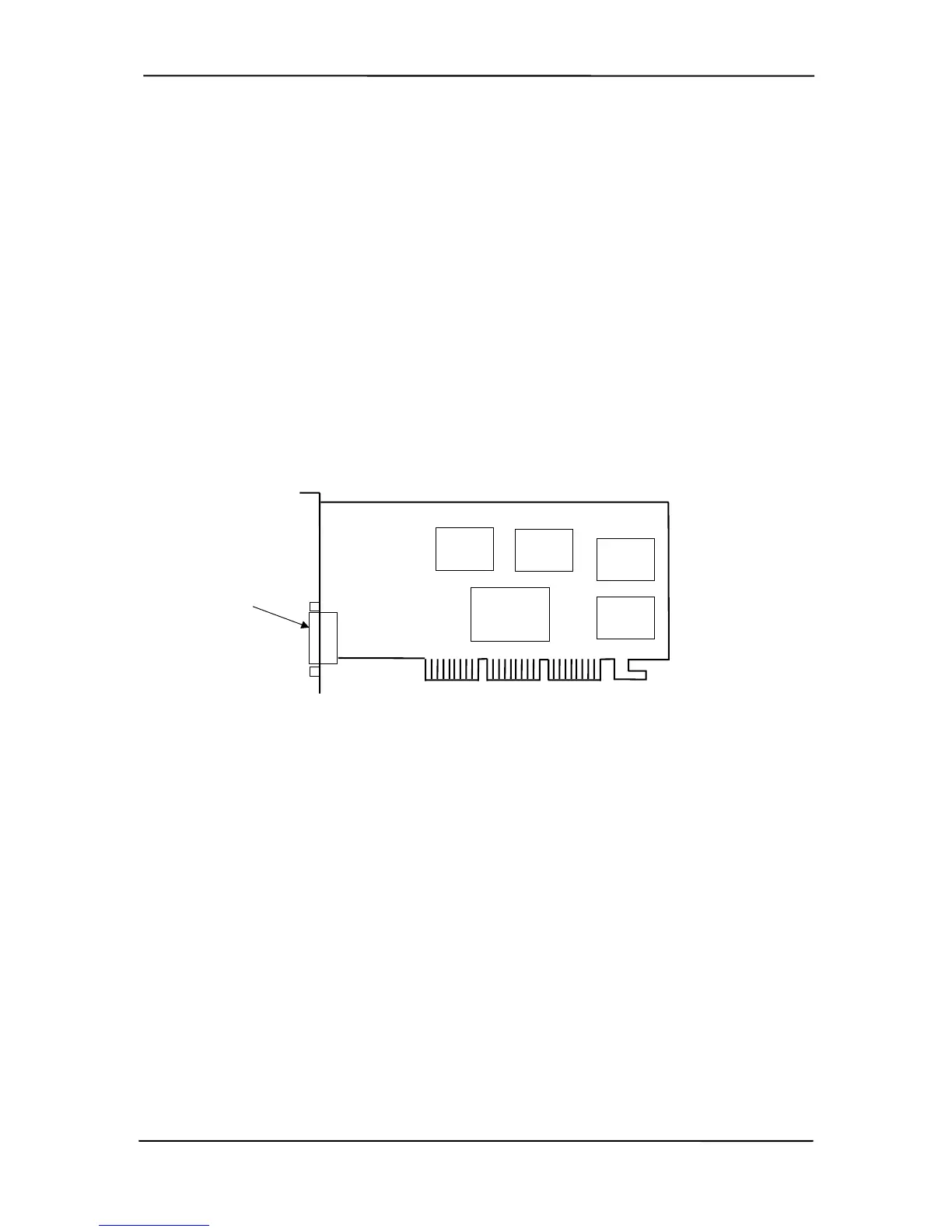

Figure D-1. Compaq/NVIDIA Vanta LT AGP Graphics Card (P/N 192174-002) Layout
This appendix covers the following subjects:
Functional description (D.2) page D-2
Display modes (D.3) page D-3
Software support information (D.4) page D-4
Monitor power management (D.5) page D-4
Connectors (D.6) page D-5
Compaq Personal Computers
Changed - October 2000
D-1
