Appendix H Compaq/Matrox G200 MMS Quad-Head PCI Graphics Card
H.7.2 ANALOG MONITOR CONNECTOR
The analog adapter cable supplied with the analog version of the graphics card kit provides two
DB-15 VGA monitor connectors.
1 2 3 4 5
6
7
8 9
10
11
12 13
14
15

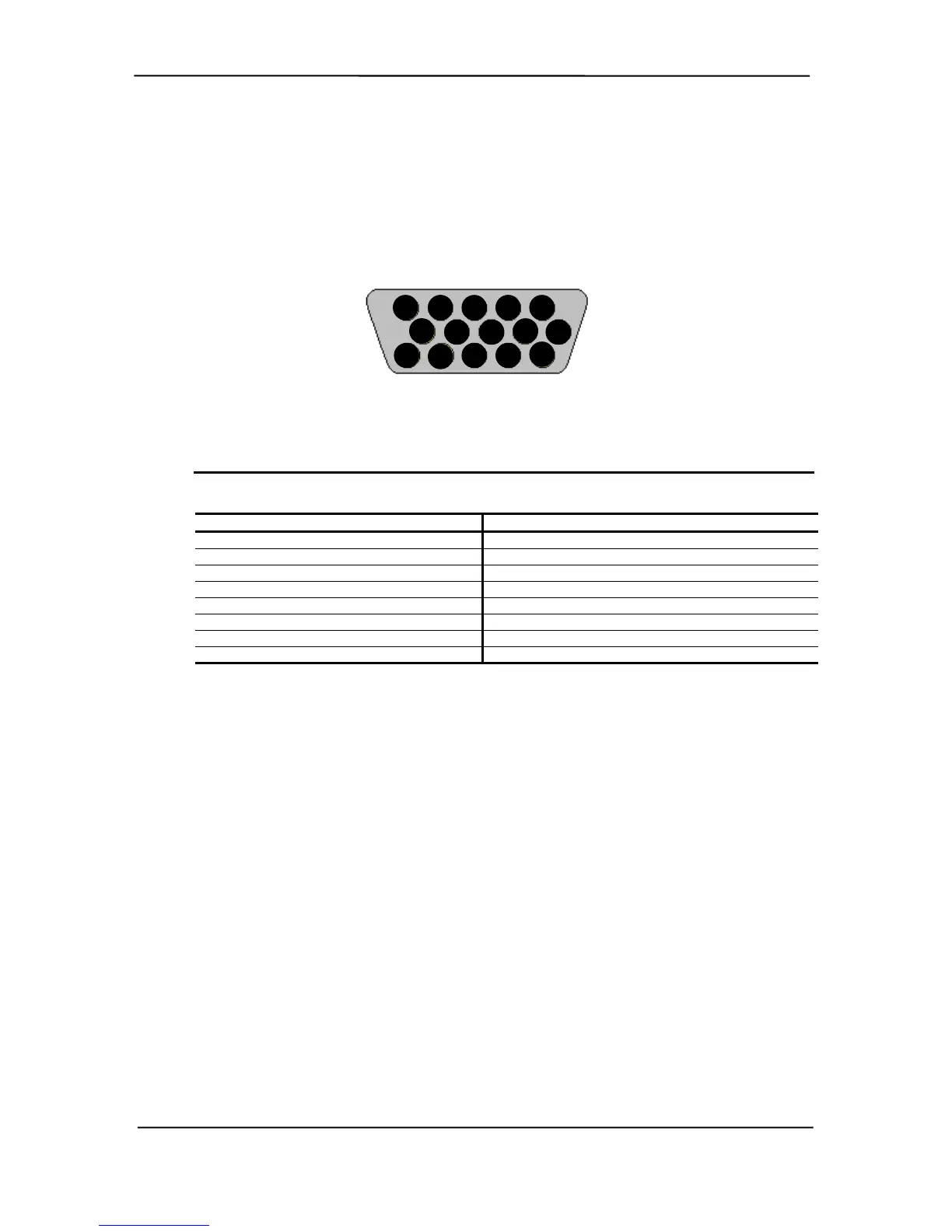

Figure H-5. Analog (VGA) Monitor Connector (One of two female DB-15 connectors).
Table H-4. DB-15 Monitor Connector Pinout
Table H-4.
DB-15 Monitor Connector Pinout
Pin
Signal
Description Pin Signal Description
1 R Red Analog 9 PWR +5 VDC (fused) [1]
2 G Blue Analog 10 GND Ground
3 B Green Analog 11 NC Not Connected
4 NC Not Connected 12 SDA DDC2-B Data
5 GND Ground 13 HSync Horizontal Sync
6 R GND Red Analog Ground 14 VSync Vertical Sync
7 G GND Green Analog Ground 15 SCL DDC2-B Clock
8 B GND Blue Analog Ground -- -- --
NOTES:
[1] Fuse automatically resets when excessive load is removed.
Compaq Personal Computers
Original - March 2002
H-8
