Technical Reference Guide
2.3.1 CABINET LAYOUTS
2.3.1.1 Front Views
12
11
10
8
5
3
2
1
7
9
4
6
7
12
11
10
9
4
5
3
2
1
6
8
Evo D300/D500 Desktop
Evo or Workstation Small Form Factor
8
7
9
11
12
10
1
3
2
4
5
6
11
12
10
1
3
2
4
5
6
8
7
9
Evo D300/D500
Configurable Minitower
(as a Minitower)
Workstation W4000
Configurable Minitower
(as a Minitower)
Item
Description
1 CD-ROM drive headphone jack
2 CD-ROM drive volume control
3 CD-ROM drive activity LED
4 CD-ROM drive open/close button
5 1.44-MB diskette drive activity LED
6 1.44-MB diskette drive eject button
7 Microphone In Jack
8 Headphone Out Jack
9 Universal Serial Bus Connector
10 Power LED
11 Power Button
12 Hard Drive Activity LED

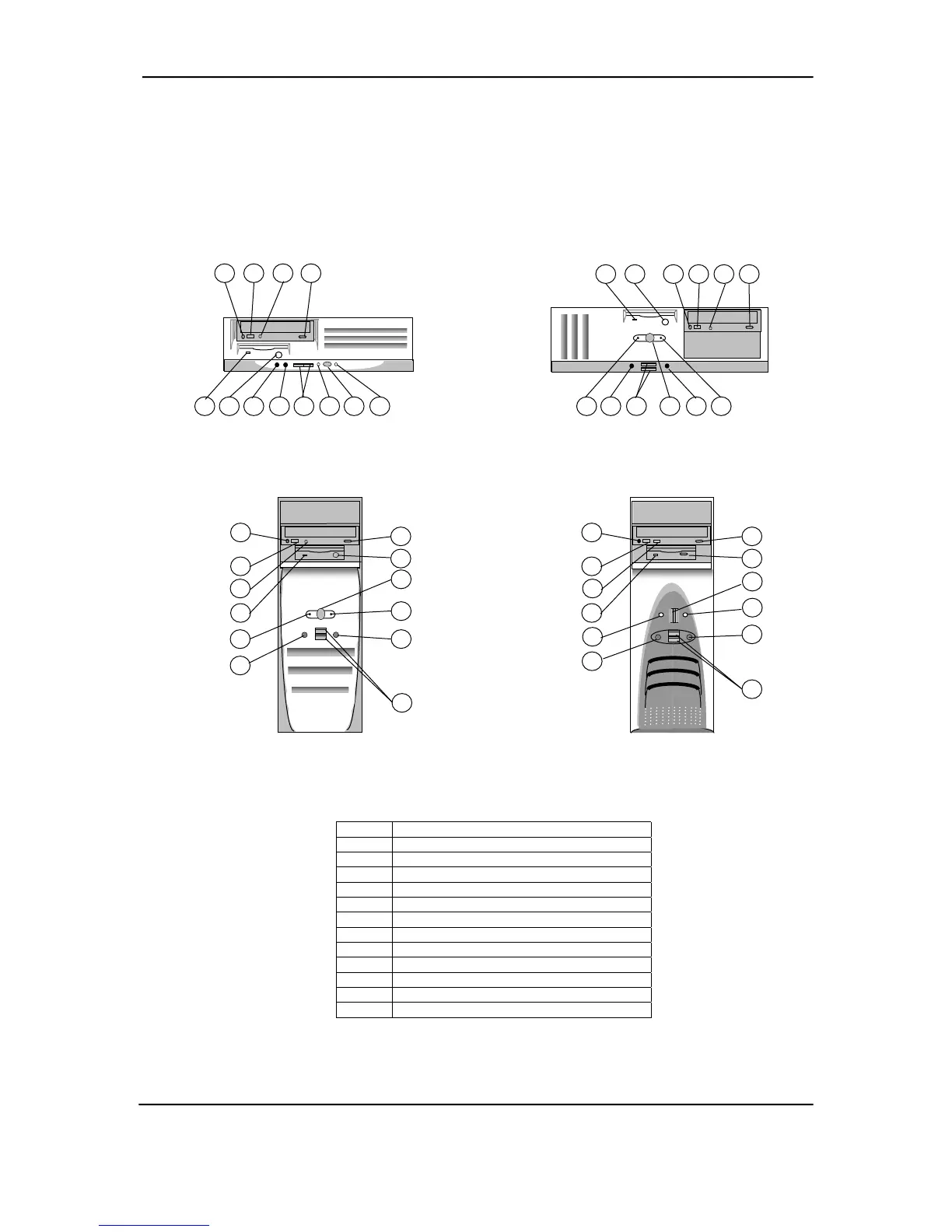

Figure 2–2. Compaq Evos and Workstations, Front Views
Compaq Evo and Workstation Personal Computers
Featuring the Intel Pentium 4 Processor
Second Edition - January 2003
2-5
