Technical Reference Guide
H.7 CONNECTORS
There are four types of connectors associated with the graphics card; an analog monitor
connector, digital monitor connector, adapter cable connectors and the card edge connector.
NOTE: The graphic card’s edge connector mates with a PCI slot connector on the
system board. This interface is described in chapter 4 of this guide.
H.7.1 ADAPTER CABLE CONNECTOR
A display or monitor cannot be attached directly to the graphics card. The graphics card includes
two connectors for attaching adapter cables that are used to attach the monitor(s).
P60
P16
P1
P31
P45
P30
P15 P1

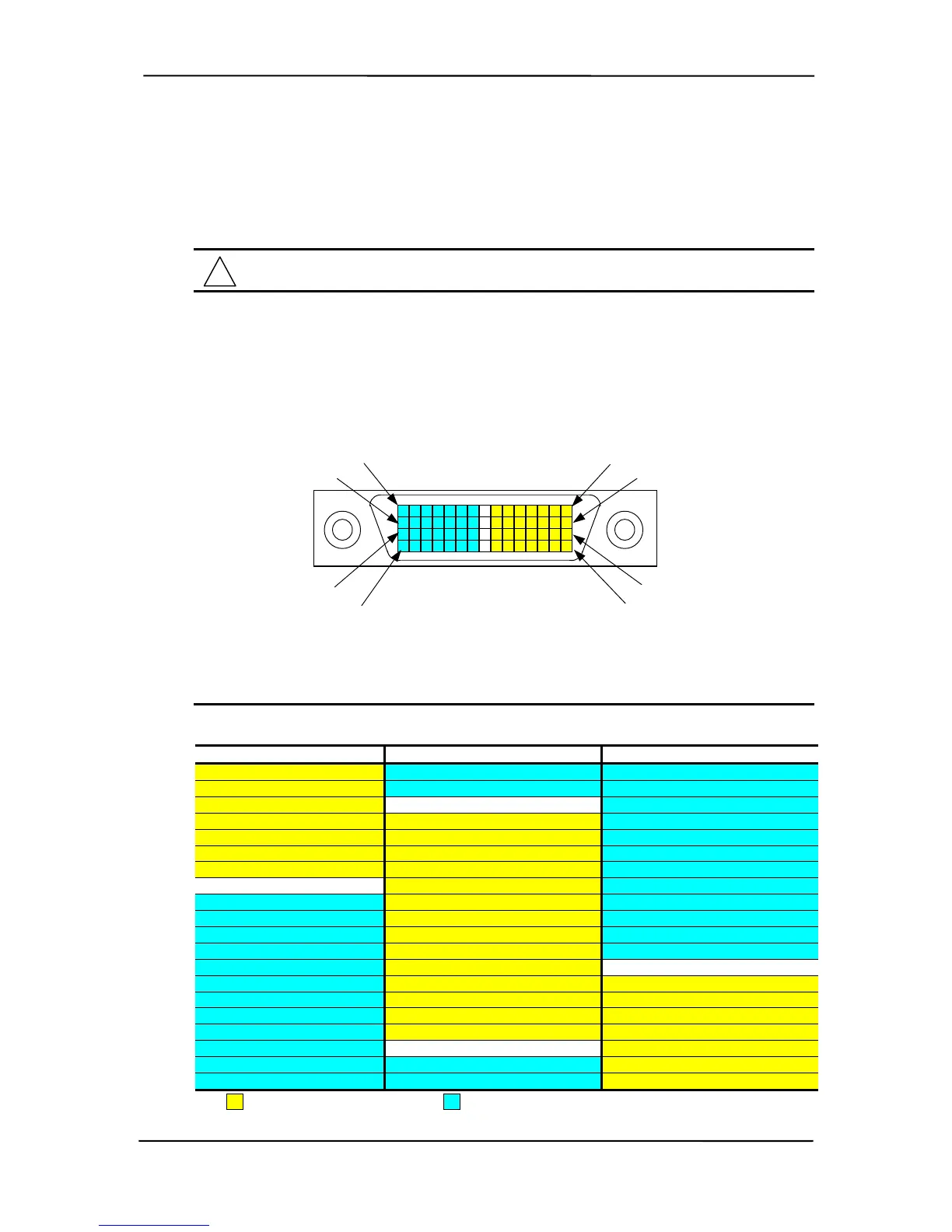

Figure H-4. Adapter Cable Connector, (One of two as viewed from rear).
Table H–3. Adapter Cable Connector Pinout
Table H-3.
Adapter Cable Connector Pinout
Pin
Description Pin Description Pin Description
1 Ground 21 Not used 41 Not used
2 Analog Red 22 Not used 42 TMDS Clock Data -
3 Analog Blue 23 Not used 43 TMDS Cllock Data +
4 Ground 24 Not used 44 TMDS Data 1 -
5 5 VDC 25 Not used 45 TMDS Data 1+
6 SCL (DDC) 26 Not used 46 Ground
7 SDA (DDC) 27 TMDS Data 2 - 47 Analog Green
8 Ground 28 TMDS Data 2 + 48 Not used
9 SDA (DDC) 29 TMDS Data 0 - 49 Ground
10 SCL (DDC) 30 TMDS Data 0 + 50 HSYNC
11 5 VDC 31 TMDS Data 1 + 51 VSYNC
12 Ground 32 TMDS Data 1 - 52 Ground
13 Analog Blue 33 TMDS Clock Data + 53 Not used
14 Analog Red 34 TMDS Clock Data - 54 Ground
15 Ground 35 Not used 55 VSYNC
16 TMDS Data 0 + 36 Hot plug detect 56 HSYNC
17 TMDS Data 0 - 37 Not used 57 Ground
18 TMDS Data 2 + 38 Not used 58 Not used
19 TMDS Data 2 - 39 Not used 59 Analog Green
20 Not used 40 Hot plug detect 60 Ground
Monitor #1 or #3 Monitor #2 or #4
Compaq Personal Computers
Original - March 2002
H-7
