Compaq W4000 User Manual

Appendix E Compaq/NVIDIA Quadro2 EX/MXR AGP Graphics Cards
E.2 FUNCTIONAL DESCRIPTION
The NVIDIA Quadro2 MXR Graphics Card provides high performance 2D and 3D display
imaging. The card’s AGP design provides an economical approach to 3D processing by off-
loading 3D effects such as texturing, z-buffering and alpha blending to the system memory while
32 megabytes of on-board SDRAM stores the main display image.
Frame Buffer
DVI
Monitor
Connector
(Quadro MXR only)
DVI
Digital Video
Interface
350-MHz
RAM
DAC
AGP 4X
I/F
32 MB
SDRAM
2D/VGA
Engine
VSync
Card
Edge
Connector
AGP
Bus
Memory
I/F
CRT
Controller
Video
Scalar
3D Array
Engine
NVIDIA NV11GL Graphics Controller
RGB
Analog
Monitor
Connector
128-bit
166-MHz
Data Bus
HSync
BIOS
ROM

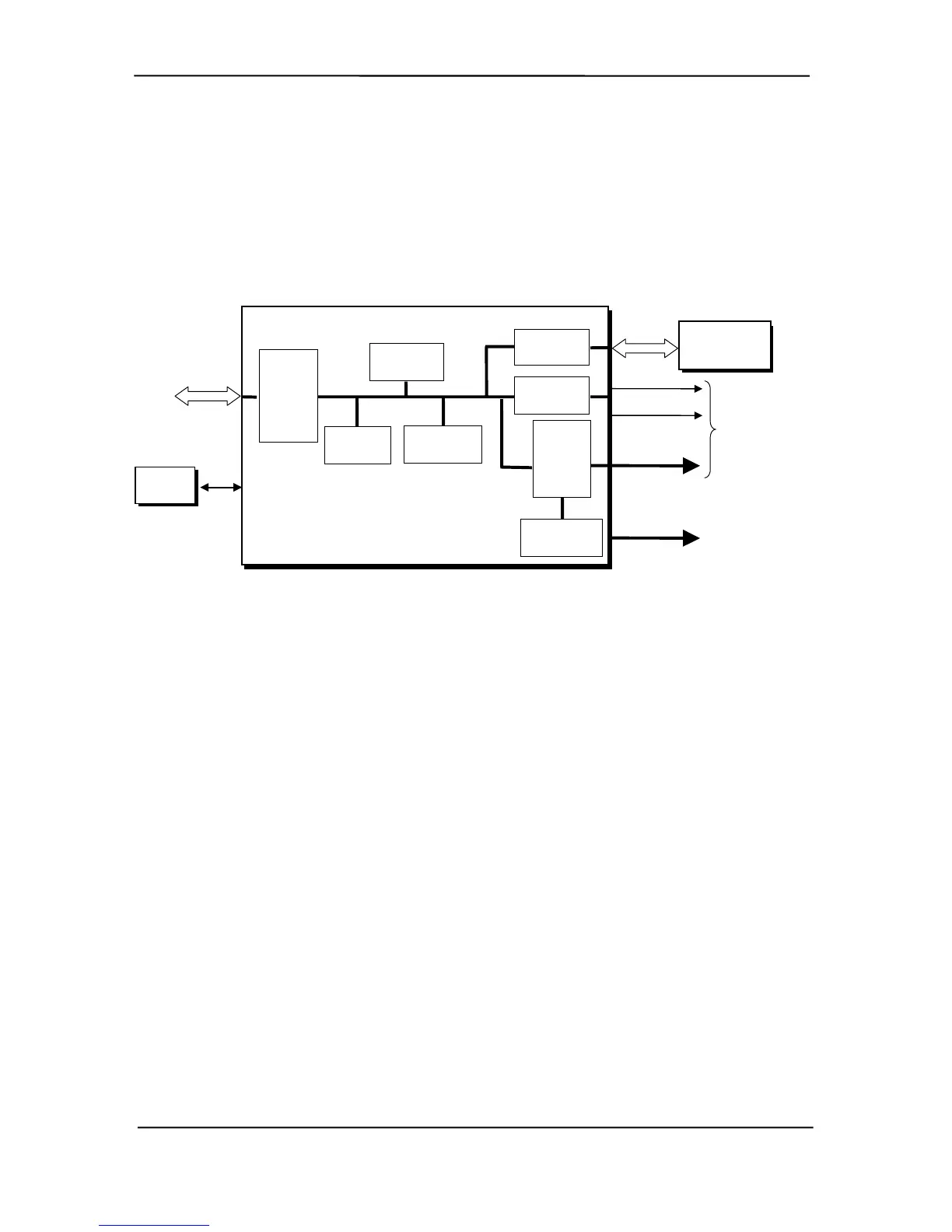

Figure E-2. NVIDIA Quadro2 EX/MXR Graphics Card Block diagram
The NVIDIA Quadro2 EX/MXR Graphics Cards include the following features:
♦ 32-MB SDRAM frame buffer using 128-bit 183-MHz access
♦ AGP 4X transfers with sideband addressing
♦ 2D drawing engine
♦ 3D rendering engine
♦ 350-MHz RAMDAC
♦ 32-bit Z/stencil buffer eliminates hidden screen portions for faster loading
♦ 32-bit color for increased image quality
♦ 30-fps full-screen DVD playback
♦ Dual-monitor support with a PCI graphics card
♦ DVI monitor support (Quadro MXR only)
The NVIDIA Quadro2 MXR provides, in addition to the RGB monitor connector, a digital video
interface (DVI) connector that can directly drive a DVI monitor or another RGB monitor through
an adapter.
Compaq Personal Computers
Changed - October2001
E-2
