2.3.2 CHASSIS LAYOUTS
This section describes the internal layouts of the chassis. For detailed information on servicing
the chassis refer to the multimedia training CD-ROM and/or the maintenance and service guide
for these systems.
The chassis layout for the Small Form Factor is shown in Figure 2-4. Service features include:
♦ Easily-removable card cage assembly.
♦ Tilting drive bay assembly (for easy access to processor and memory sockets).
Processor Fan
PCI Conn. 2 (Slot 2)
PCI Conn. 1 (Slot 1)
Slots On Backplane,
Rear View
Lower Drive Bay
Speaker Assembly [1]
Hood Lock Solenoid
(Optional)
Card Cage
Assembly
System Board
Upper Drive Bays
(Tilting Assembly)
Power Supply
Back
Front

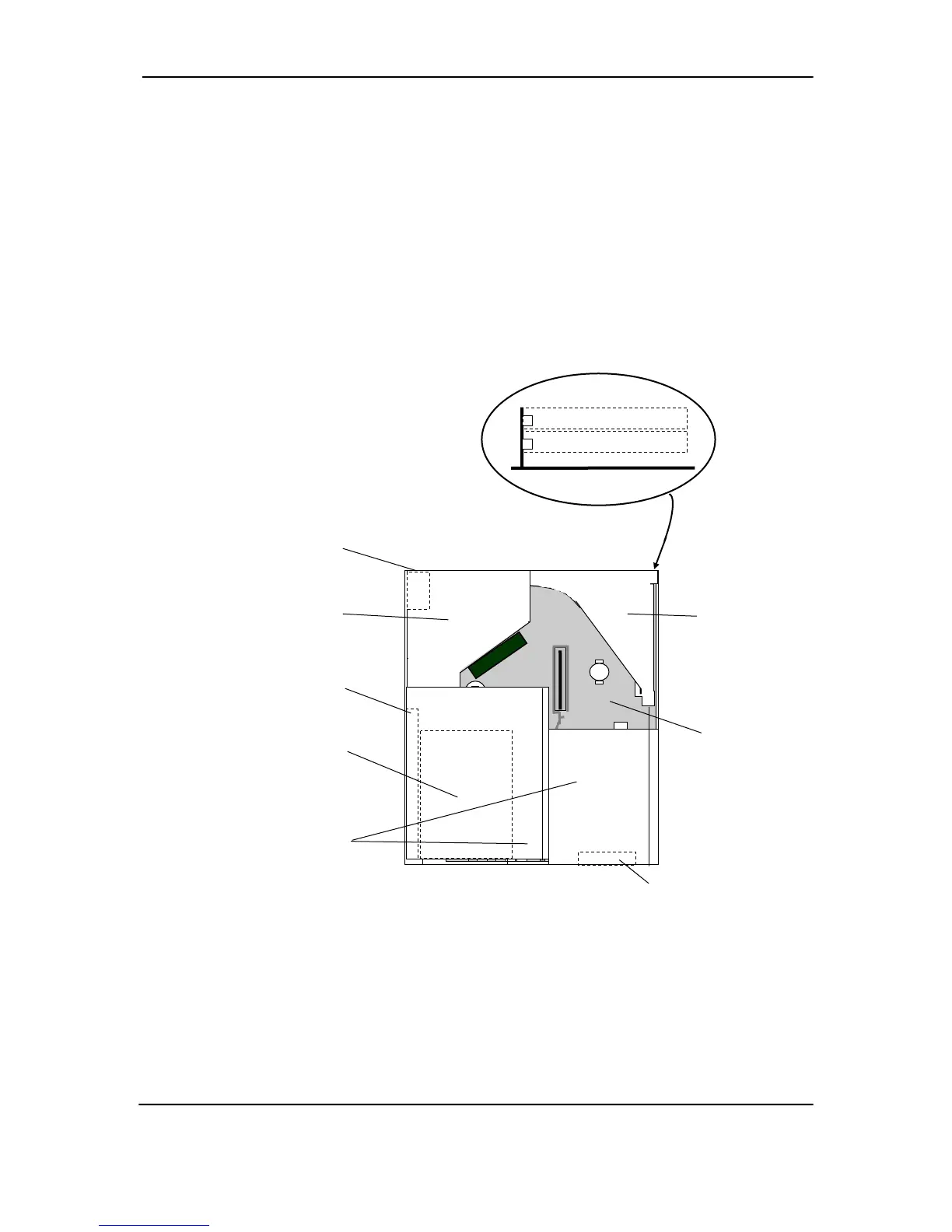

Figure 2–4. Small Form Factor Chassis Layout, Top View
Compaq Evo and Workstation Personal Computers
Featuring the Intel Pentium 4 Processor
Second Edition - January 2003
2-7
