Compumatic MINIDART v3 - Assemble of the Metallic Stand

-10-
2.4- ASSEMBLE OF THE METALLIC STAND
Minidart machine can be mounted in the optional metallic stand.
The procedure of assembling is detailed below. See figure 4.
INTRODUCTION AND OBSERVATIONS
2.4- ASSEMBLE OF THE METALLIC STAND

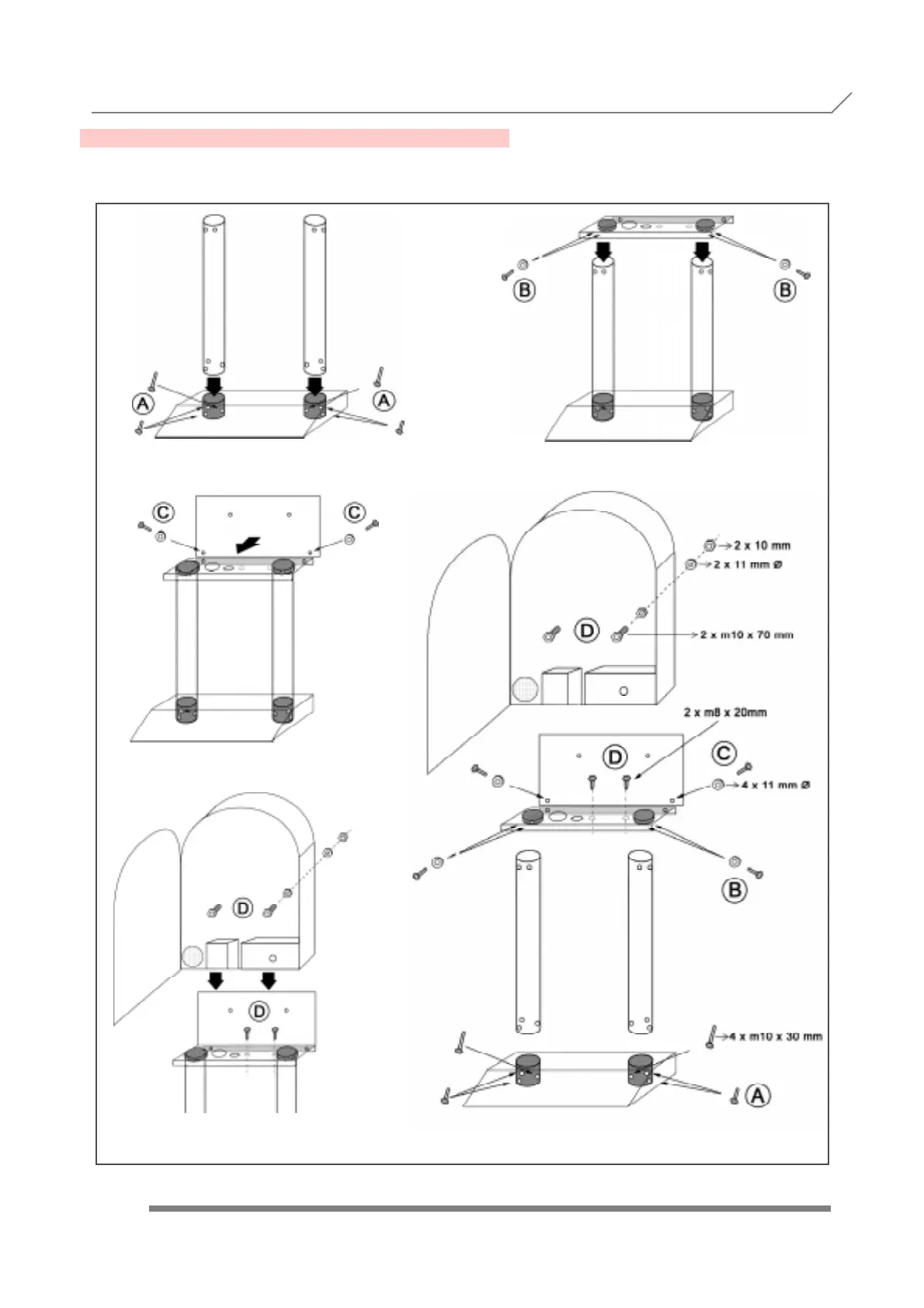

FIGURE 4
1.- Insert the metallic cylinders in the
base and fix it with the screws A.
2.- Fix the upper base to the metallic
cylinders with the screws B.
3.- Join the back support to the upper
base with the screws C.
4.- Join the machine to the upper base
and the back support with the screws D.
