Condair EL2 - Steam Humidifier Construction

10

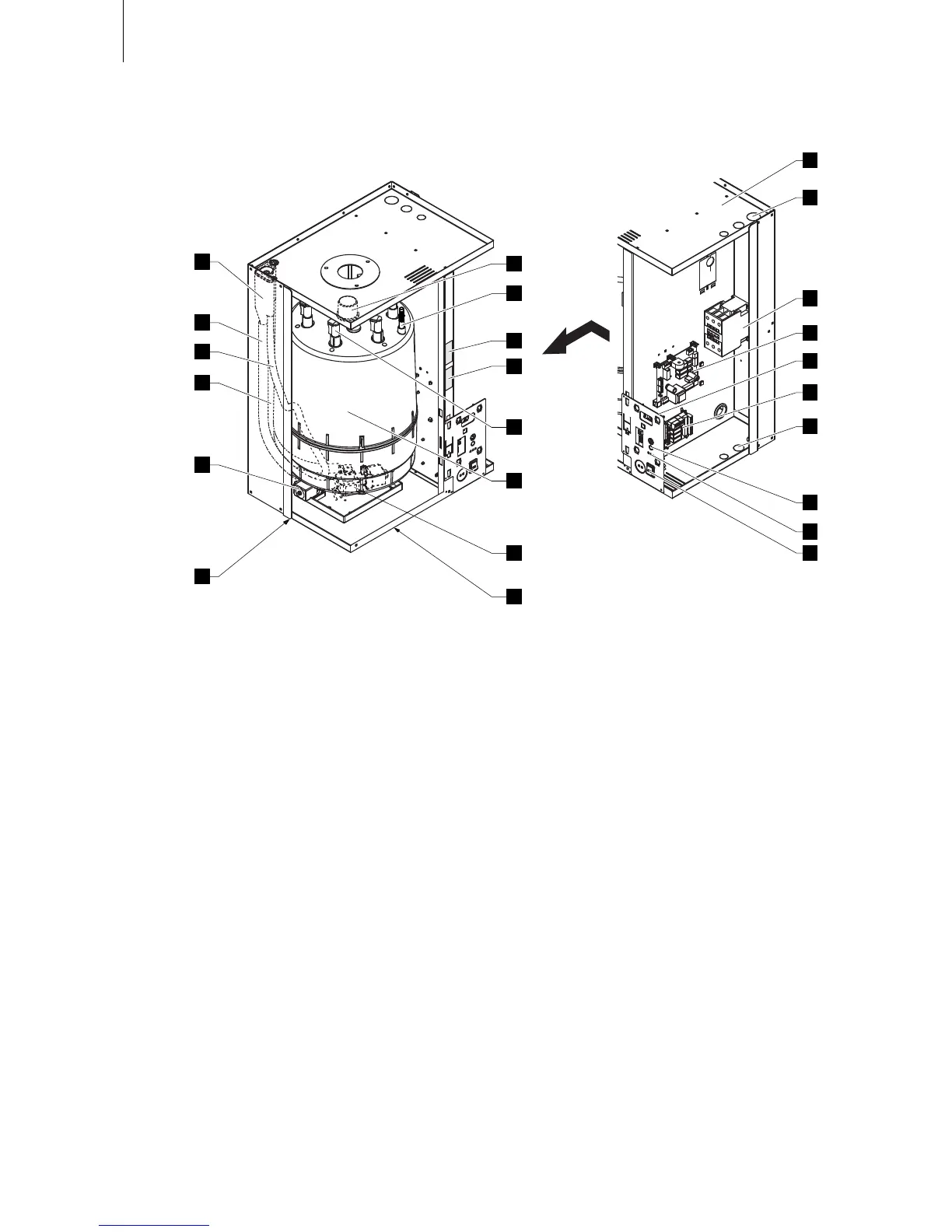

3.3 Steamhumidierconstruction
 1 Housing(small,large)
2 Cable openings, top side
3 Main contactor
4 Power board
5 Control board with EL2 Card
 6 Remoteoperatingandfault
indicationboard(option)
7 Cable openings, bottom side
 8 Drain/infokey
9 Operation status indicators
10 Unit switch
11 Water cup
12 Filling hose
13 Water supply hose
14 Overowhose
15 Inlet valve
16 watersupplyconnector(notvisible)
17 Drainconnector(notvisible)
18 Drainvalve
19 Steam cylinder
20 Electrode plug
21 Level sensor
22 Steam outlet
23 Type plate
24 DataplateEL2Card
The illustration above shows the large unit
18
17
1
2
3
8
4
5
7
6
9
10
19
20
21
22
23
24
11
12
13
14
16
15
