5.4.4 Positioning and mounting of the fan unit
FAN3 EL2 M FAN3 EL2 L
m
D
max. 8 kg/h 15 kg/h 32 kg/h 45 kg/h
A min. 3.0 m 6.0 m 8.0 m 10.0 m
B min. 0.5 m 0.7 m 1.0 m 1.5 m
C ca. 2.2 m 2.2 m 2.2 m 2.2 m
D ca. 0.5 m 0.7 m 1.0 m 1.5 m
E min. 0.35 m
E max. 2.0 m
Note:Theminimumspacesinthetableapplyforaroomatmosphereof15°Candmax.60%rh.For
lower temperatures and/or higher humidity the values should be adjusted accordingly
Note:Inordertoachieveauniformdistributionofthehumiditywithintheroom,additionalfactors
such as the room size, the room height, etc., must be taken into consideration besides observing the
minimumdistances.Ifyouhavequestionsconcerningthedirectroomhumidication,pleasecontact
your Condair supplier.
Further information is provided in the separate installation and operating instructions for the fan
unit.

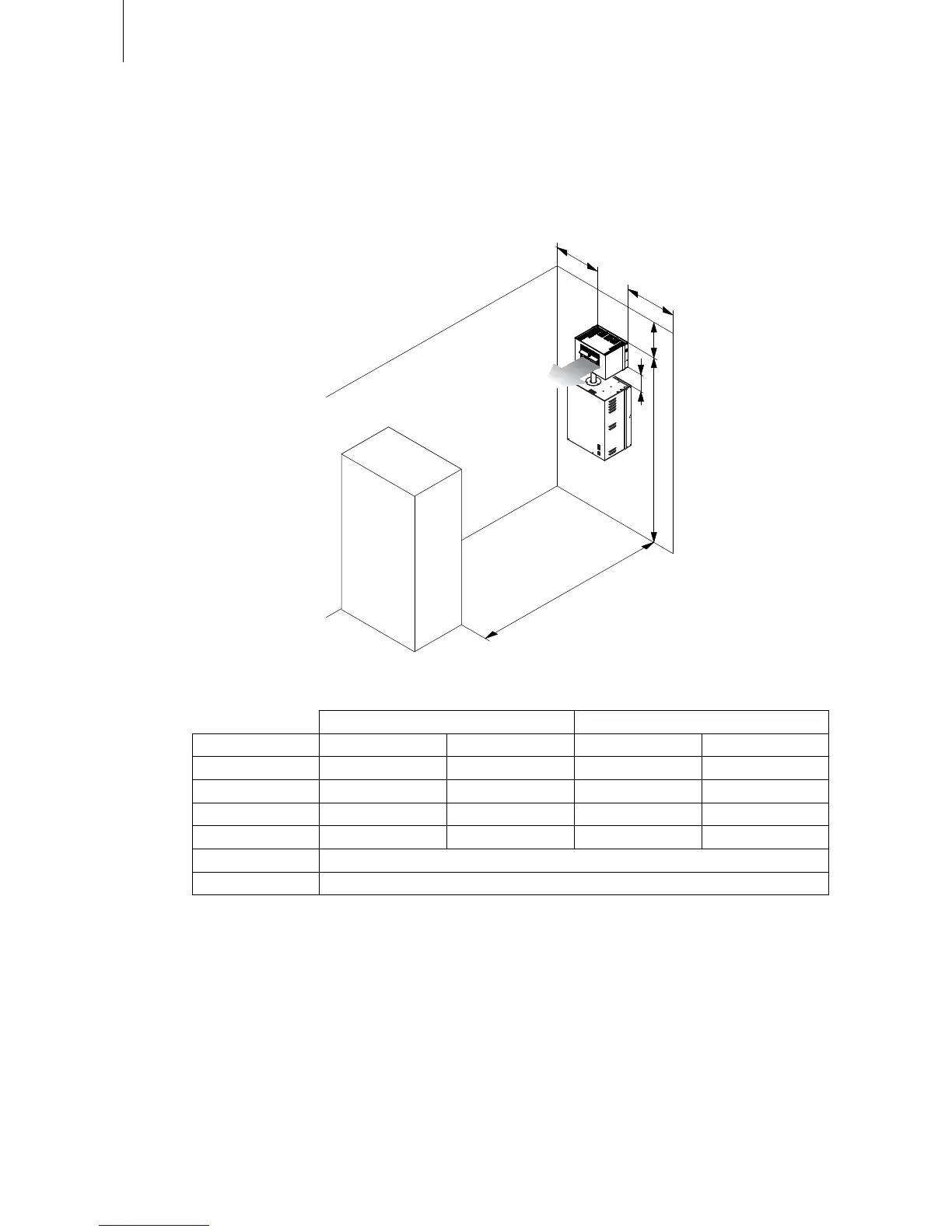

Thefanunitismountedonthewallseparately above the unit.Toallowthesteamcomingfrom
thefanunittospreadoutevenly,withoutcondensingonobstacles(ceilings,joists,pillars,etc.),the
followingminimumdimensionsmustbeobserved
whenselectingthelocationforthefanunit.
A
C
B
D
D
E
