Kit Installation

2-20 February 2016 | 256574-ENG R01

2.4 Incubation – IN Kit

Depending on order options, the chamber may be delivered with the kit installed. The kit is easy to

install using only a Phillips screwdriver.

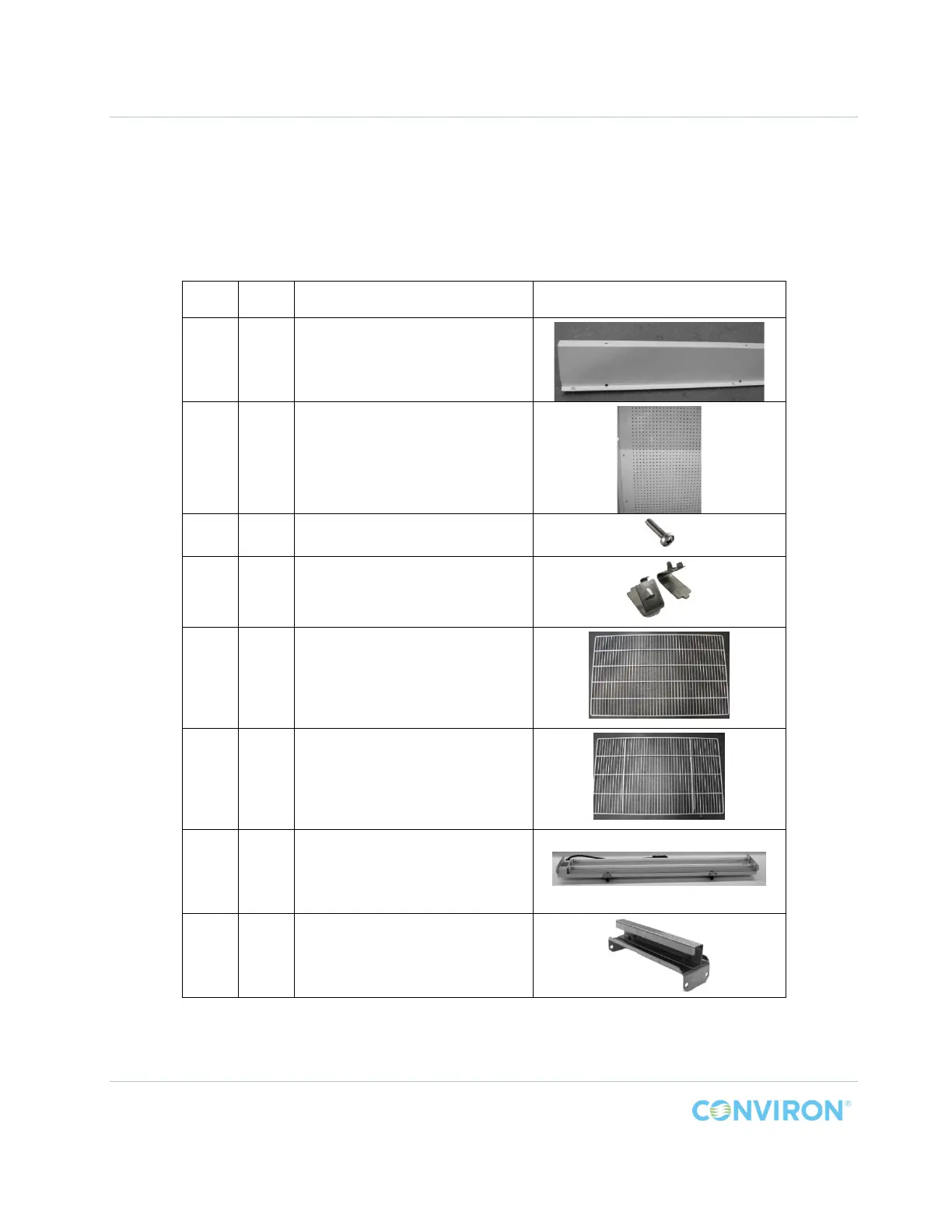

2.4.1 IN Kit Parts List

Item Qty. Description Photo

A 1 Back Wall Plenum Bottom Support

B 1 Back Wall Plenum

C 16 Screw M4 x 8mm, Pan Head

D 16 Wire Shelf Support Bracket

E 4 Wire Shelf (without lamp support)

F 1 Wire Shelf (with lamp support)

G 4 Lamp Fixture

H 8 Lamp Fixture Support
