A1000 INSTALLATION, OPERATION, & MAINTENANCE MANUAL

February 2016 | 256574-ENG

R01 2-27

2.5.2 AR Kit Installation

This support is very important because it directs the airflow through the back wall plenum at equal

pressure. A loose installation will not distribute the airflow evenly.

To install the back wall plenum bottom support:

Install the support, Item A, onto the back wall of the chamber with four (4) screws, Item C (Figure

2-32) and tighten the screws to full resistance.



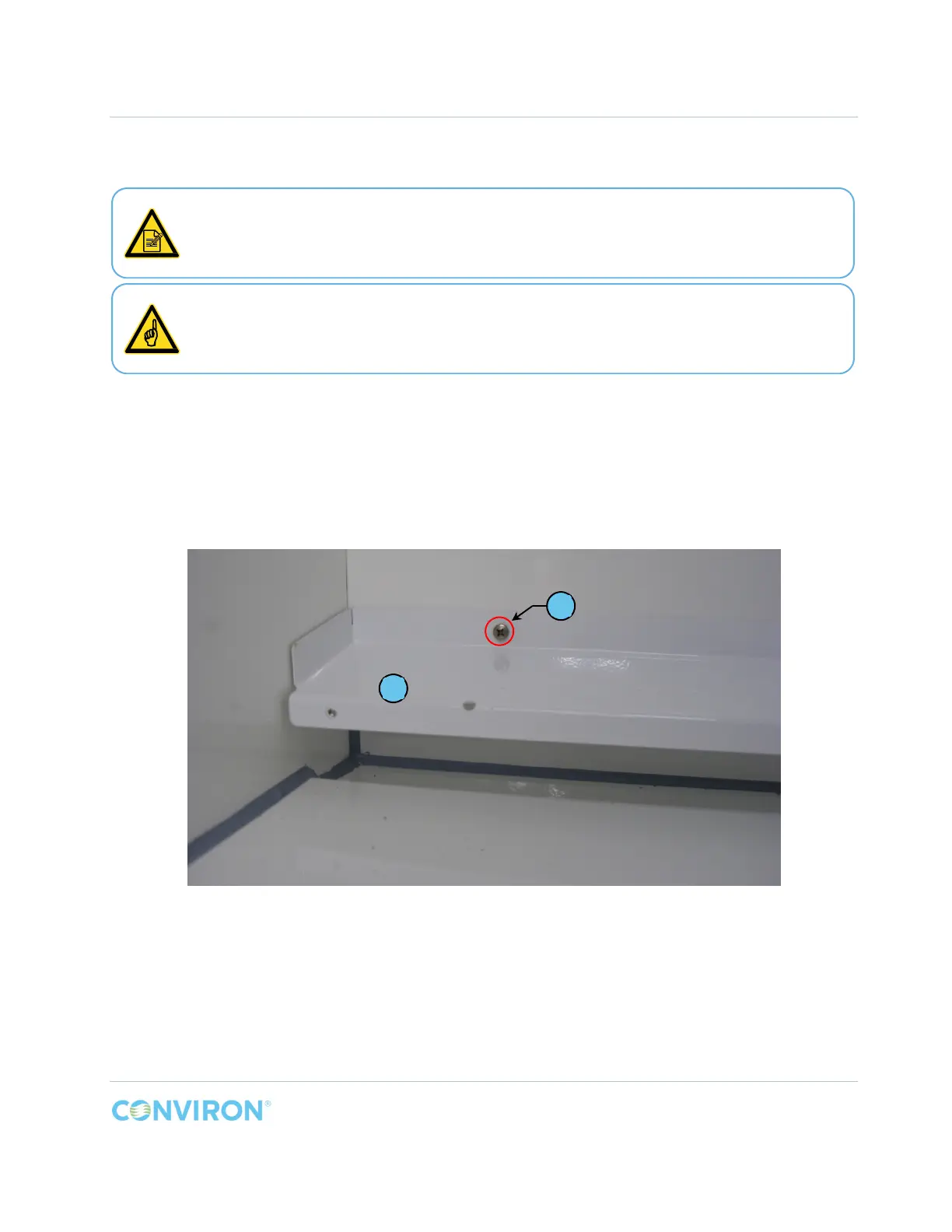

Figure 2-32 AR Back Wall Plenum Bottom Support Installed

The back wall plenum bottom support and the back wall plenum may be installed at

the factory.

Install the support with the large flange pointing upward as shown in Figure 2-32.
