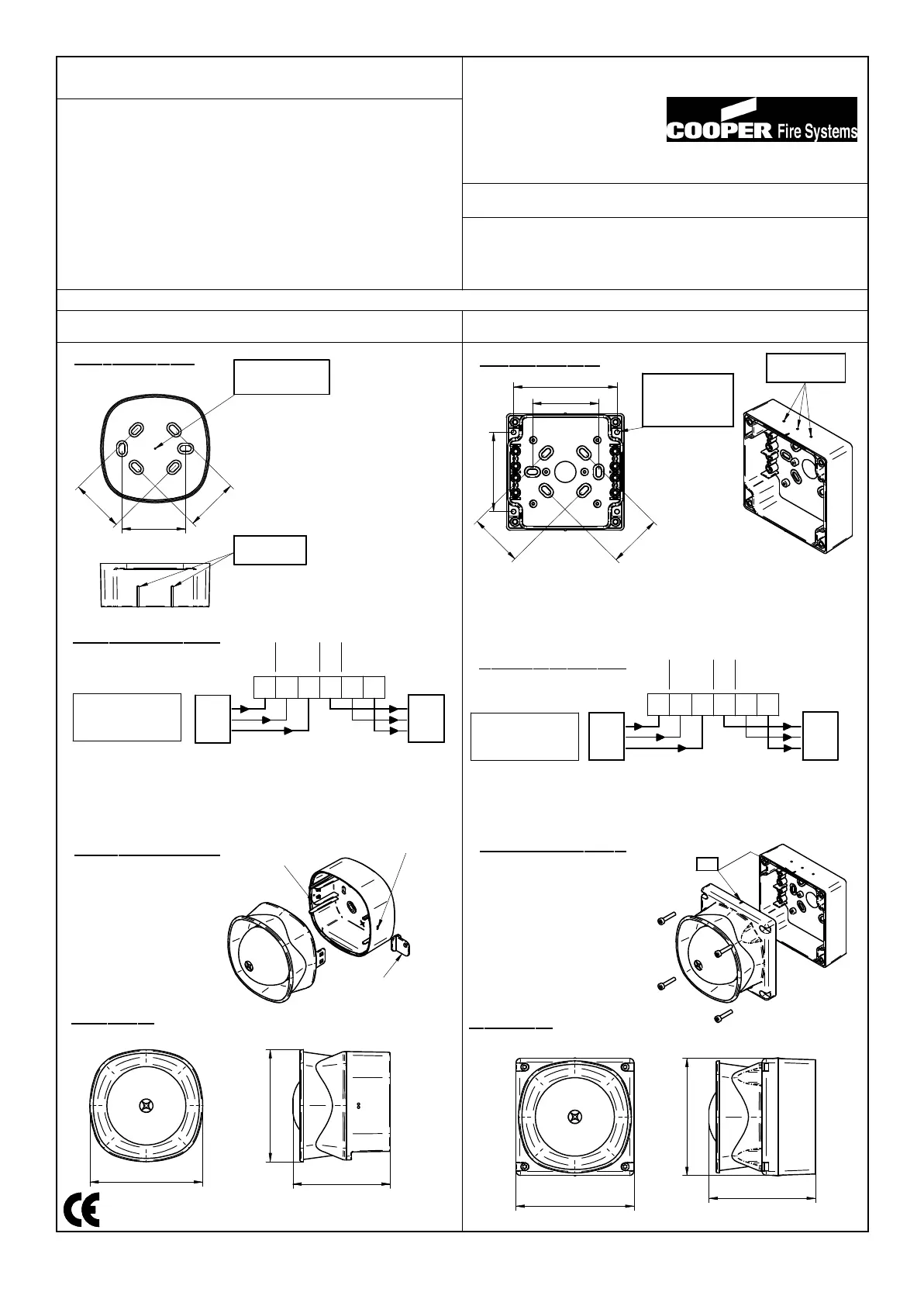

CASB383 Wall Sounder Beacon Specification
Order Codes
CASB383
CASB383/WP
Addressable Wall Sounder/Beacon
Addressable Wall Sounder/Beacon
IP66
Installation Details
1. Mounting base
(ii) Drill out the required
fixing holes
(i) Drill required holes for
cable gland fixing
3. Sounder assembly
(i) Clip sounder onto base
2. Connection details
Dimensions
25-5799 Iss A
60
5
0
5
0
Drill position
for glands
Drill position for
rear cable entry
(iii) Fix to mounting suface
using two suitable screws
(ii) Ensure cables do
not put stress on
the PCB
75
5
0
50
62
97
1. Mounting base
(ii) Fix to mounting surface using four suitable screws
(i) Drill required holes for cable gland fixing (top or bottom)
and ensure cables are correctly sealed for IP66 integrity.
Drill positions
for glands
Use these four
holes to ensure
IP66 integrity
3. Sounder assembly
(iii) Bolt sounder onto
base
(ii) Ensure cables do
not put stress on
the PCB
Dimensions
Wall Sounder/Beacon (Type A / IP21C) Wall Sounder/Beacon IP66 (Type B / IP33C)
(i) Location ribs must align
on base and sounder
2. Connection details
WARNING: Do NOT use high voltage testers when beacons
or control panel are connected to the system.
Earth screen of cable to be continuous between sounders.
- +
E
- +
E
- +
E
- +
E
Supply Voltage
Cable Size / type
Standby current
Operating temperature
: 17 ~ 32 Vdc
: 0.5 ~ 2.5mm/ FIRETUF, FP200 or MICC
: < 450 uA
: -10 to +55 degrees C (95%RH)
Tones
(set by panel)
Beacon
Sound output @ +/-3dB
(set by panel)
Environment Category
Compliance
: Low volume : 92dB @ <6.5mA
: Medium volume : 97dB @ <7.5mA
: High volume : 100dB @ <8.5mA
: Type A/B
: EN54-3 Fire Alarm Device - Sounder
: Continuous 984Hz
: Pulsed 984 / 0Hz pulse 1Hz
: Two Tone 644 / 984Hz @ 1Hz cycle
: Slow whoop 500-1200Hz in 3.5 seconds / 0.5secs gap
: 1Hz Flash
WARNING: Do NOT use high voltage testers if ANY
equipment is connected to the system.
Earth screen must be continuous along entire length of loop.
Guides
To Un-Lock use key provided
Key
Holes
RIB
All products meet minimum requirements of IP33C in
accordance with EN54-3
Note: Polar dispersion information available in the Technical manual.(Ref:M05-021)
