Corken 91 - Page 51

All dimensions are in inches (millimeters).
Appendix D—Outline Dimensions

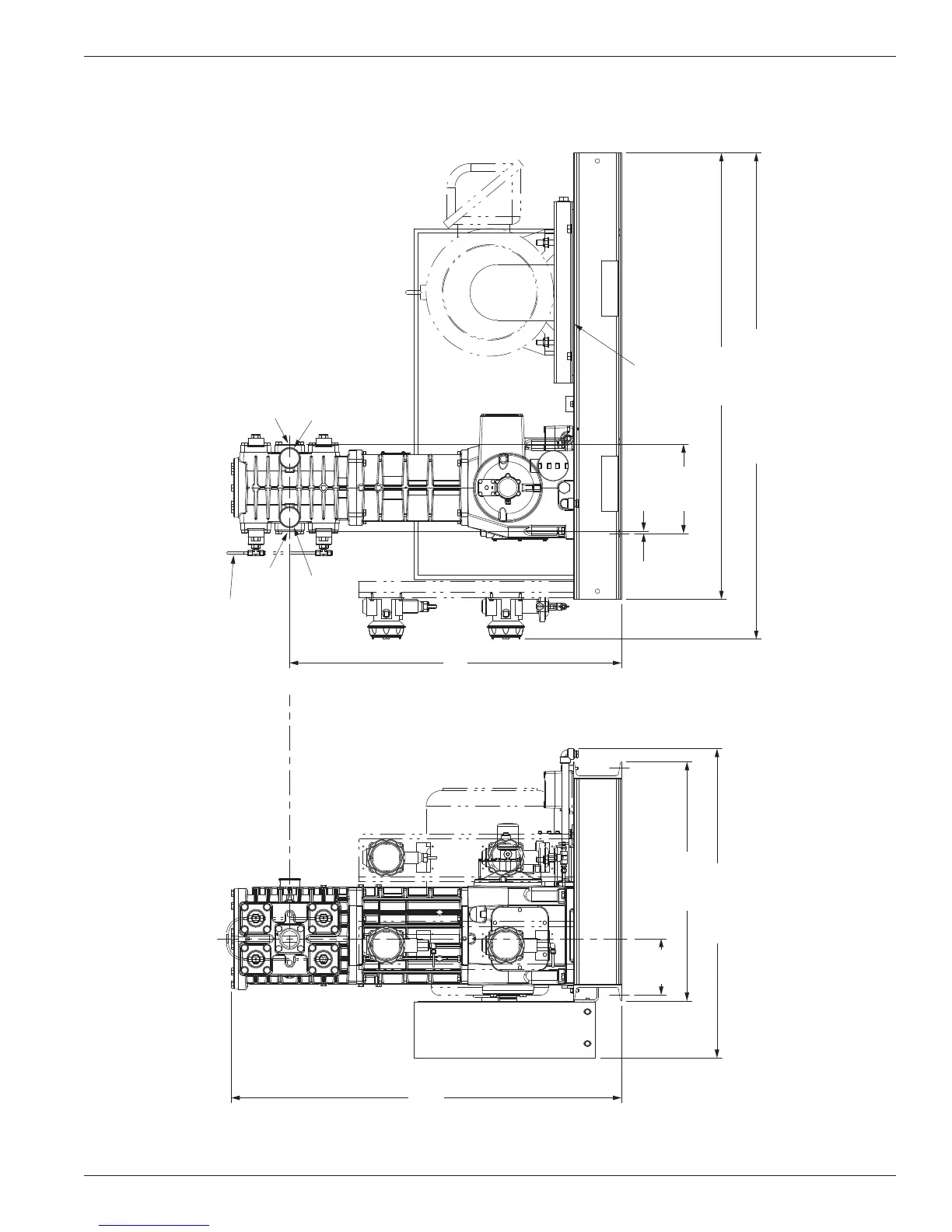

Model D891 with 103 Mounting
56 (1,422)
30 (762)
61 (1,549)
Overall with switch option
38-13/16 (986)
Overall
7-1/16
(179)
41-5/8
(1,057)
48-15/16
(1,243)
overall
11-3 /16
(285)
to outlet
5/16 (7)
to inlet
Outlet:
2" weld
ange
Inlet:
2" weld
ange
Outlet
pressure
gauge
Inlet
pressure
gauge
Suction valve
unloaders
(optional)
Adjustable motor
slidebase
51
