3 Description
3.1 Assemblies and components
The unit comprises the following assemblies:

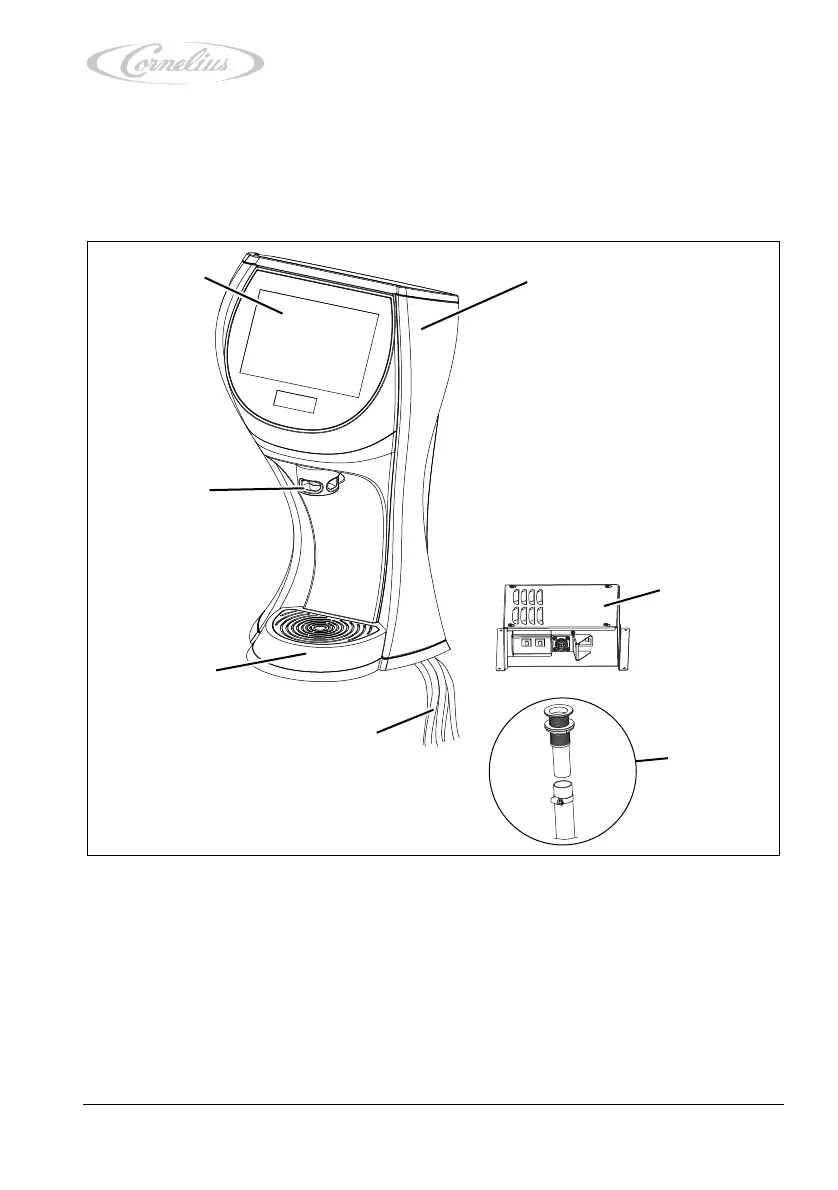

Figure 1
1Touchscreen
2 Housing
3E-Box
4Drain set
5 Tubes
6 Cup rest with drip tray
7 Dispensing nozzle
1
2
4
3
6
7
5
