Removing the driven belt pulley and the CVT transmission belt

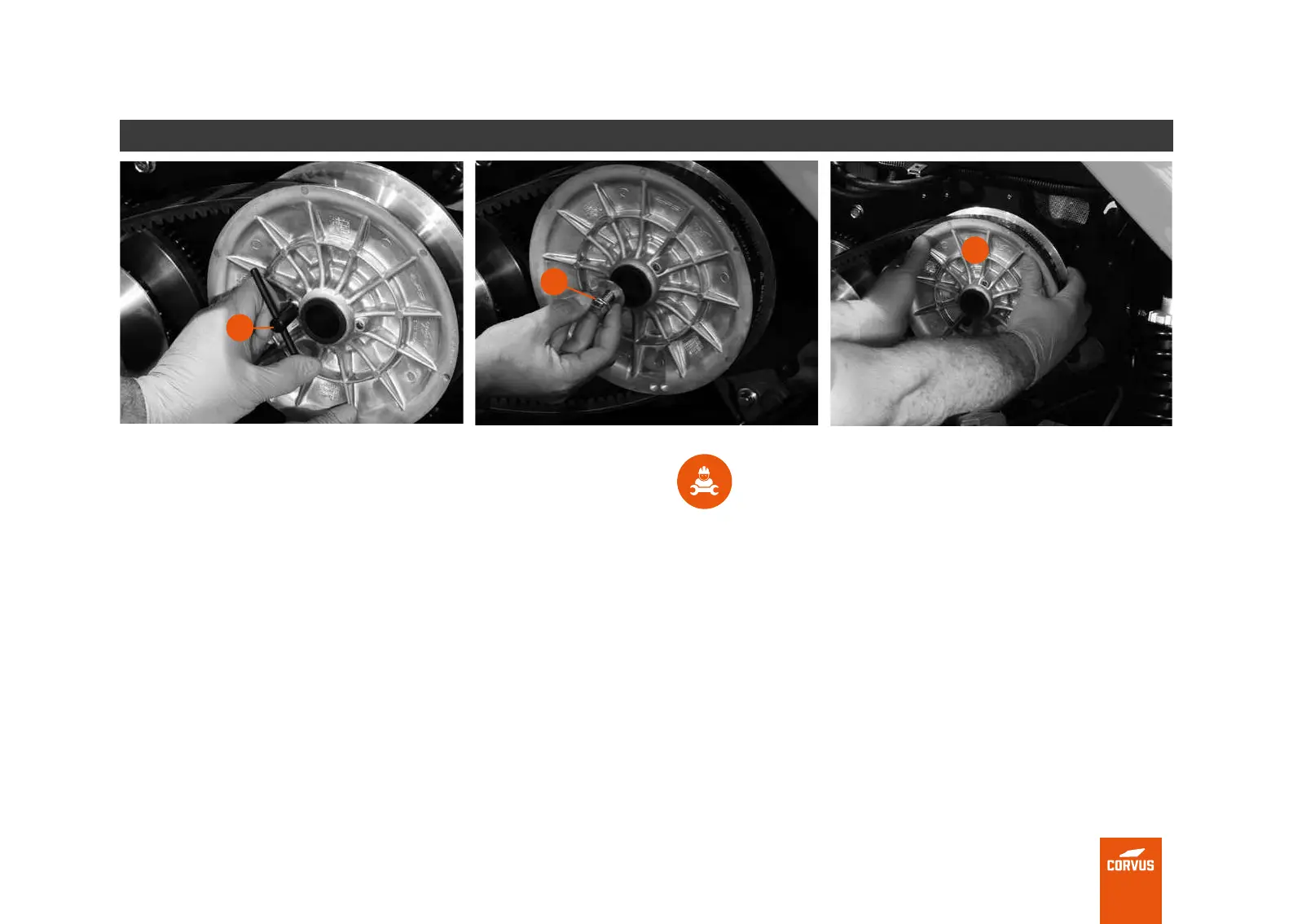

1. Insert the ramp adjusting shim (1) into the threaded hole of
the driven pulley.
2. Screw the tool (1) to open the two ramps of the pulley.
3. Check the condition of the belt and change if it is worn out or
needs to be replaced according to the service chart (see page 39).
4. Loosen the front screw and remove and its washer (2).
5. Remove the driven belt pulley (3) together with the transmission
belt.
6. Remove the shaft key for later assembly.
MAINTENANCE
TECHNICAL INFORMATION:
Plate spacer tool: 03990000021
Transmission belt: 03190010021
Tighten the driven pulley retaining screw to 70 Nm.
