CORVUS TERRAIN DX4 PRO - CVT Drive Belt Pulley Removal

56
Page
WORKSHOP
MANUAL
We reserve the right to modify the product and the design.
MAINTENANCE
Removing the CVT drive belt pulley

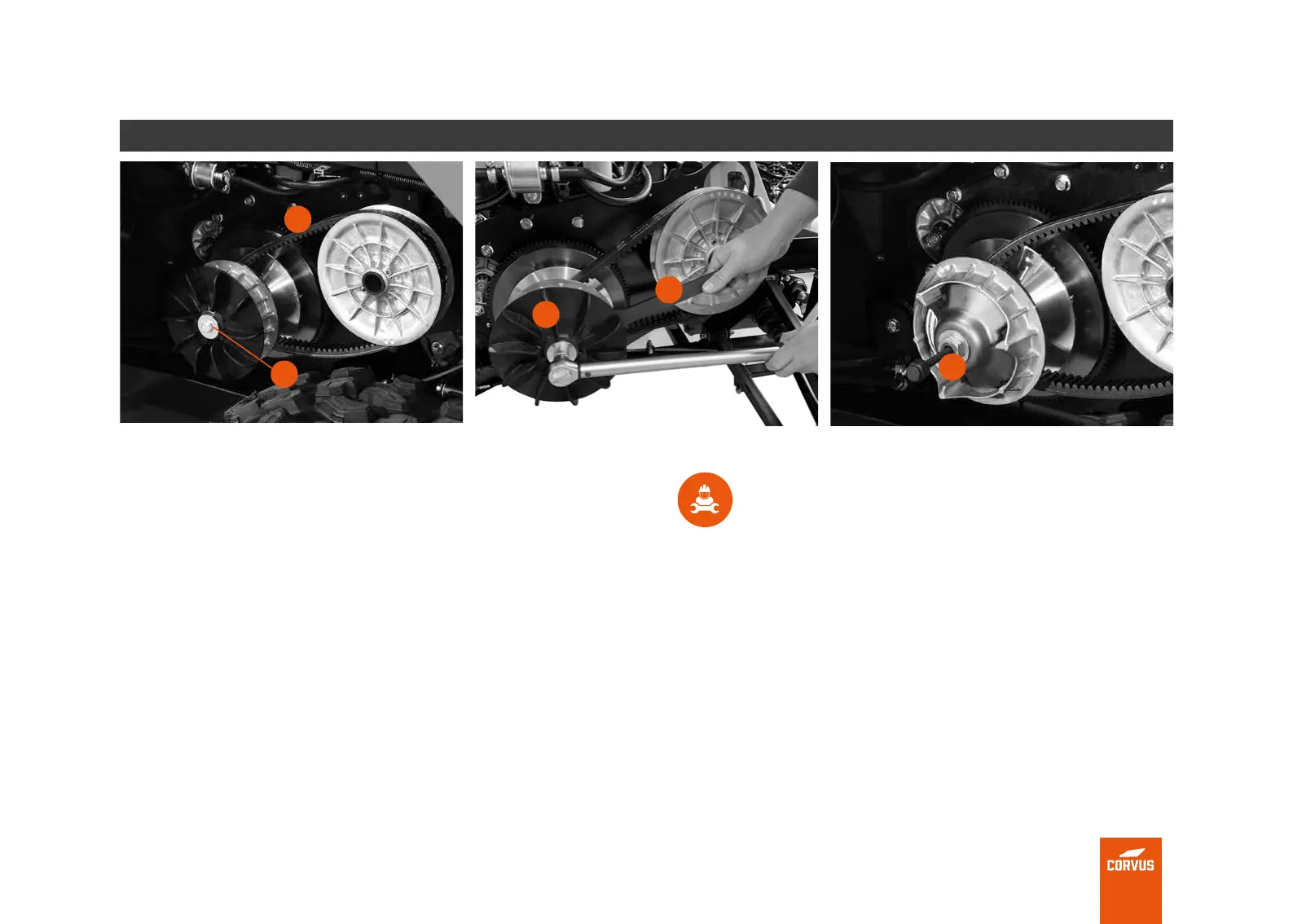

1. Once you have removed the CVT belt (4) (see page 55).
2. remove the bolt and retaining washer (5), using the tool to lock the
pulley (6).
3. Remove the CVT fan (7).
4. Insert the tool (8) to remove the drive pulley until you have
uncoupled it from the engine cone.
TECHNICAL INFORMATION:
Drive belt pulley removal tool: 03990000022
Drive belt pulley locking tool: 03990000023
Pulley retaining bolt torque: 70 Nm
4
8
5
6
7
