WORKSHOP
MANUAL
We reserve the right to modify the product and the design.
MAINTENANCE
WARNING
BE SURE TO NOTE THE POSITION OF THE SPRING
ON THE SLIDING PULLEY AND THE CAM, AS WELL
AS THE ALIGNMENT OF THE CAM WITH RESPECT
TO THE FRICTION BUSHING.
WHEN REINSTALLING THE PULLEY, THE POSITIONS MUST
BE THE SAME AS BEFORE REMOVAL. THIS ENSURES THAT
THE PERFORMANCE OF THE PULLEY IS NOT AFFECTED.
DANGER
USE THE REMOVAL TOOL TO REMOVE THE CAM
FROM THE PULLEY. THE PULLEY IS SPRING-
LOADED WITH A SIGNIFICANT AMOUNT OF FORCE;
USING THE REMOVAL TOOL WILL KEEP THE
PULLEY COMPRESSED.

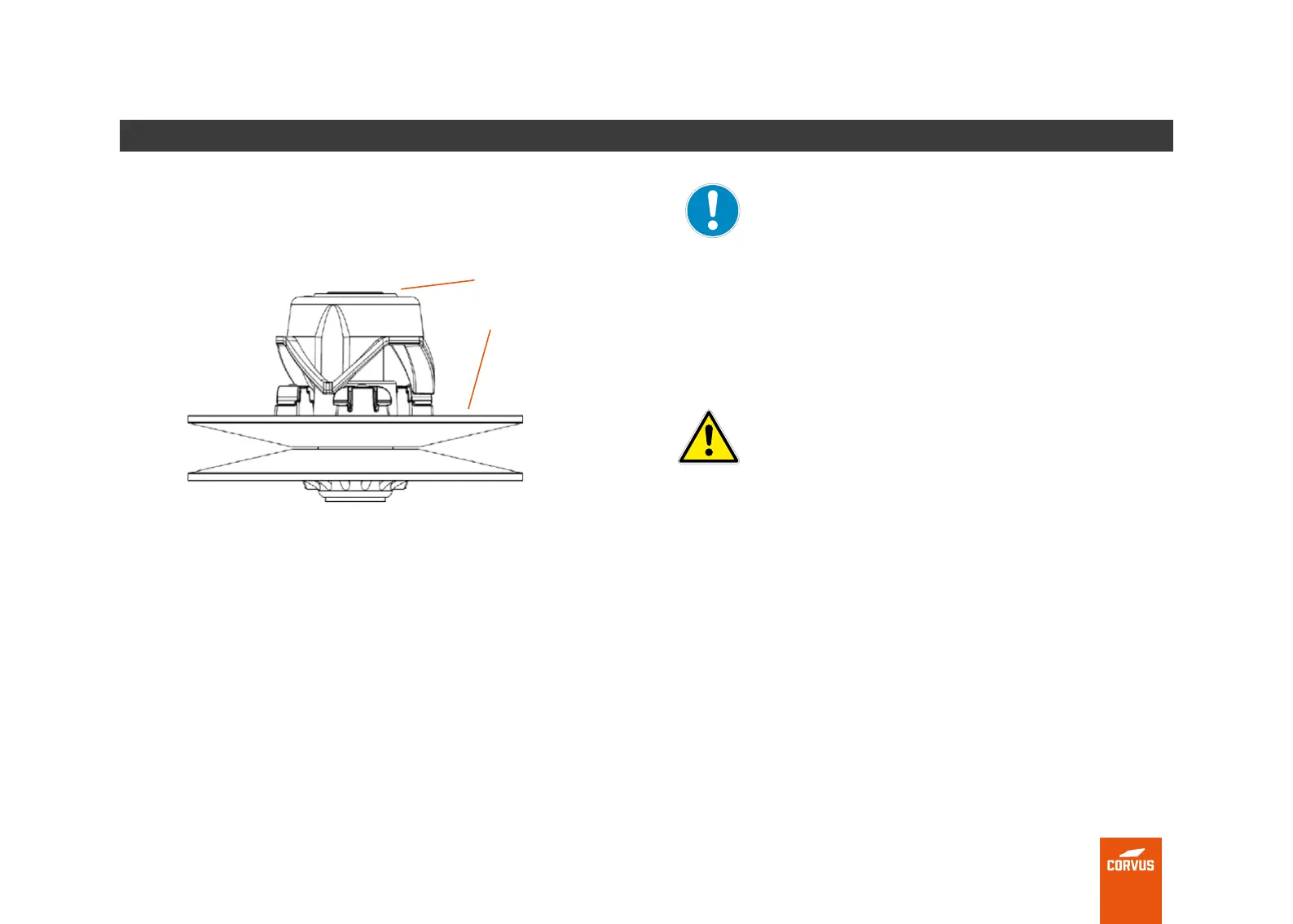

The correct installation of the driven pulley
Position of the spring
on the sliding pulley
and the cam.
