We reserve the right to modify the product and the design.
MAINTENANCE

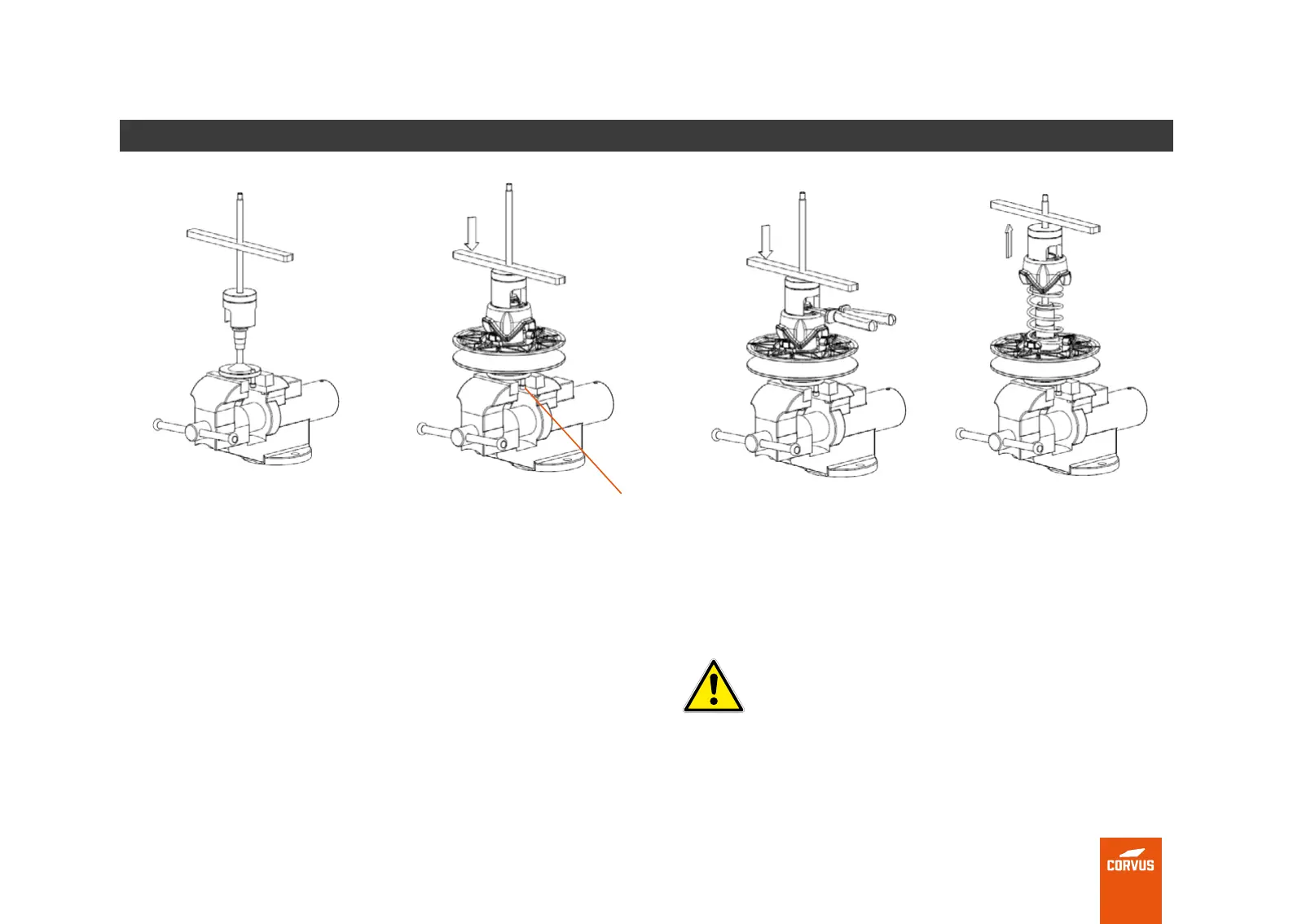

• Using a vise, position the dismantling tool (Ref: 3990000020) and
tighten it to prevent the dismantling tool from turning.
• Press down on the cam (3 to 4 mm maximum) to release the circlip
by screwing the bar into the threaded rod.
• Remove the circlip with suitable pliers.
• Gently unscrew the bar from the threaded rod to slowly release
the spring.
DANGER
SLOWLY RAISE THE CAM TO RELEASE IT FROM
THE SHAFT BY UNSCREWING THE REMOVAL TOOL.
Removing the cam
Rotation lock
