CORVUS TERRAIN DX4 PRO - Steering Wheels Alignment Process

79
Page
WORKSHOP
MANUAL
We reserve the right to modify the product and the design.
0° +/- 0.1°
MAINTENANCE

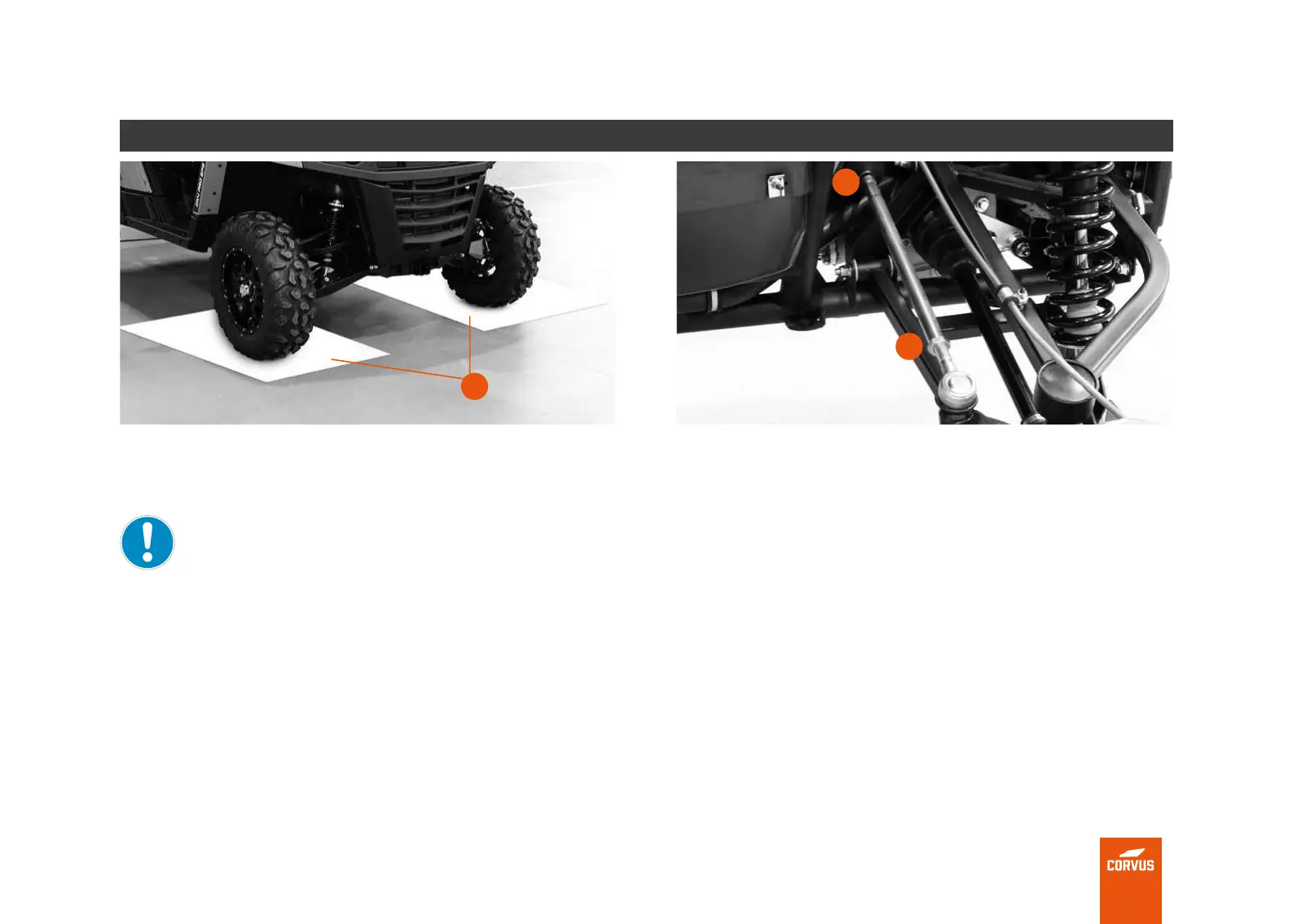

Alignment of the steering wheels.
WARNING
TO FACILITATE THE ALIGNMENT PROCESS, IT IS
ADVISABLE TO FIT METAL SHEETS UNDER EACH
OF THE FRONT WHEELS (1) TO ENSURE MINIMUM
SLIPPAGE.
BEFORE YOU DO THIS, YOU MUST PERFORM STEPS
1 AND 2 OF THE PREVIOUS PARAGRAPH (CHECKING
ALIGNMENT).
Then,
1. Centre the steering wheel.
2. Fix the position of the steering wheel to prevent movement during
the alignment process.
3. Use a wrench to loosen the nut (1) of the two steering braces.
4. From point (2), adjust both sides until they are correctly aligned.
5. Then x the position by using the nuts (1) on both sides.
1
2
