PFpCurvePF2
PF of PF(P) Curve point
2
-1.0,
- 0.8
-0.900
0.8,
1.0
-1.0,
- 0.8
-0.900
0.8,
1.0
PFCurveTriVolt
(%)
The trigger voltage of
PF(P)Curve
100.00
100.00
110.00
100.00
100.00
110.00
PFCurveUndoV
olt (%)
PF curve revocation
voltage
90.00
90.00
100.00
90.00
90.00
100.00
Note: The PF and Q value can be adjusted by remote software if the
“Remote” setting is selected.
1. PFSetValue：Set the PF value. This function changes the reactive
power by adjusting the Power Factor.

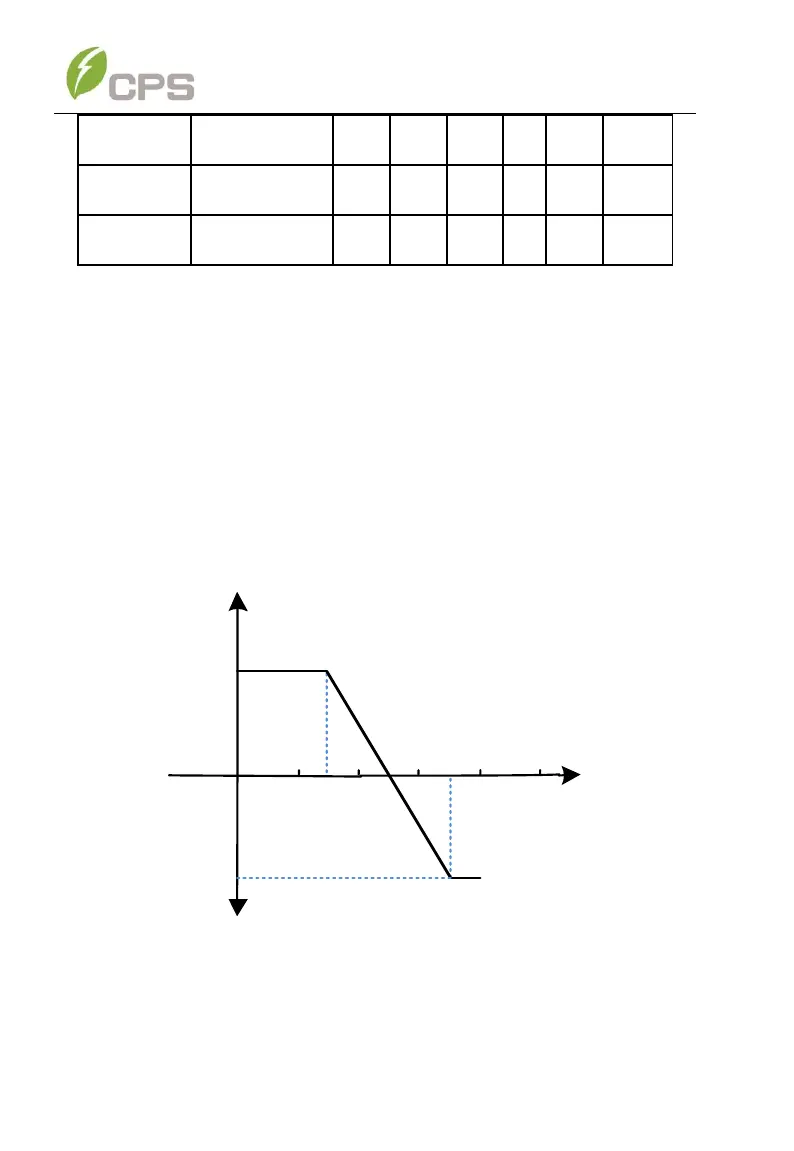

2. PFpCurve functions：PFp curve mode. Using the curves to set the
PFp setpoints (See Figure 6-15). These functions are only available
for IEEE-1547 and Rule21 grid standards.
PF
(P%)
1
(PFCurveP1,PFpCurvePF1)
(PFCurveP2,PFpCurvePF2)
Inductive
Capacitive
-1
-0.8
0.8
Figure 6-15 PF(P) Curve Mode
