4. If the replacement inverter is onhand and to be installed
immediately, skip this step and refer to section 3.2 for installation of
the inverter. Otherwise, use a No. 2 Phillips head screwdriver to
remove the 2 screws on the left side of the wiring box, and remove
the bulkhead cover. Attach the cover on the connector of wiring box.
Torque value: 1.6N.m (14.2in-lbs)

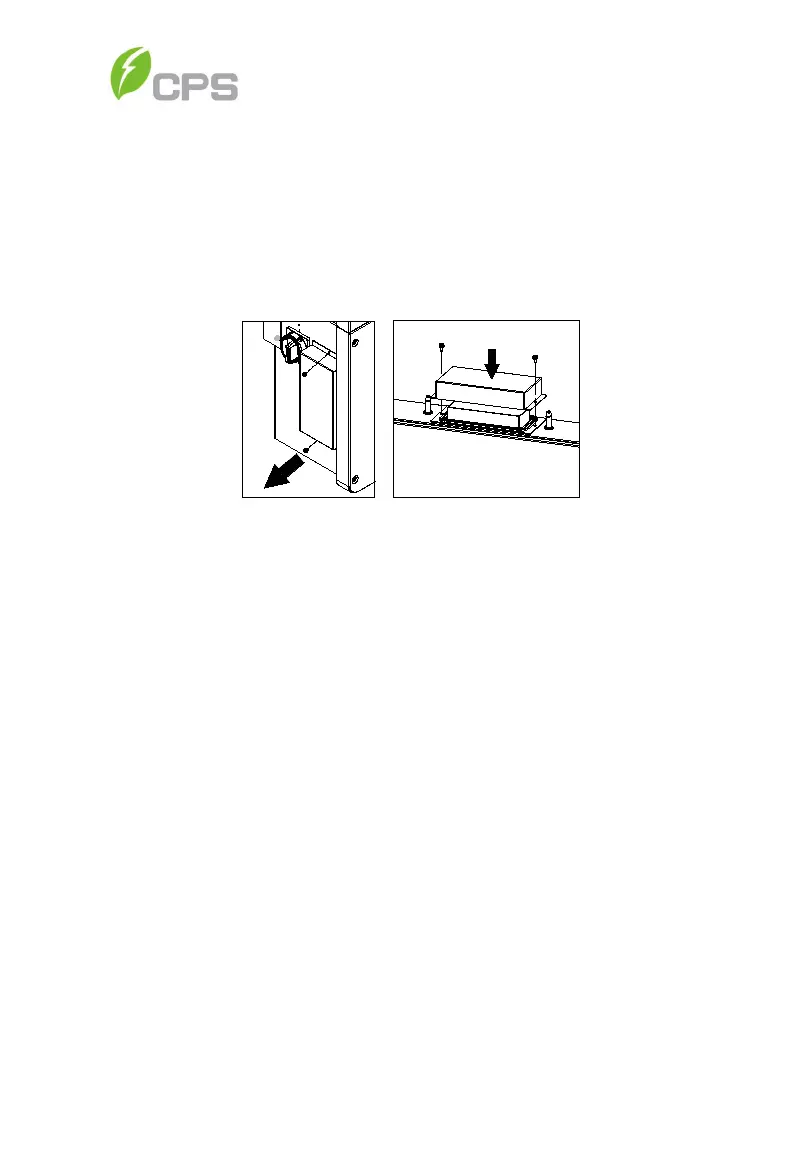

Figure 8-5 Install the cover on the connector of the wiring box
The cover connector does not provide a watertight seal – if inverter
replacement is not immediately available, watertight integrity must be
maintained by method in addition to connector cover.
