4.3 Interface Types
Users can perform the corresponding operations with the 4 function keys,
described in Table 4-2, according to the indications of the LCD display.
The LCD screen will display different interfaces based on the operation
modes of the inverter. There are four operation modes: Logo interface mode
(as shown in Figure 4-2 LOGO Interface), Normal operation and Standby
modes (as shown in Figure 4-3 Default Display Interface for Normal
Operation), and Fault mode (as shown in Figure 4-4 History Record
Interface).

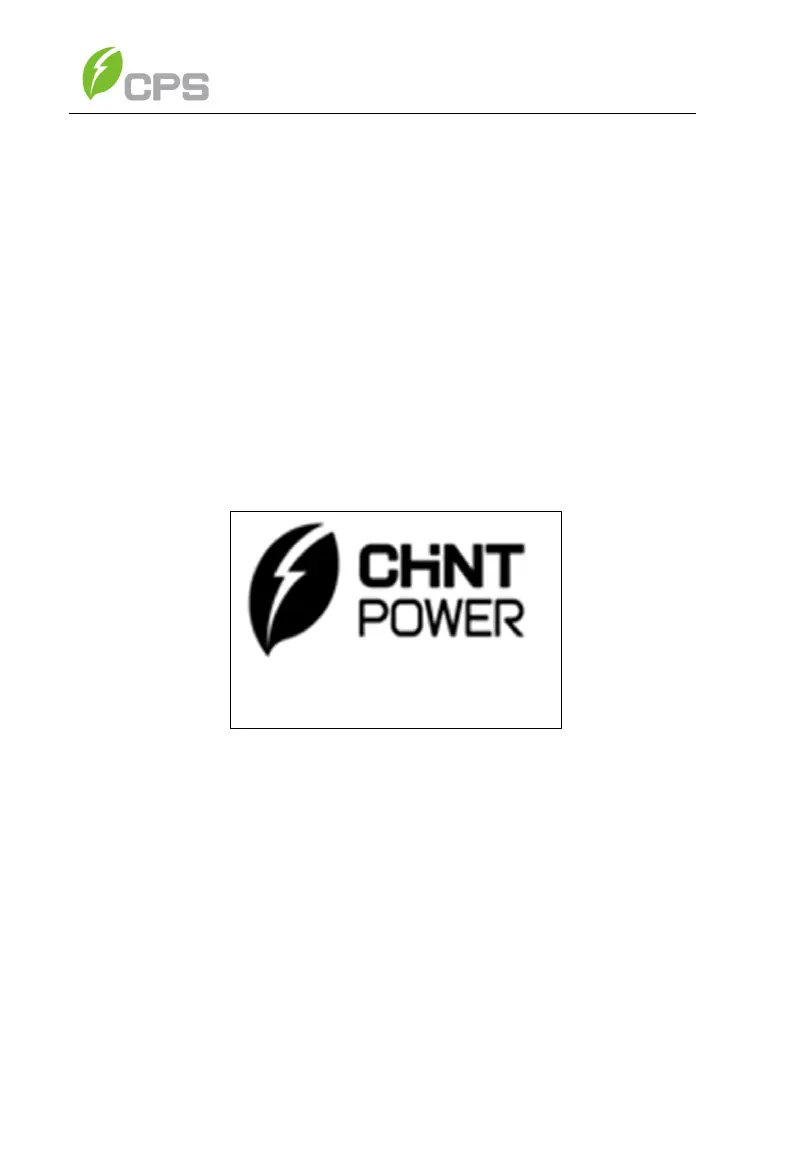

1. The LCD interface starts with the company logo once the system is
energized, as shown in Figure 4-2.
Chint Power System
Initialization
Figure 4-2 LOGO Interface
2. While the inverter is in Normal Operation mode (and not in screen
saver) the interface indicates PV voltage, PV current, Grid voltage,
instant power, daily generated power and time. This is the “Default
Indication Interface.”
