3.4.1 Description of the Communication Board
1 2 3
ON
OFF
S1
5
OFF
ON
+12V
12VGND
RS485_B-
RS485_A+
485_GND
+12V
12VGND
RS485_B-
RS485_A+
RS485_GND
RS485_GND
RS485_A+
RS485_B-
P9
P6
P7
P8
S1
P1
4
only)
1. 12V+
2. 12VGND
3. RS485+
4. RS485-
5. COM
② RS485 P7
(Communcation Input)
1. 12V+
2. 12VGND
3. RS485+
4. RS485-
5. COM
③ RS485 P9
(Communcation Output)
1. RS485+
2. RS485-
3. COM
④ USB Port P6:
Firmware upgrade
⑤ Selector Switch (S1):
120Ω terminal resistor
switch for communications.
1. ON: Enable termination
resistance
2. OFF: Disable

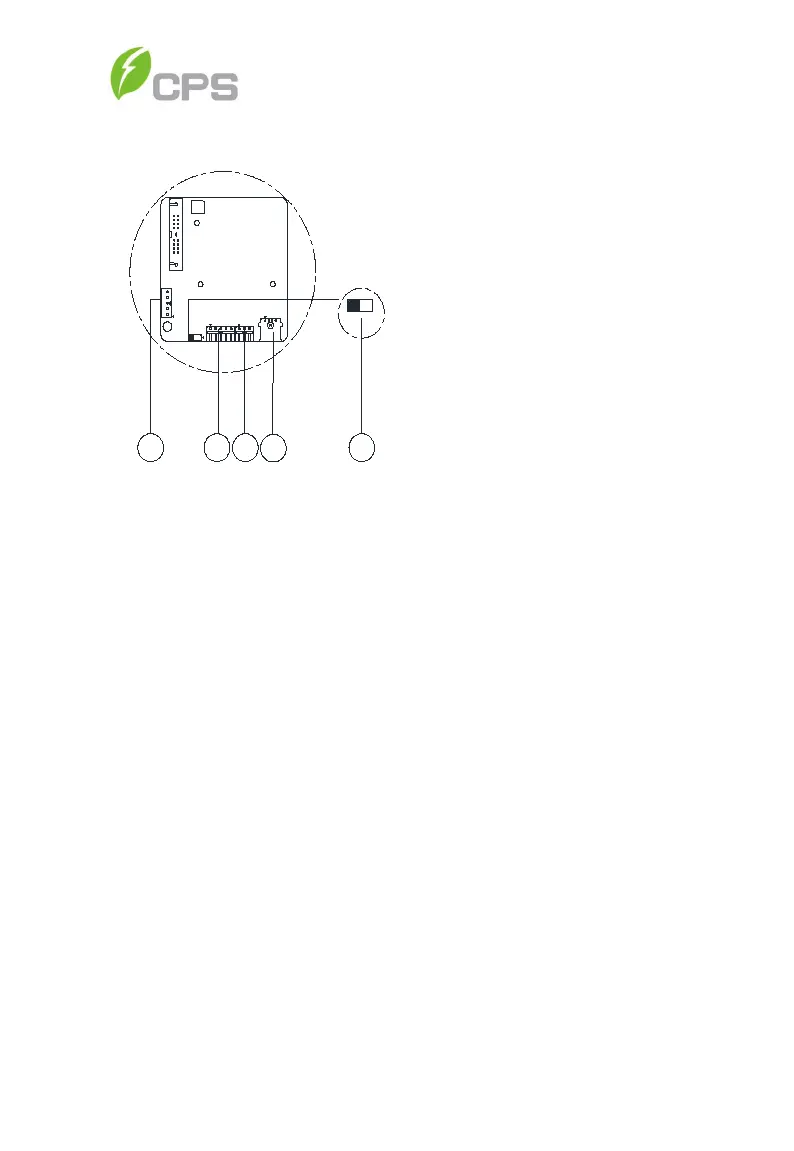

Figure 3-32 Communication Connection Interfaces
3.4.2 RS485 Communication
CPS recommends the following cable for inverter RS485 communications:
CAT-5e or (3) 18-22AWG communication cables.
It is recommended that industrial grade shielded twisted pair RS485 cable
be used in lieu of unshielded twisted pair. Communication cable such as
(CAT5e) or Belden 3106A cable for RS485 5 pin connector is preferred.
