3.2 Mechanical Installation
3.2.1 Dimensions

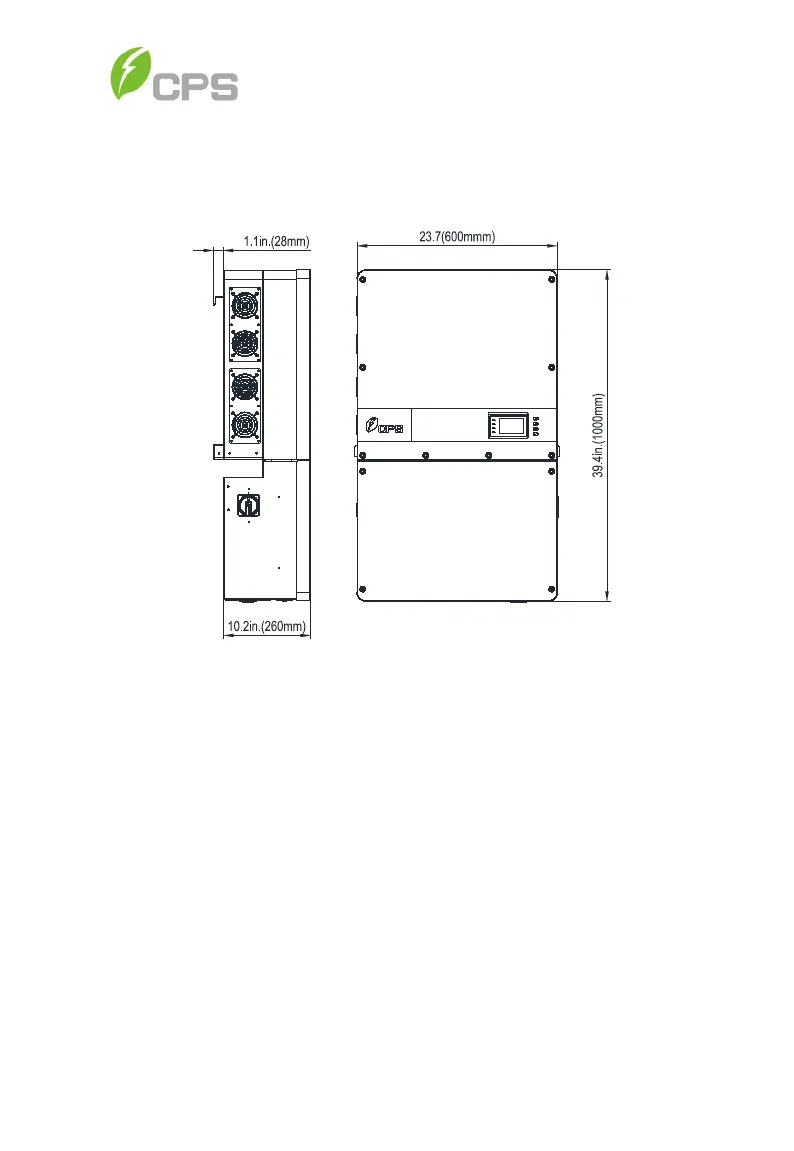

Figure 3-1 Dimensions of Inverter
3.2.2 Installation Method (see Figure 3-2)
Ensure that the mounting structure (wall, rack, roof, etc) is suitable to
support the weight of the inverter. Follow the mounting guidelines below:
(a) If the location permits, install the inverter mounted vertically.
(b) If the inverter cannot be mounted vertically, it may be tilted
backward at any angle from vertical to 15° from horizontal.
(c) When tilted backward at ≤75° from horizontal in an outdoor
environment, the CPS Shade Cover (SSC-60ST) accessory is
required to be installed. See Section 9.2 for more information.
(d) Do not mount the inverter leaning forward.
(e) Do not mount the inverter upside down.
