10.3 Production Graphs
The following sections illustrate the inverter production/derating in terms of
ambient temperature, altitude and grid voltage.
10.3.1 High Temperature Derating Graph
When the ambient temperature is higher than 113℉ (45℃), the inverter
output power (Pn) will begin to derate, as shown in Figure 10-1:
Pin/
Pn
Tamb(℃)
45 60
100
%
80
%
60%
40%
20
%
-3
%/℃

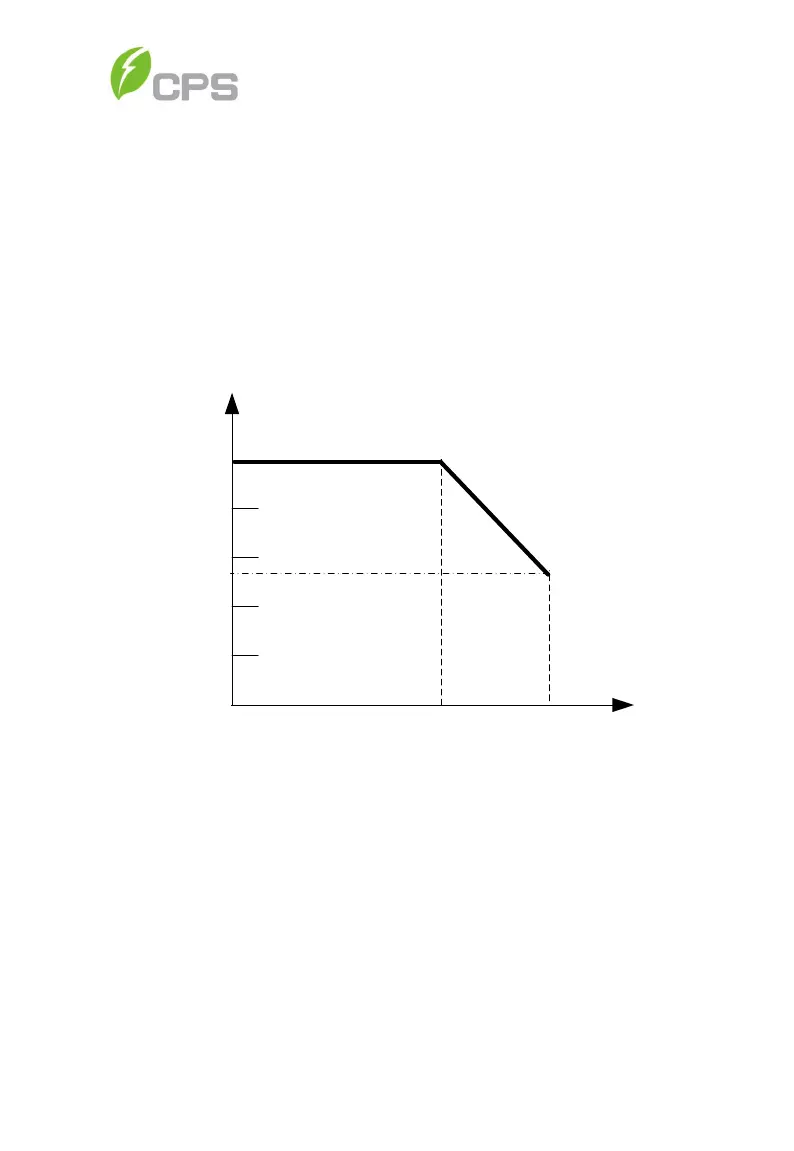

Figure 10-1 SCA50/60KTL Derating Curve with High Temperature
