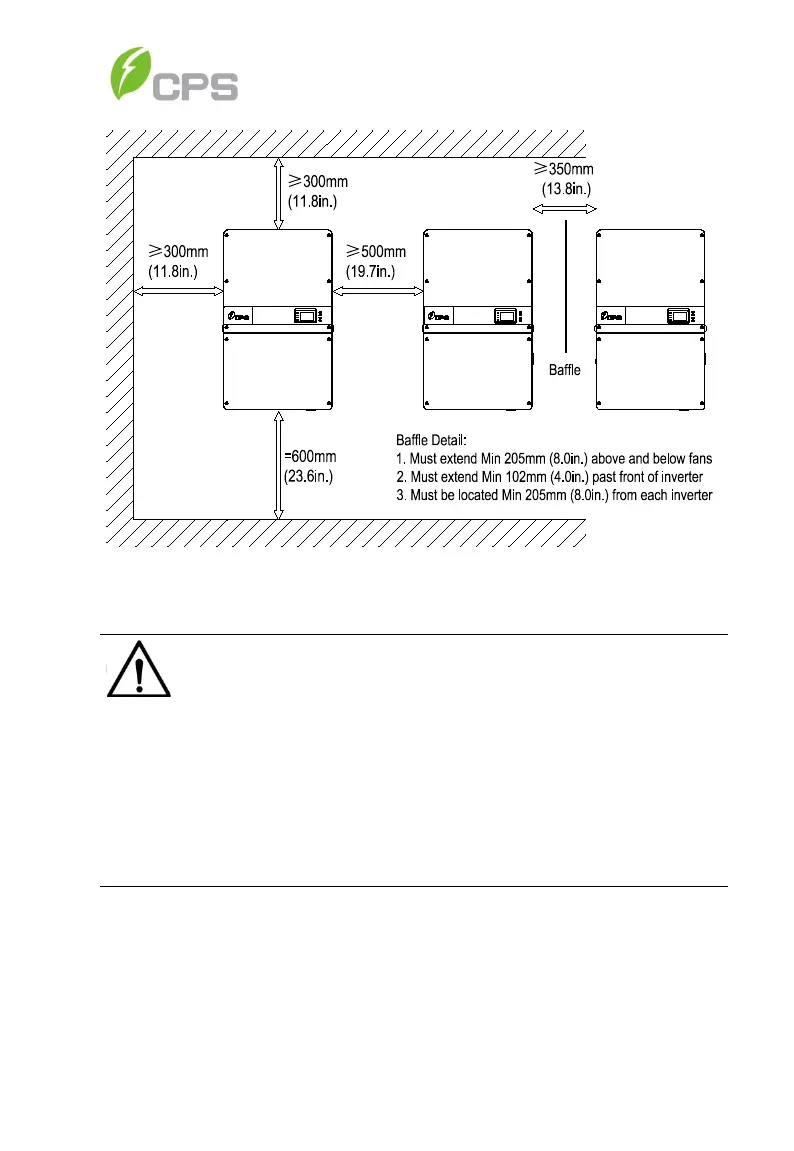

Figure 3-4 Inverter Wall Mounting Baffle Details
NOTICE:
Ensure that the air space around the inverter is well ventilated. The
spacing between two adjacently wall mounted inverters may be
reduced to ≥13.8in (350mm) provided a baffle is installed. Installing
an aluminum or galvanized steel baffle (Not supplied by CPS) with
the dimensions detailed above is intended to divert or deflect warm
exhaust air from entering the adjacent inverter. Elevated ambient air
temperature ≥ 45°C will cause the inverter to enter a thermal
derating mode and reduce its Active power output.
