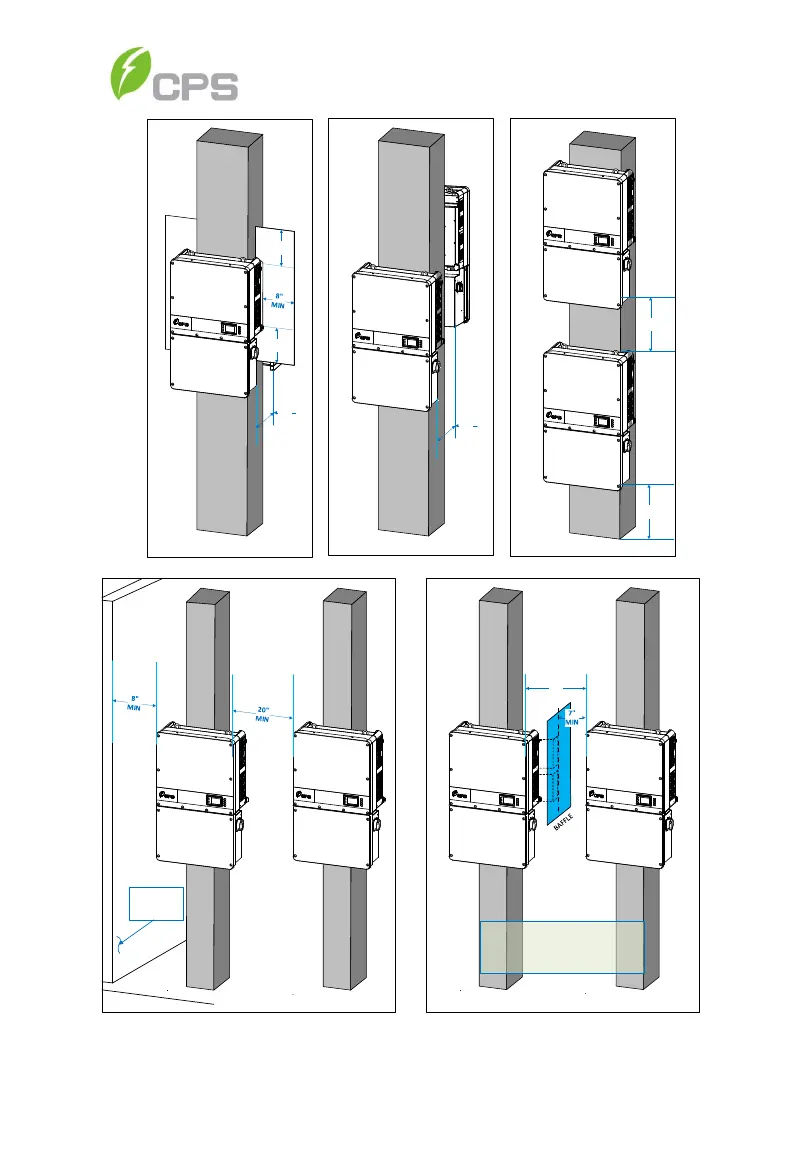

CPS SCA60KTL-DO/US-480 - Page 36

29
8"
MIN
8"
MIN
12"
MIN
BAFFLE
BAFFLE
12"
MIN
12"
MIN
12"
MIN
A)
B)
C)
D)
E)
14"
MIN
BAFFLE M UST:
1. EXTEND 8” MIN. AB OVE AND BE L OW FANS
2. EXTEND 4" MIN. PAST FRONT OF INVERTER
3. L O CATED 7" MIN. FROM BOT H INVERTER S
WALL OR
PASSIVE
CABINET
