67
Advanced operations

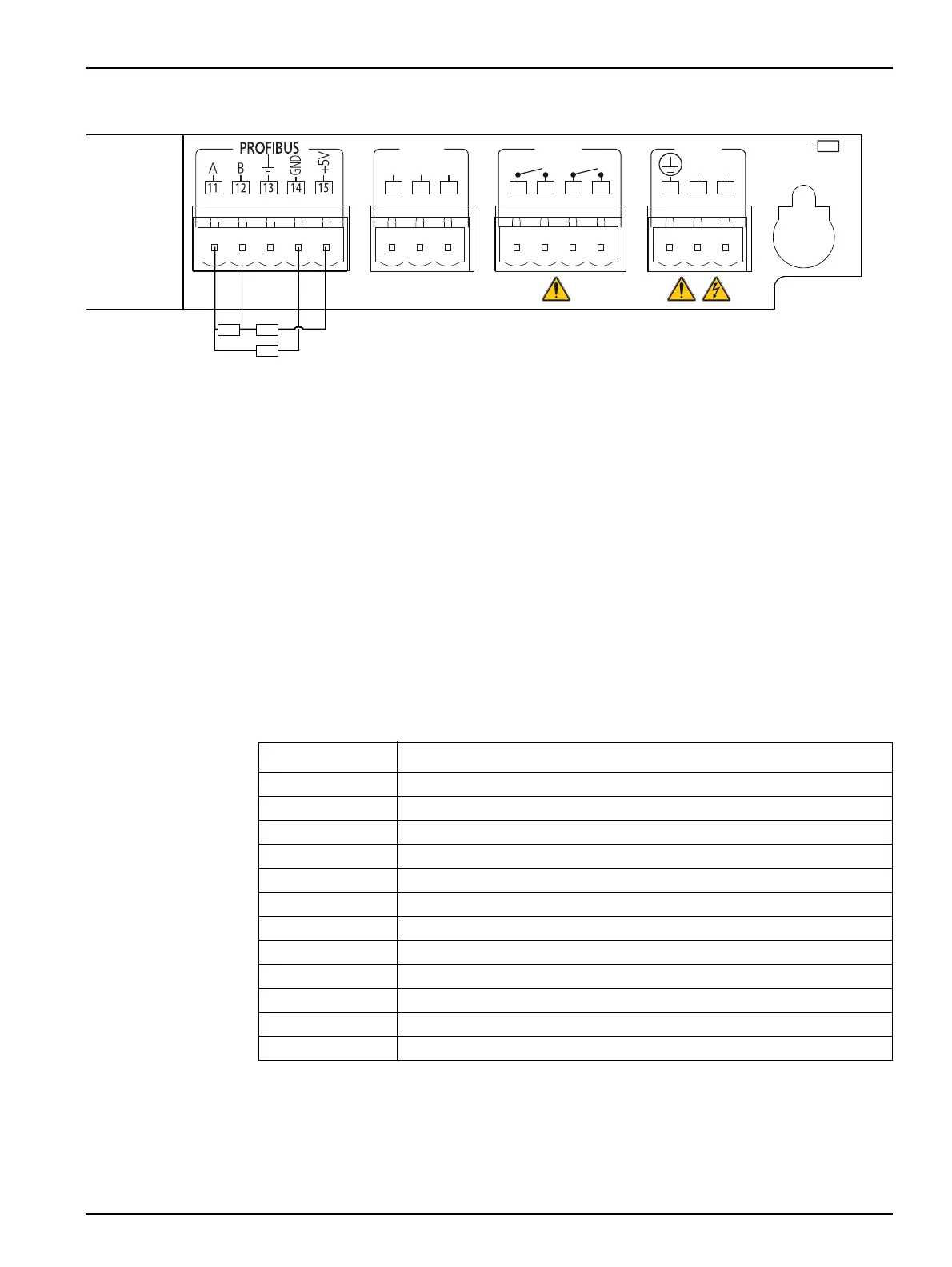

Figure 32 PROFIBUS channel
MultiMeter 44 does not have internal terminator resistors. For this reason, resistors should
be installed on the communication cable of the last instrument, as indicated in Figure 32.
5.3.2 Sent data
Every channel sends the following information:
• Channel status (1 byte) Information about the status of relays, alarm, etc.
• Units (1 byte).
• Measured value (4 bytes).
• Temperature, ºC (4 bytes).
The size of the sent data block is 30 bytes.
5.3.3 Factory programming
MultiMeter 44 sends the data in the following order:
5.3.4 PROFIBUS programming
1. From the main menu select SYSTEM > CONFIGURE INSTRUMENT. Confirm.
2. Select CONFIGURE PROFIBUS and confirm.
3. The user has the following possibilities:
220 1 390 1
390 1
RS 232 Relays
NL
Mains
Fuse
110/230V: T100L 250V
24V: T500L 250V
8910
GND
TxD
RxD
Alarm Cleaning
123 4567
Table 5-1Memory Map
Address byte Data
0 Channel 1 status
1 Measuring units in Channel 1
2 Measured value with Channel 1
6 Temperature Channel 1
10 Channel 2 status
11 Measuring units in Channel 2
12 Measured value with Channel 2
16 Temperature Channel 2
20 Channel 3 status
21 Measuring units in Channel 3
22 Measured value with Channel 3
26 Temperature Canal 3
